12

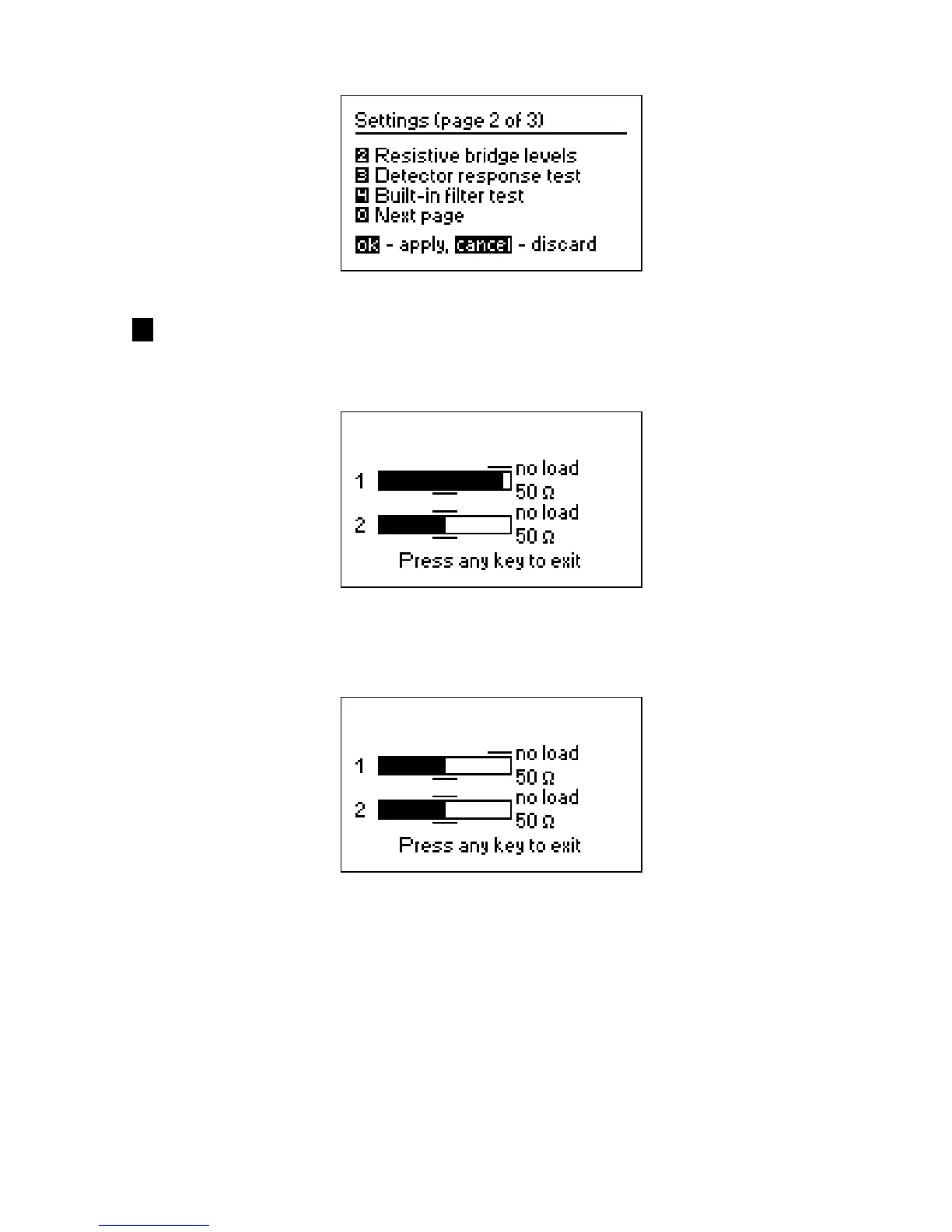

2 – RF bridge test. With no load at the antenna connector, the display should look
like shown on the picture:
For the 50-Ohm load, the filled bars should stand at corresponding positions (notice
the “no load” and “50 Ω” marks):
If the bars are not filled at all, the RF output stage or/and the detector are not working
properly in the analyzer.
