RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
3-9
6. Edit the Waveform Points.
Edit the Voltage and Time of the points to define a waveform. Insert or delete the
point If needed.
Press Points , use the knob or the keypad to shift among the different point. The
voltage and time of the points are defined below in table 3-1.
Table 3-1 The Setting of Time and Voltage of the points
Point Time Voltage
1 0s 0V
2 4μs 4V
3 8μs 0V
4 10μs -2V
7. Save the Waveform.
Press Save , to store the waveform in one of the 4 Non-Volatile Memories.
Press Store , to store the finished waveform in the Volatile Memory. Only one
self-built waveform can be stored. If a new one is stored, the old one will be
erased.
The waveform is generated by the steps above. The waveform is shown in figure
3-8.

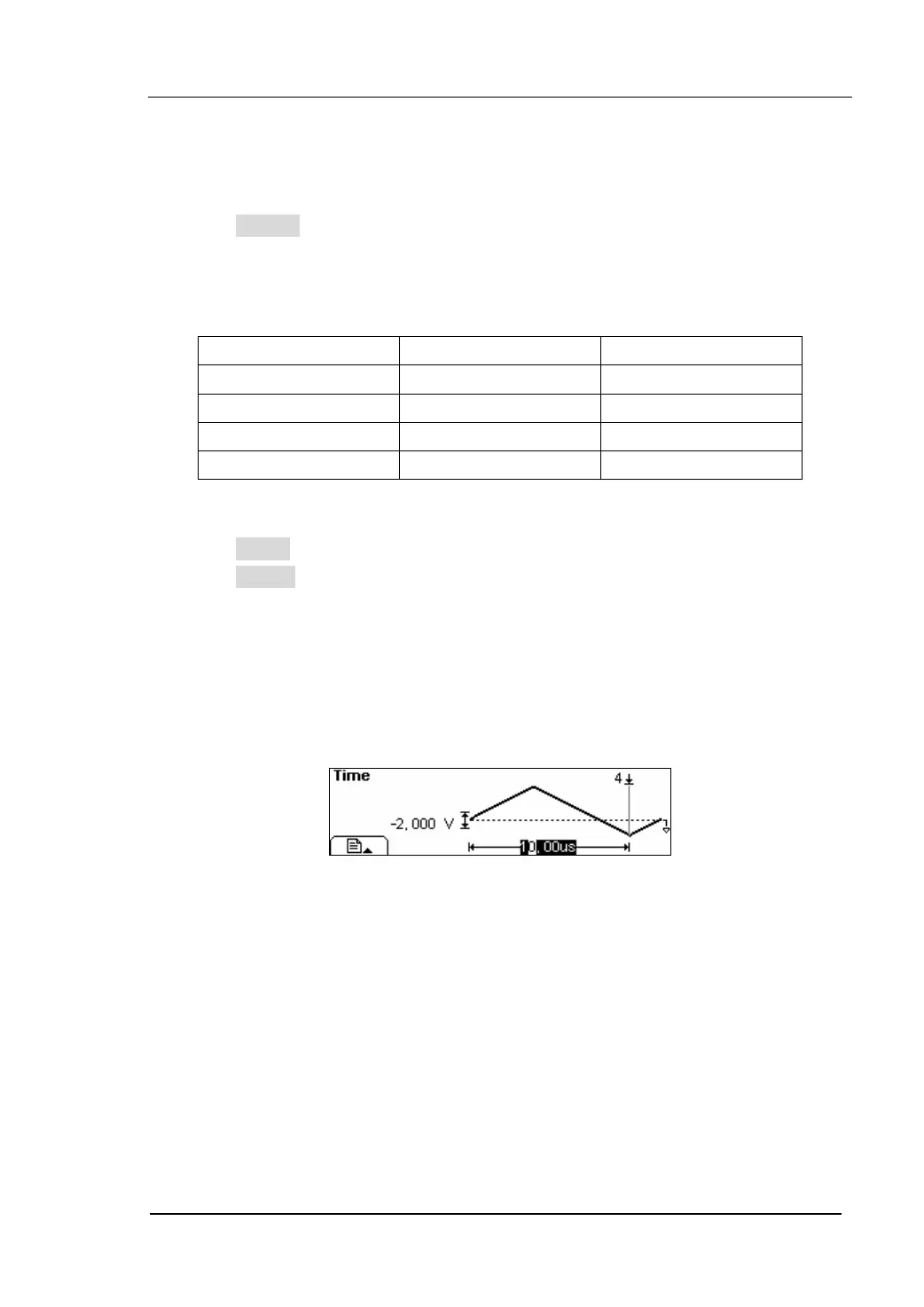

Figure 3-8 The Self-Defined Ramp Waveform
