User’s Guide for DG2000 Series
2-12

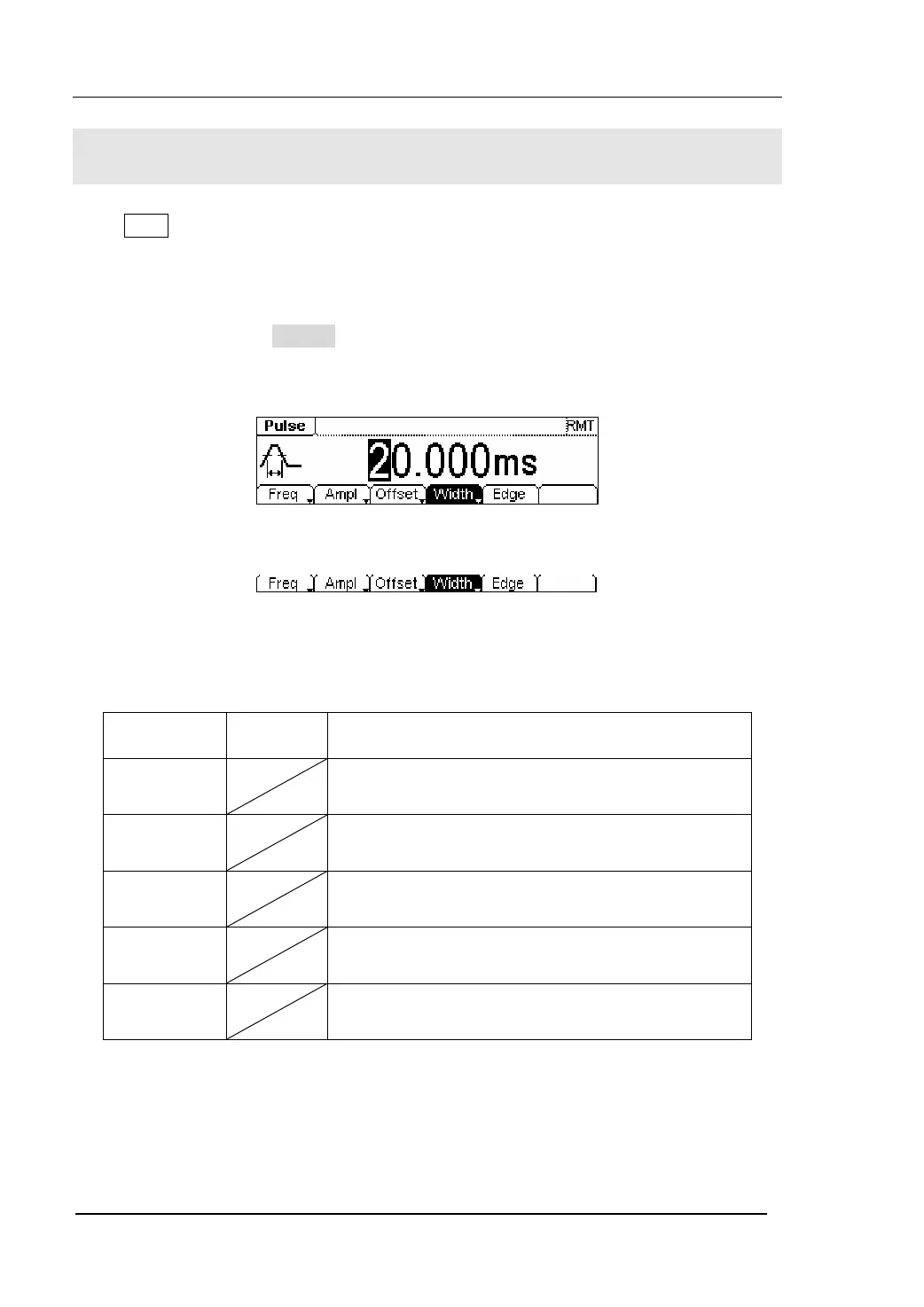

To Set Pulse Signals
Press Pulse button, in the Normal Mode, the operation menu will appear at the bottom
of the screen, see figure 2-17. Set the Pulse parameters by using the operation menu.
The parameters for Pulse waveforms are: Frequency/ Period, Amplitude/ High Level,
Offset/ Low Level, Pulse Width/Duty Cycle and Edge Time. See figure 2-18. In the
operation menu, select Width , and the corresponding parameter will be displayed in
inverse color for which users can make a change.
Figure 2-17 The Setting Interface of Pulse Signal
Figure 2-18 The Operation Menu
Table 2-4 The Menu Explanations of Pulse Signal
Function
Menu
Settings Explanation
Frequency/
Period
Setting the signal frequency or period; the current
parameter will switch at a second press.
Amplitude/
High Level
Setting the signal Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal Offset or Low Level; the current
parameter will switch at a second press.
Width/
Dty Cyc
Setting the signal Pulse Width or Duty Cycle; the
current parameter will switch at a second press.
Edge Setting the Edge Time for Pulse Waveform.
