User’s Guide for DG2000 Series
1-14
To Use Digital Input
As shown in figure 1-21, there are two groups of buttons on the operation panel,
which are the direction button, the knob and the keypad. The instruction below will
help you familiarize with the Digital Input Function.
(1) Direction Key and the Knob (2) Keyboard

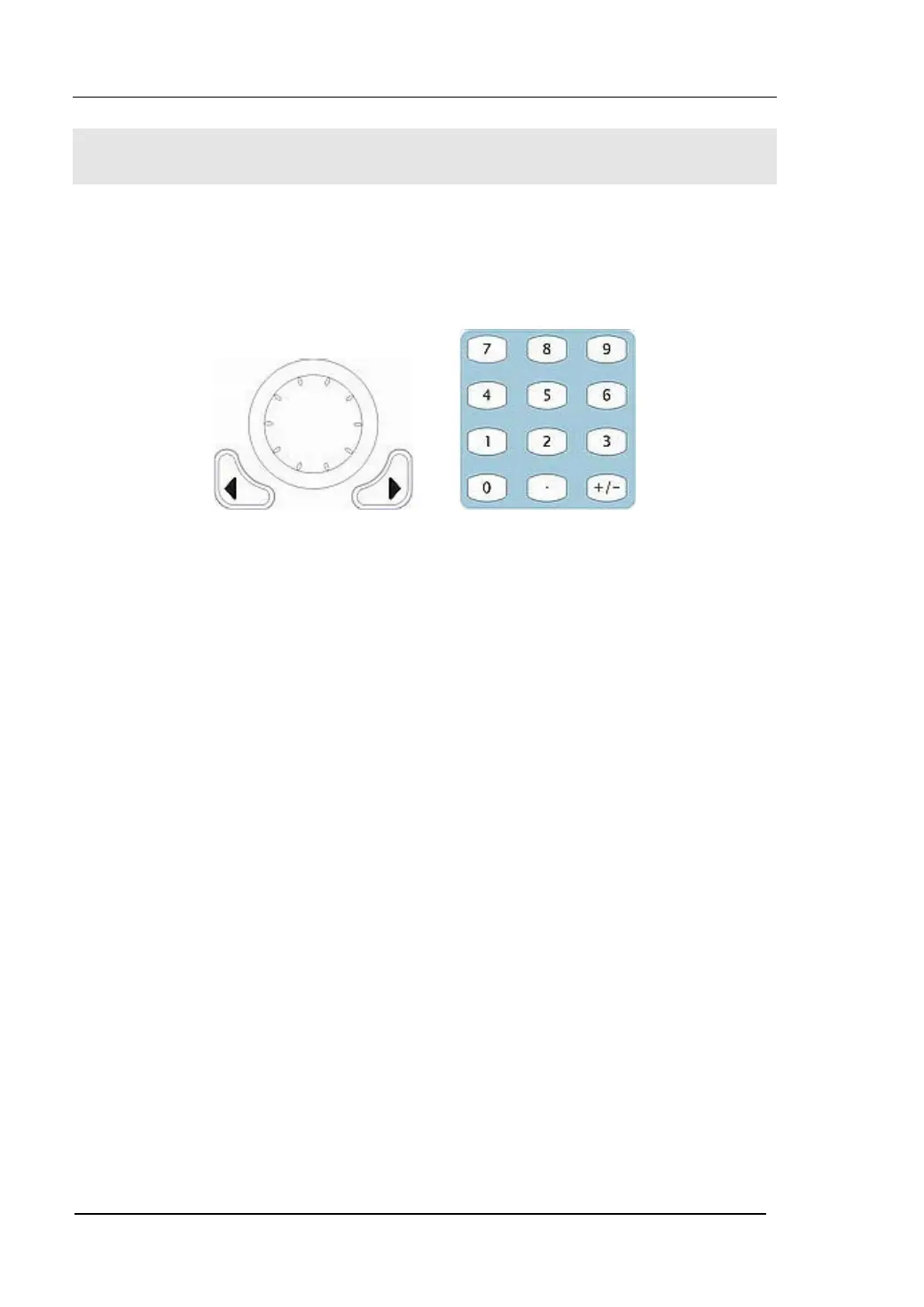

Figure 1-21 The Front Panel Digital Input
1. Use the Direction keys to move the cursor left or right. Rotate the knob to change
a digit (clockwise to increase 1), and the range of digit is 0~9.
2. Use the Keypad to set the parameters values of the waveforms, which can change
its value directly.
