User’s Guide for DG2000 Series
2-7

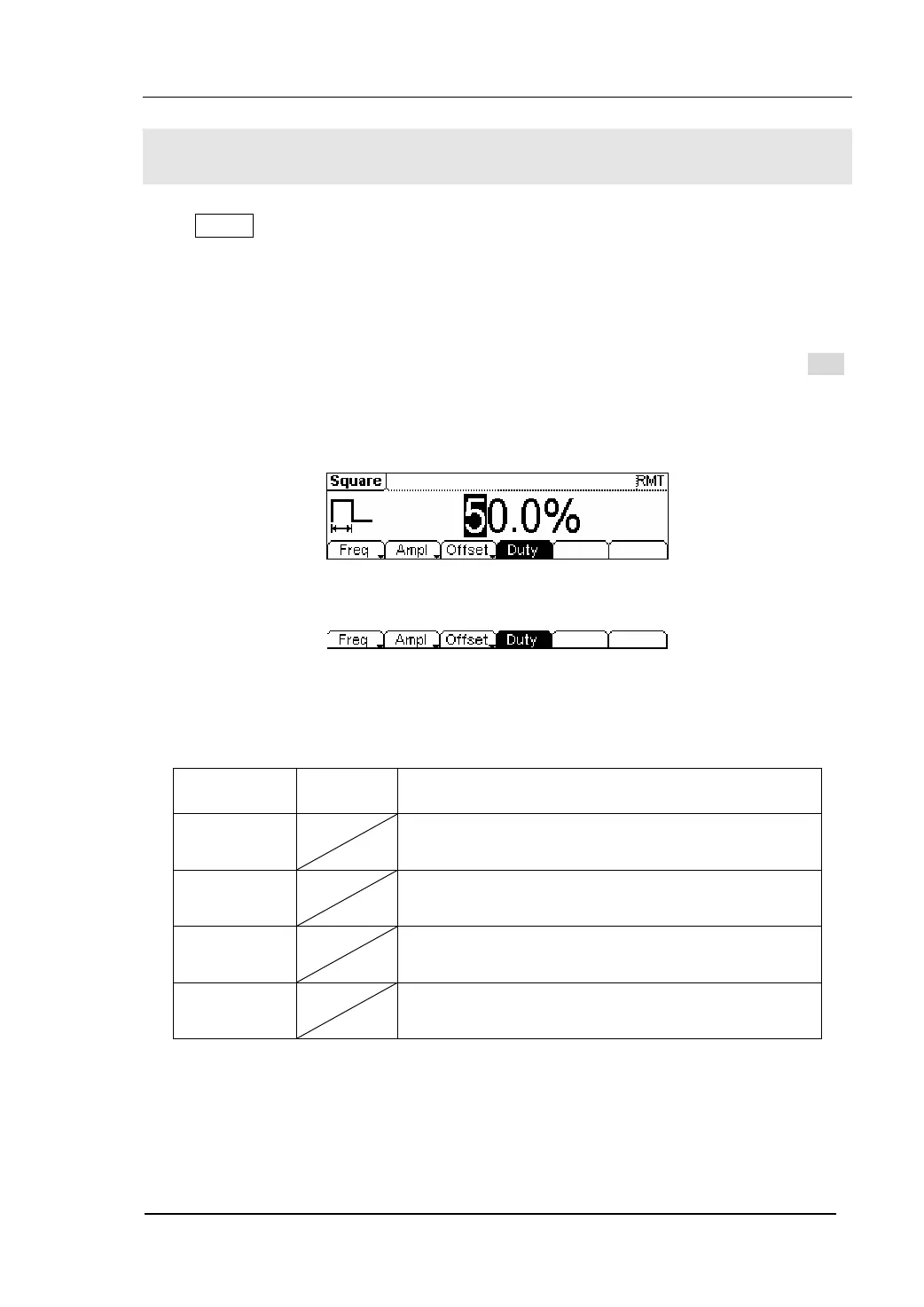

To Set Square Signals
Press Square button, in the Normal Mode, the operation menu will appear at the
bottom of the screen, see figure 2-9. Set the Square parameters by using the
operation menu.
The parameters for Square waveforms are: Frequency/ Period, Amplitude/ High Level,
Offset/ Low Level and Duty Cycle. See figure 2-10. In the operation menu, select Duty,
and the corresponding parameter will be displayed in inverse color for which users can
make a change.
Figure 2-9 The Setting Interface of Square Signal
Figure 2-10 The Operation Menu
Table 2-2 The Menu Explanations of Square Signal
Function
Menu
Settings Explanation
Frequency/
Period
Setting the signal frequency or period; the current
parameter will switch at a second press.
Amplitude/
High Level
Setting the signal Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal Offset or Low Level; the current
parameter will switch at a second press
Duty Cycle Setting the Duty Cycle for Square Waveform
