To Set the DC Offset
1. Press Sine Æ Offset/LoLev Æ Offset , to set the offset.
The offset shown on the screen is the default value when the instrument is
powered or the set value beforehand. When changing the function, if the current
value is valid for the new waveform, it will be used sequentially.
2. Input the Desired Offset
Use the keypad or the knob to input the desired value, choose the unit, and press
the corresponding button.

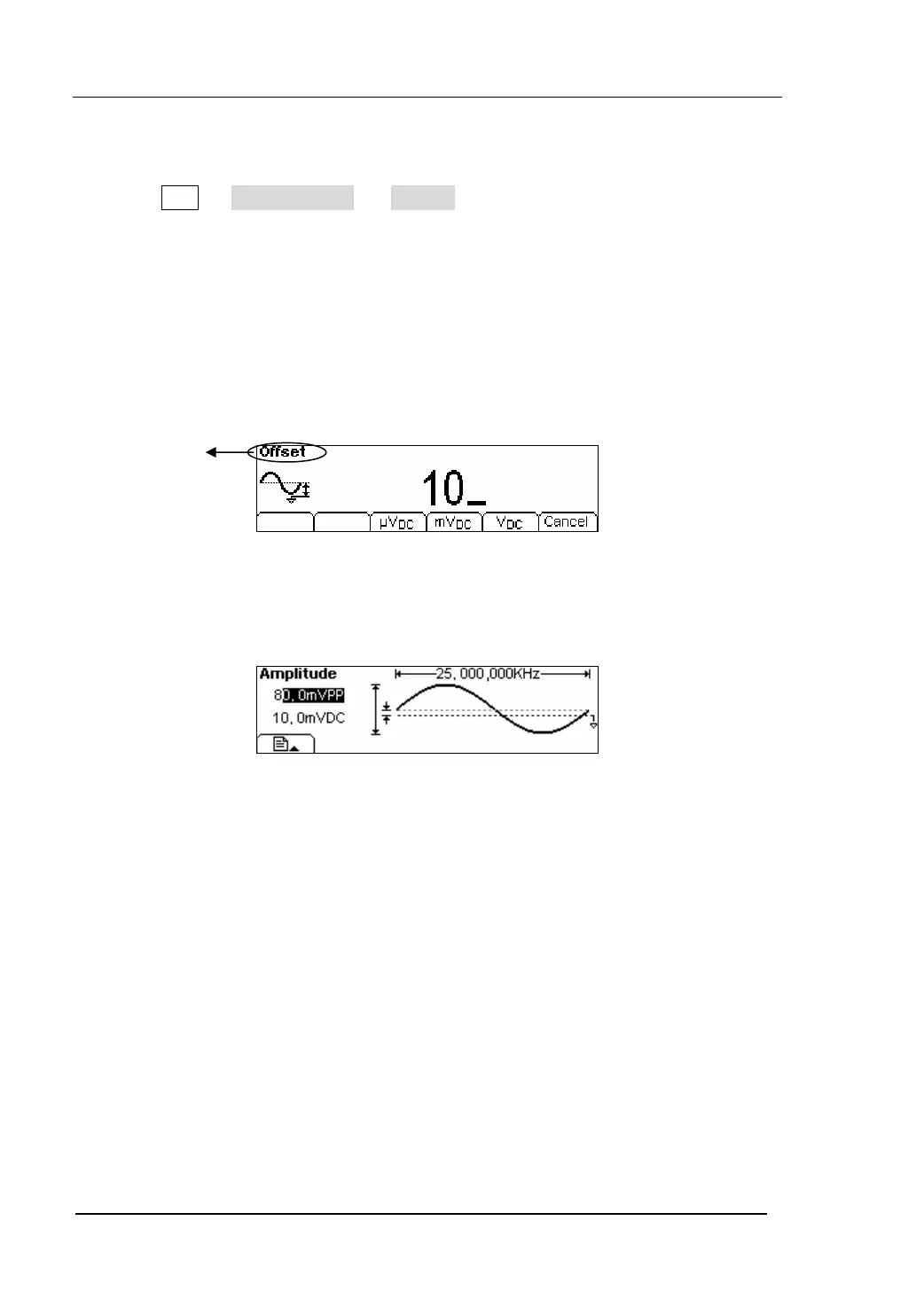

Figure 2-7 Setting the Offset
In the Graph Mode, the waveform is shown in figure 2-8.
Figure 2-8 The Waveform Parameter in the Graph Mode
Notes: the Setting of any waveform for DC Offset is the same as sine wave, so we will
not cover this topic hereon.
