User’s Guide for DG2000 Series
2-5
To Set the Output Amplitude
1. Press Sine Æ Ampl/HiLev Æ Ampl , to set the amplitude.
The amplitude shown on the screen is the default value when the instrument is
powered or the set value beforehand. When changing the function, if the current
value is valid for the new waveform, it will be used sequentially. If you want to set
the waveform by high Level or Low Level, press Ampl/HiLev or Offset/Lolev
again, switch to HiLev or LoLev parameter (The current operation is
displayed in inverse color).
2. Input the Desired Amplitude
Use the keypad or the knob to input the desired value, choose the unit, and press
the corresponding button.

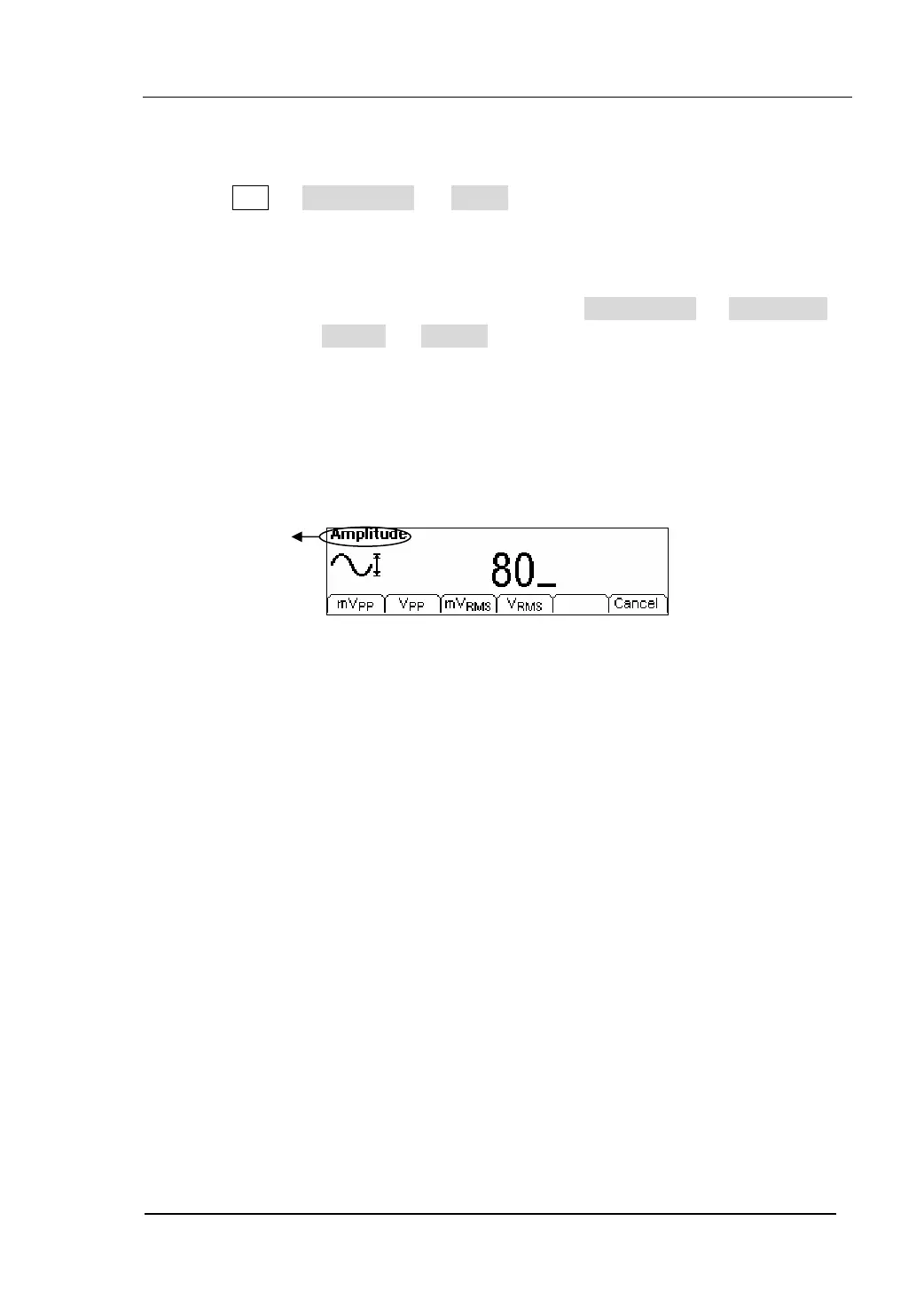

Figure 2-6 Setting the Amplitude
Current
Parameter:
Amplitude
To Next Page
