Rigol DG2000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
2-4
To Set the Output Frequency/Period
1. Press Sine Æ Freq/Period Æ Freq , to set the frequency parameter.
The frequency shown on the screen is the default value when the instrument is
powered or the set value beforehand. When setting the function, if the current
value is valid for the new waveform, it will be used sequentially. If you want to set
the period for the waveform, press Freq/Period button again, switch to the
Period parameter (The current operation is displayed in inverse color).
2. Input the Desired Frequency.
Use the keypad to input the parameter value directly, and press the corresponding
button to select the parameter unit. Or you can use the direction button to select
the digit you want to edit, and then use the knob to change its value.

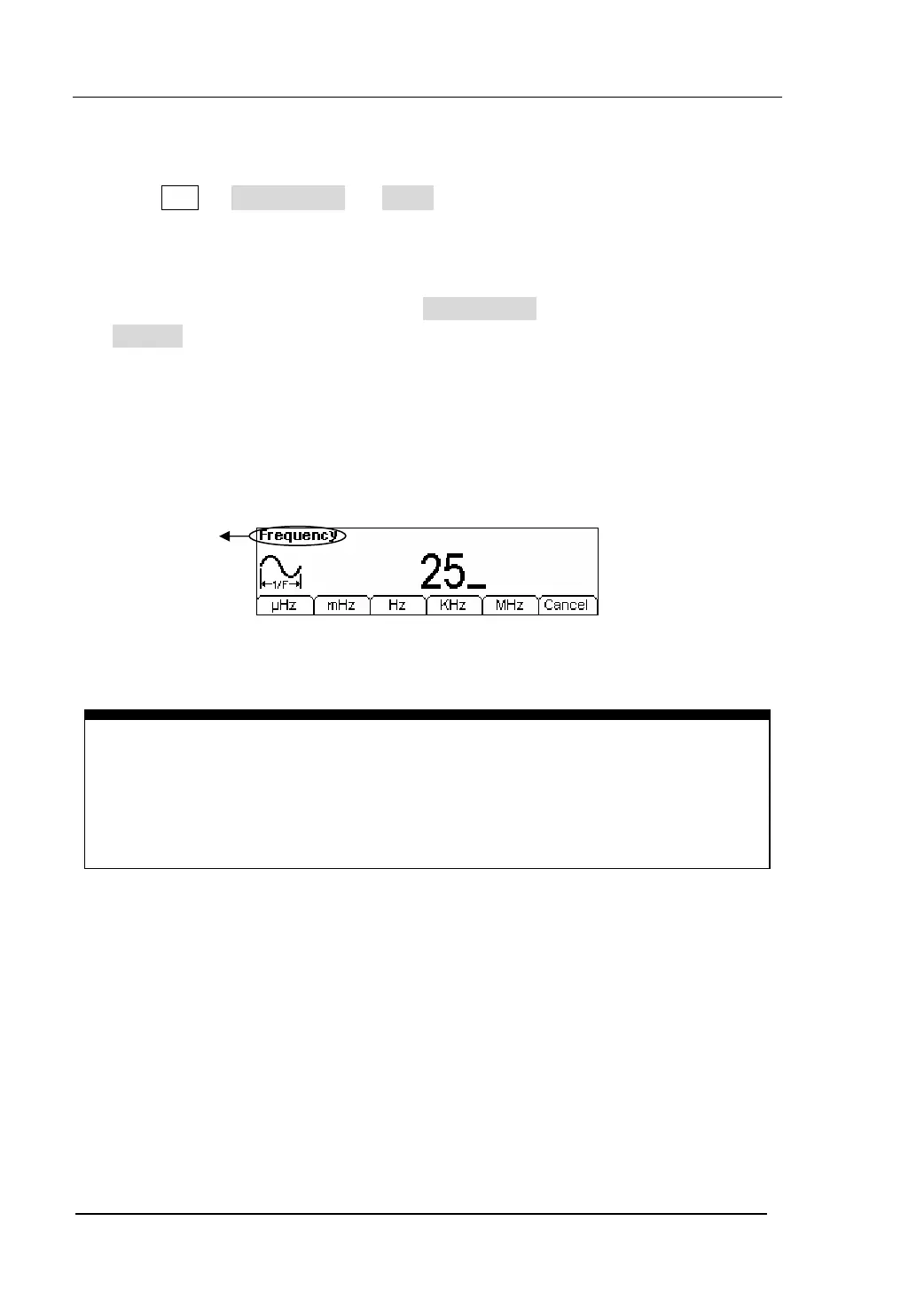

Figure 2-5 Setting the Frequency
Instruction:
When using the keypad to enter the digit, you can use the Left direction button to
move the cursor backward and delete or change the value of the previous digit.
When using the knob to input, use the direction buttons to select the digit you
want to edit and rotate the knob to change its value.
Current
Parameter:
Frequency
