RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
1-10

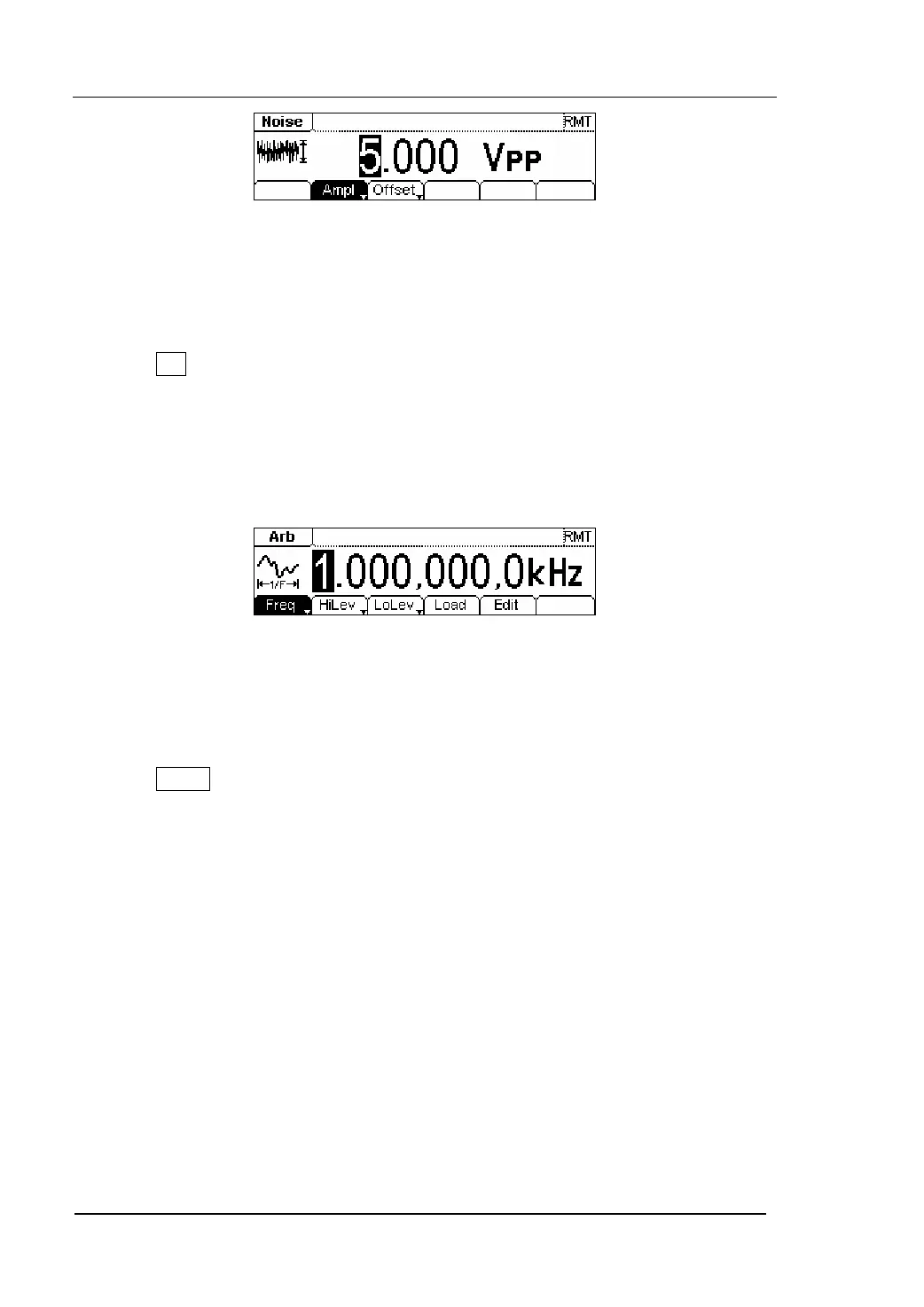

Figure 1-14 The Noise Waveform in the Menu Display Mode
As shown in figure 1-14, the default signal parameters are: 5.0 V
pp Amplitude and
0 V
dc Offset.
6. Press Arb button, and the waveform icon turns into Arb with an “Arb” typeface in
the state area. DG2000 Series Generator can generate repeatable arbitrary
waveform signals with at most 512K points and 12MHz frequency. By setting
Frequency/Period, Amplitude/ High Level, Offset/ Low level, arbitrary waveform
signals with different parameters can be generated.
Figure 1-15 The Arbitrary Waveform in the Menu Display Mode
As shown in figure 1-15, the default Exponential Rise Signal parameters are: 1kHz
Frequency, 5.0 V
pp Amplitude and 0 Vdc Offset.
7. Press Digital button, and enter the interface of Logic Signal Output Module. For
the detailed explanations, please refer to User’s Guide of DG2000 Logic Signal
Output Module.
