RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
2-15
To Set the Edge Time
1 Press Pulse Æ Edge , to set the Edge Time.
The Edge Time shown on the screen is the default value when the instrument is
powered or the set value beforehand. When changing the function, if the current
value is valid for the new waveform, it will be used sequentially.
2 Input the desired Edge Time
Use the keypad or the knob to input the desired value, choose the unit, and press
the corresponding button. The Generator will change the waveform immediately.

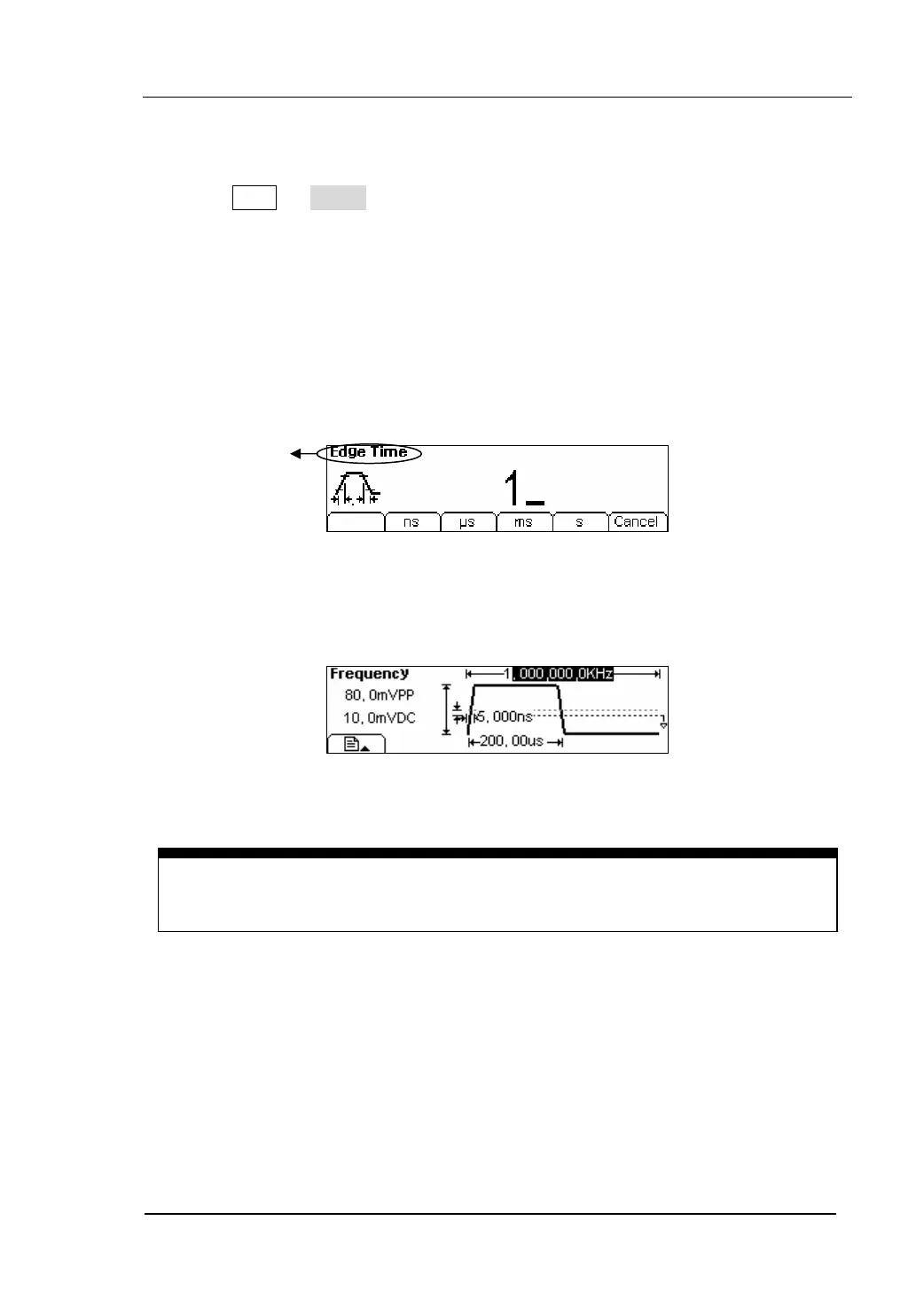

Figure 2-20 Setting the Edge Time
In the Graph Mode, the waveform is shown in figure 2-21.
Figure 2-21 The Waveform Parameter in the Graph Mode
Instruction:
The system has the default setting that the Rising and Falling edge time are the
same.
Current
Parameter:
Edge Time
