Instruction
To save the Arbitrary Waveform：
In the Non-volatile Memory, each waveform storage position can only save one
waveform. If a new one is stored, the old one will be erased.
z For a waveform containing points below 128K, the current position will be
used.
z For a waveform containing points from128K to 256K, two sequential position
will be used.
z For a waveform containing points from256K to 512K, All the 4 position will be
used.

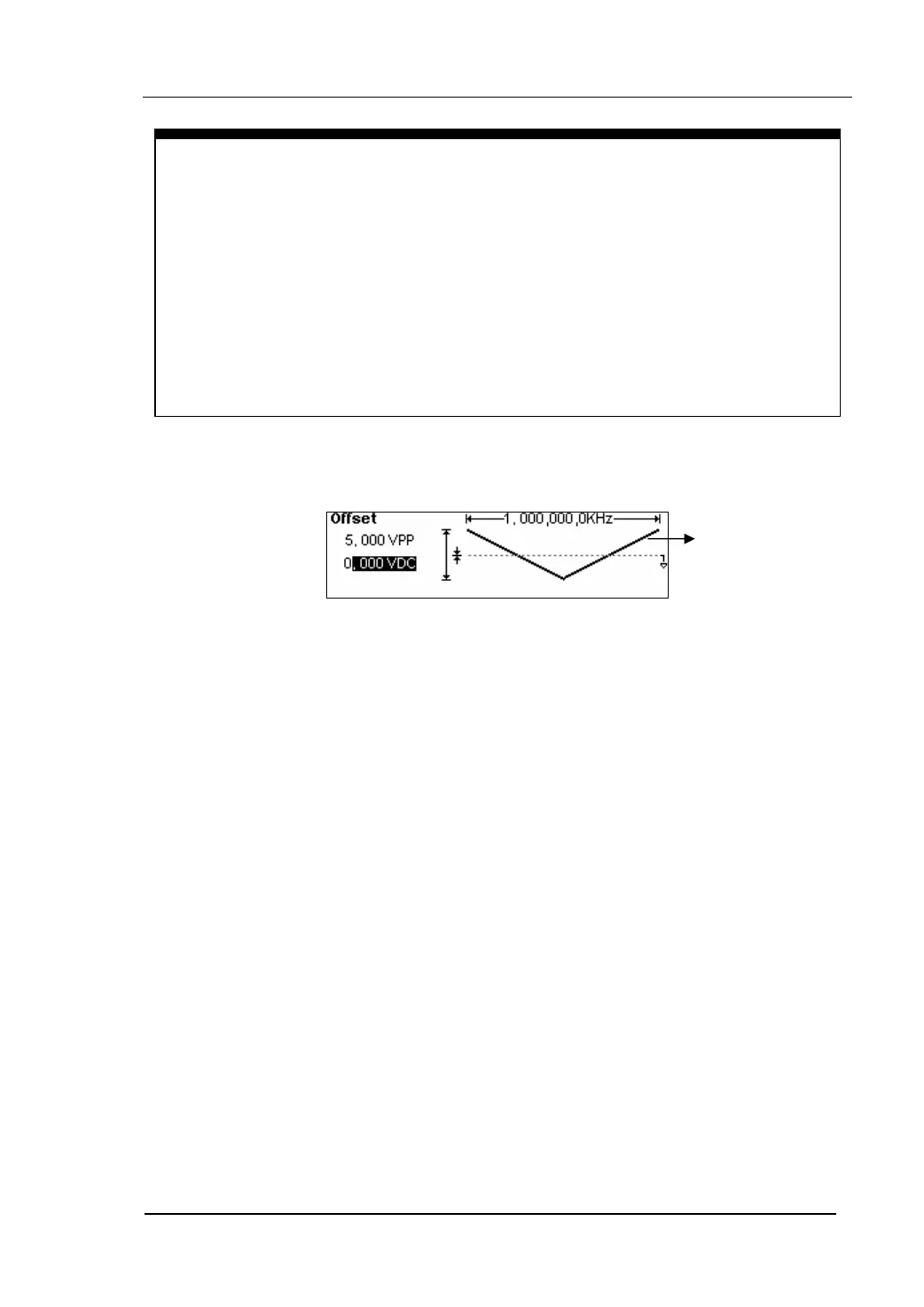

In the Graph Mode, the waveform is shown in figure 2-37.
Figure 2-37 The Waveform Parameter in the Graph Mode
The Default
Arbitrary
Wavefor
m
