User’s Guide for DG2000 Series
2-31
AM
The modulated waveform consists of two parts: the Carrier Waveform and the
Modulating Waveform. In AM, the Amplitude of the Carrier Waveform varies with the
instantaneous voltage of the modulating waveform. The Parameters for the AM are
shown in table 2-16.

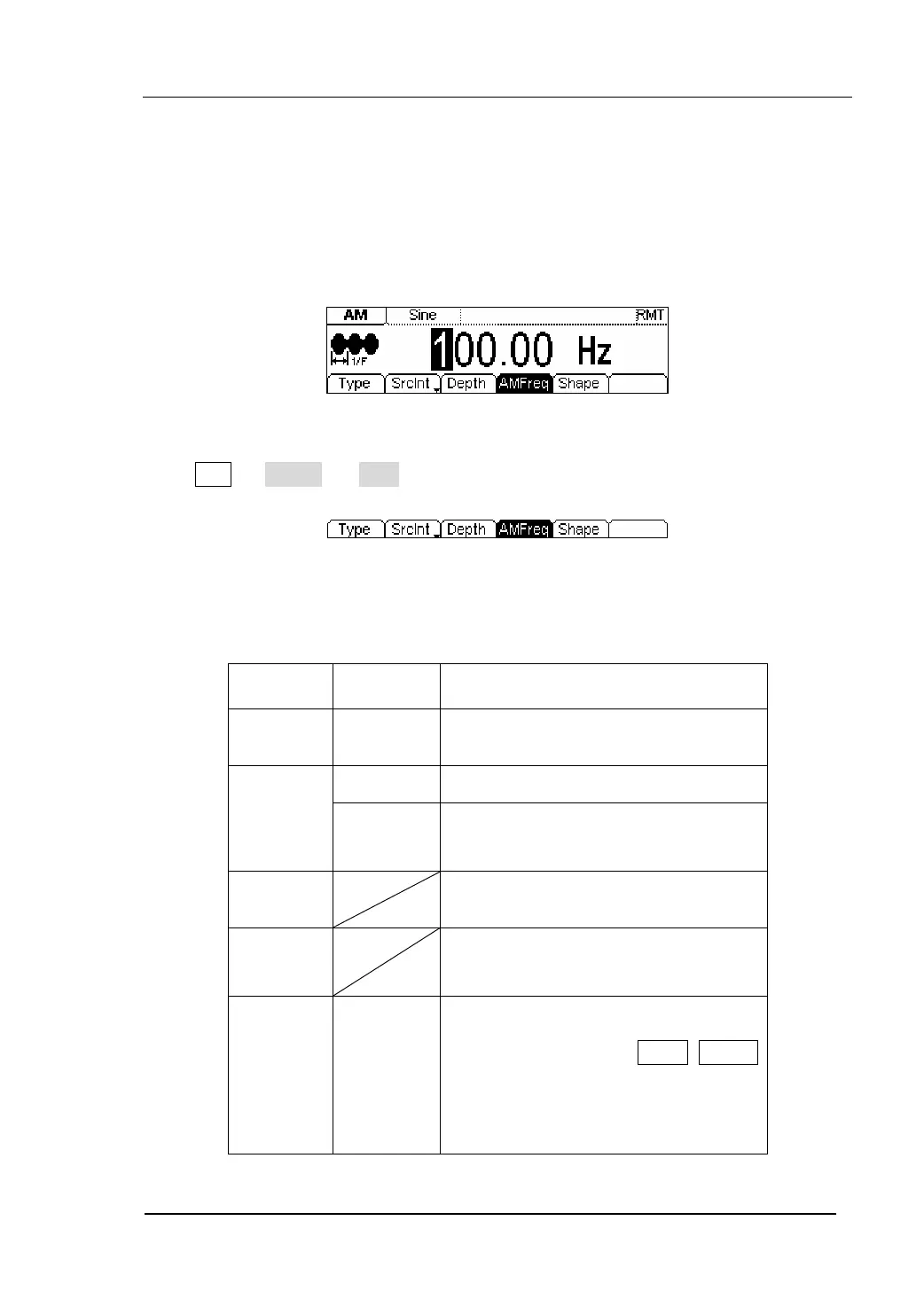

Figure 2-40 The Setting Interface of AM Waveform
Press Mod Æ Type Æ AM , enter the following interface.
Figure 2-41 The Operation Menu
Table 2-16 The Menu Explanations of the AM Parameters
Function
Menu
Settings
Explanation
Type AM Amplitude Modulation
Internal The Source is Internal
SrcInt
SrcExt
External
The Source is External. Use the
[Modulation In] connector in the Rear
panel.
Depth Set the amplitude range
AMFreq
Set the modulating waveform
frequency. Frequency Range:
2mHz~20kHz (Only Internal).
Waveform
Sine
Square
Triangle
UpRamp
DnRamp
Noise
Arb
Press the function key Sine , Square
etc to choose different Shape of
waveform.
