User’s Guide for DG2000 Series
2-34
Table 2-17 The Menu Explanations of the FM Parameters
Function
Menu
Settings
Explanation
Type FM Frequency Modulation
Internal Choose the Internal source.
SrcInt
SrcExt
external
Use the rear [Modulation In] linker to
select the external source.
Deviat.
Set the Frequency Deviation between
the Modulating Waveform and the
Carrier Waveform.
FMFreq
Set the modulating waveform
frequency. Frequency Range:
2mHz~20kHz (Only Internal).
Shape
Sine
Square
Triangle
UpRamp
DnRamp
Noise
Arb
Press the function key Sine , Square
etc to choose different Shape of
waveform.
Note: When choose the external modulation, the menu FMFreq
and Shape will hide.

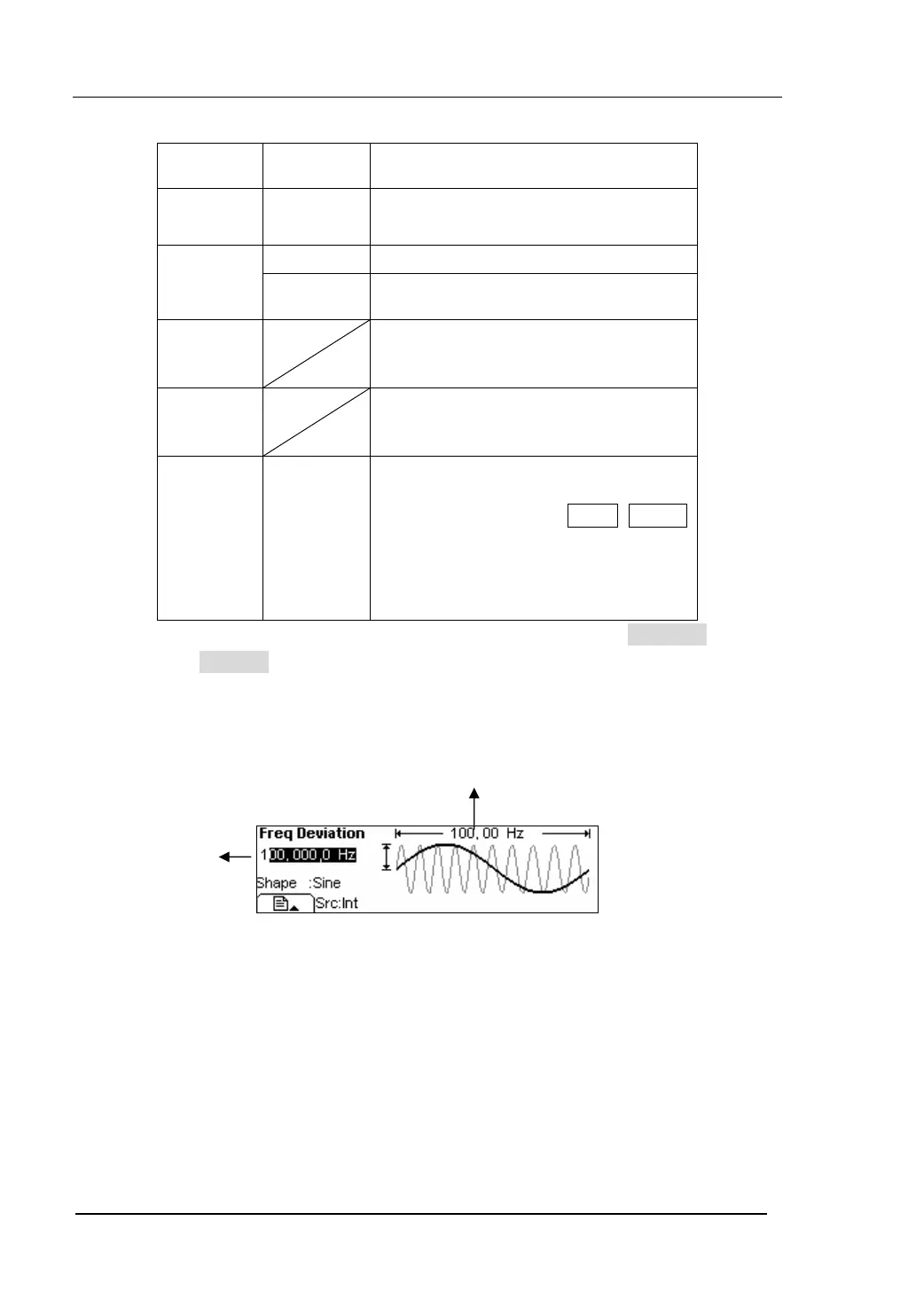

In the Graph Mode, the waveform is shown in figure 2-45.
Figure 2-45 The Waveform Parameter in the Graph Mode
Modulating
Frequency
Frequency
Deviation
