User’s Guide for DG2000 Series
2-48

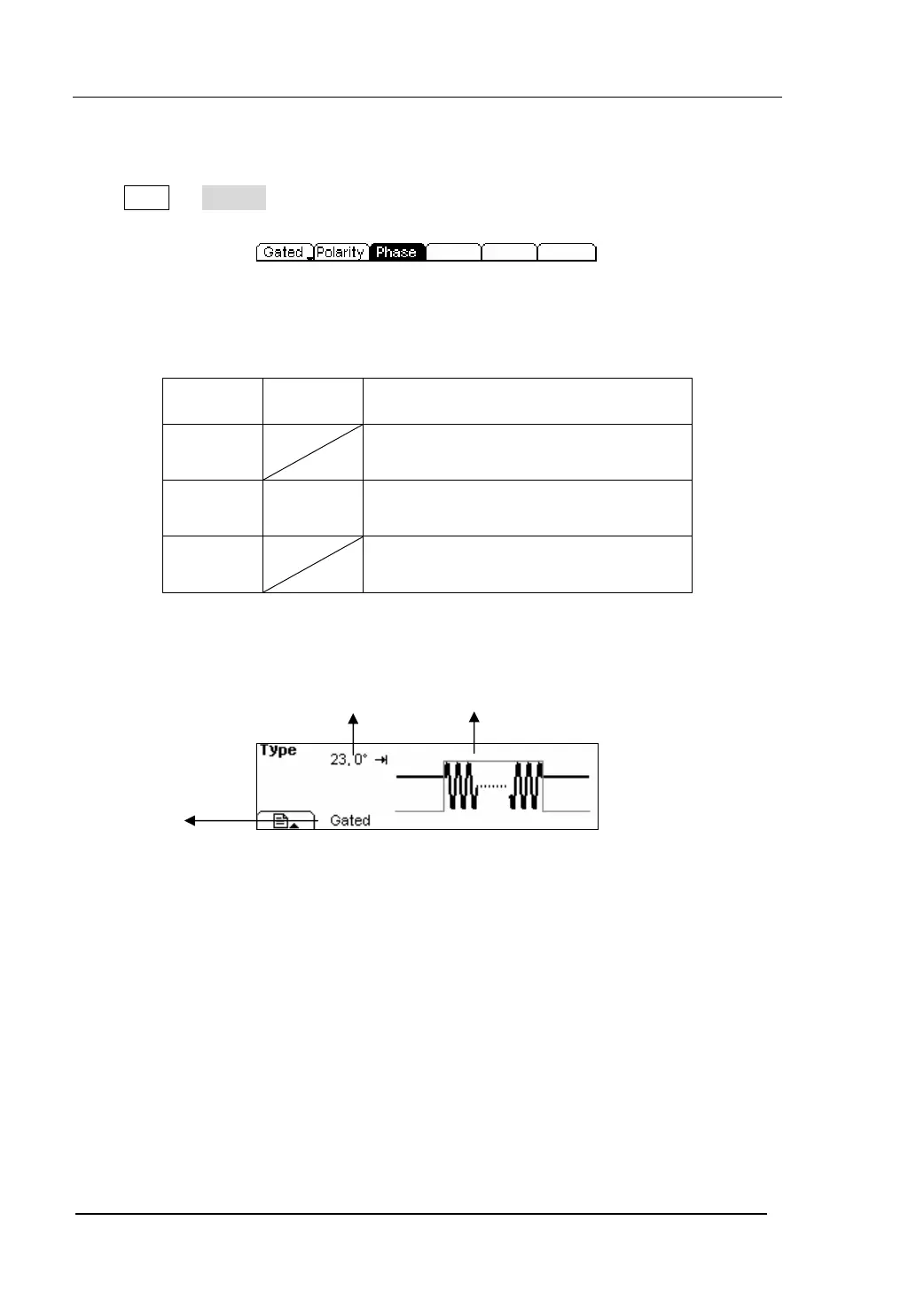

Set the Gated Burst
Press Burst Æ Gated , enter the following menu.
Figure 2-61 The Operation Menu
Table 2-23 The Menu Explanations of Gated Burst
Function
Menu
Settings Explanation
Gated Set the Gated Mode
Polarity
Pos
Neg
Set the Polarity of the Gated Signal
Phase
Set the Start Phase of the Gated
Signal
In the Graph Mode, the waveform is shown in figure 2-62.
Figure 2-62 The Waveform Parameter in the Graph Mode
Positive Gated Signal
Gated
Start Phase
