RIGOL Chapter 1 Quick Guide
1-4 DG800 User's Guide
Front Panel Overview

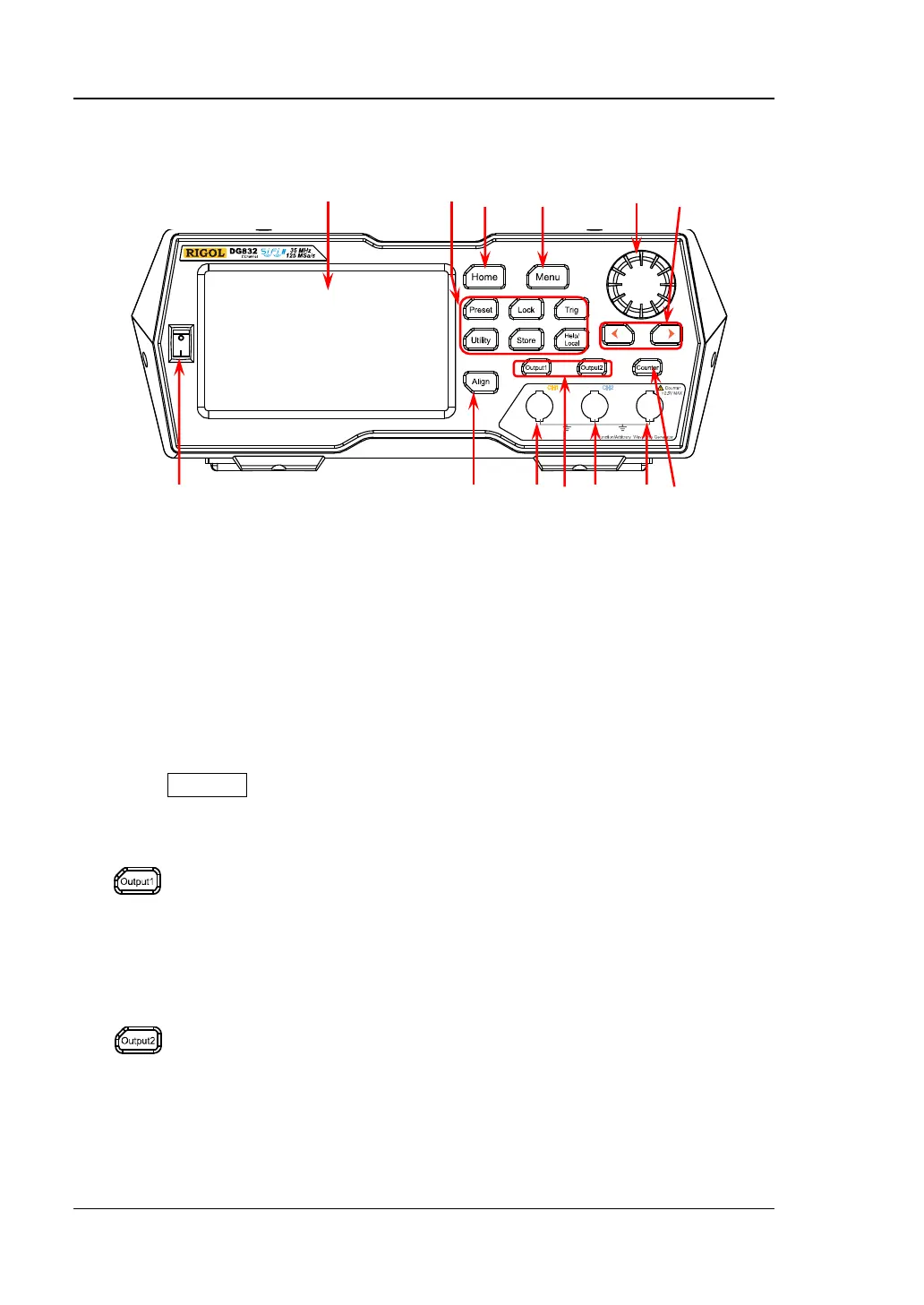

Figure 1-1 Front Panel
1. Power Key
Turns on or off the generator.
2. Align Key
Performs the phase alignment operation. For details, refer to descriptions in
"Align Phase".
3. CH1 Output Connector
BNC connector, with 50 Ω nominal output impedance.
When Output1 is enabled (the backlight turns on), this connector outputs
waveforms according to the current configuration of CH1.
4. Channel Control Area
It is used to control the output of CH1.
— Press this key to enable the output of CH1, the backlight
turns on. At this time, the [CH1] connector outputs the
waveforms according to the current configuration of CH1.
— Press this key again to disable the output of CH1, and the
backlight turns off.
It is used to control the output of CH2.
— Press this key to enable the output of CH2, the backlight
turns on. At this time, the [CH2] connector outputs the
waveforms according to the current configuration of CH2.
— Press this key again to disable the output of CH2, and the
backlight turns off.
1 2 3 4 5 6 7
13 12 11 10 9 8
