To Prepare for Use

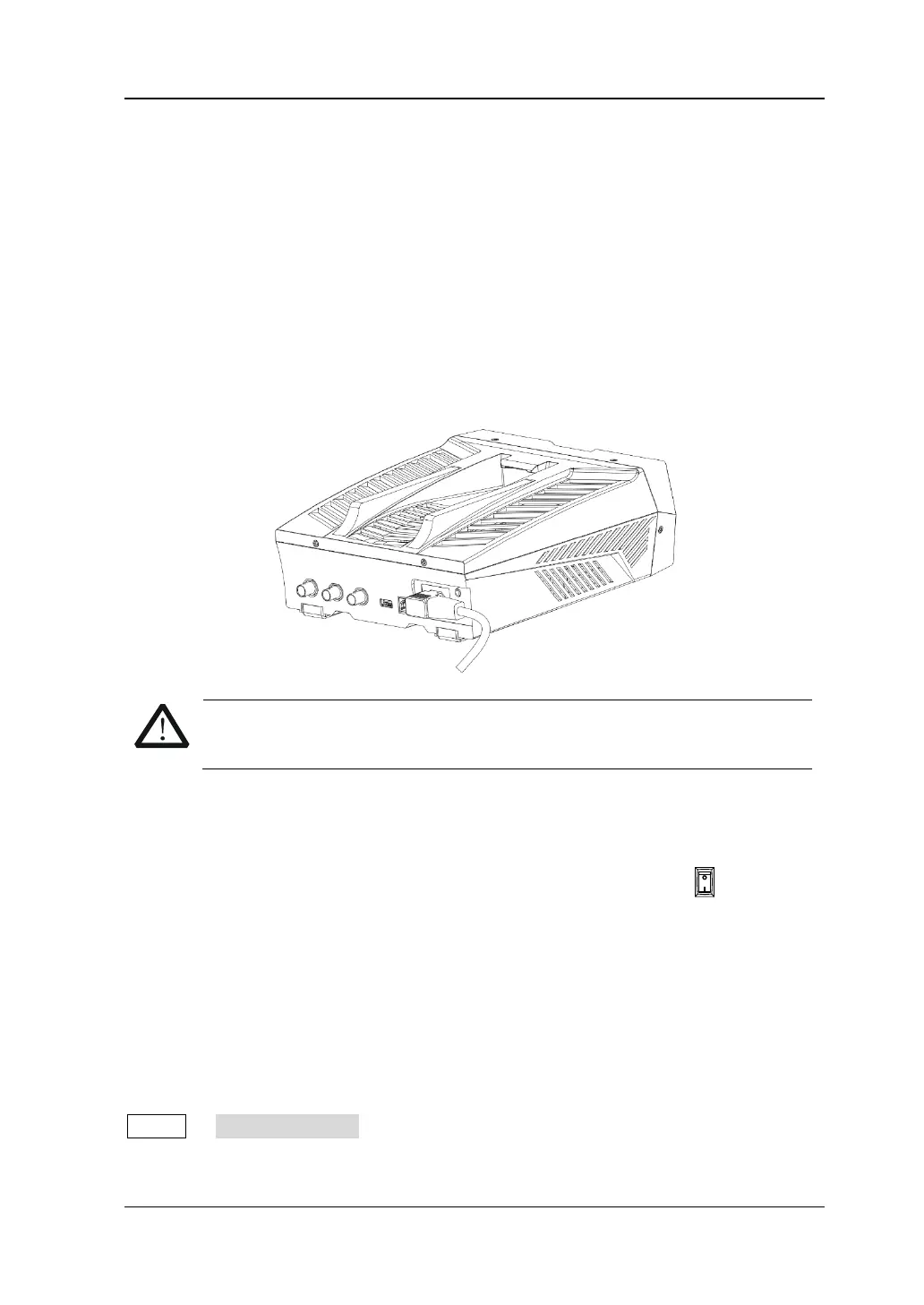

To Connect to AC Power
Please use the power cord provided in the accessories to connect the signal
generator to the AC power source, as shown in the figure below. The rated AC power
source supported by the signal generator is (100-127 V, 45-440Hz) or (100-240 V,
45-65Hz), and its maximum input power shall not exceed 30 W. When the signal
generator is connected to the AC power source via the power cord, the instrument
automatically adjusts itself to within the proper voltage range, and you do not need
to select the voltage range manually.
To avoid electric shock, ensure that the instrument is correctly
Turn-on Checkout
After connecting the instrument to the power source properly, press on the front
panel to start the signal generator. During the start-up, the instrument will undergo
the initialization and self-check process. Then, it will enter a default interface. If you
still fail to power on the instrument normally, refer to the methods in
"Troubleshooting" to resolve the problem.
To Set the System Language
DG800 arbitrary waveform generator supports multiple languages. You can press
Utility System Setting, and then select a desired language from the
"Language" drop-down list.
