To Prepare for Use

5.1 To Adjust the Supporting Legs

Adjust the supporting legs properly to use them as stands to tilt the oscilloscope

upwards for stable placement of the oscilloscope as well as better operation and

observation. You can also fold the supporting legs when the instrument is not in use

for easier storage or shipment, as shown in the figure below.

Supporting Legs

（a）Unfold the supporting legs

（b）Fold the supporting legs

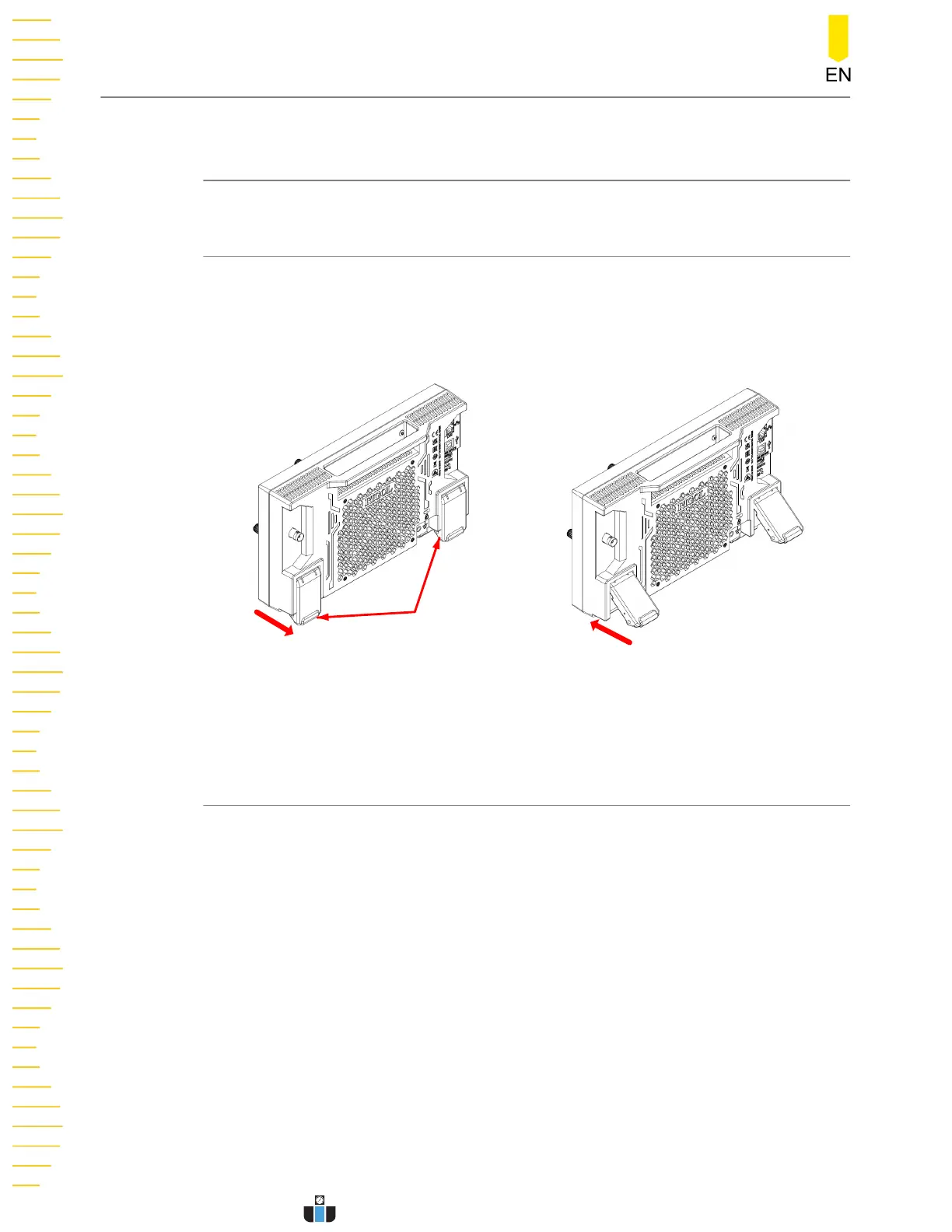

Figure 5.1 Adjusting the Supporting Legs

5.2 To Connect to Power

The power requirements of the oscilloscope are DC, 12 V, 4 A. Please use the power

adaptor provided in the accessories to connect the oscilloscope to the AC power

source (100 V to 240 V, 50 Hz to 60 Hz), as shown in the figure below.

To Prepare for Use
