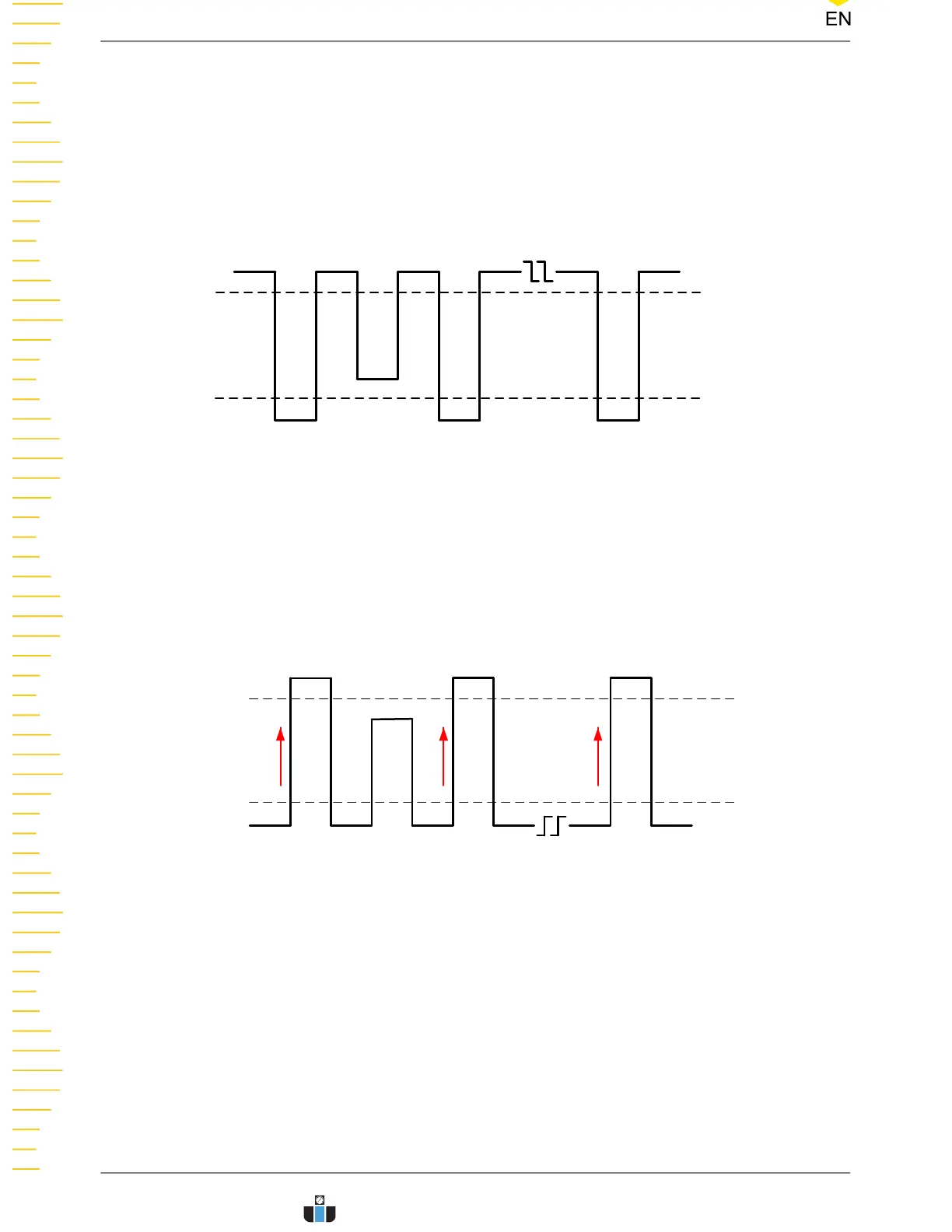

Negative Pulse Count

It is specified as the number of negative pulses that fall from above the threshold

upper limit to below the threshold lower limit.

1 n2

Negative Pulse Count = n

Threshold

Upper Limit

Threshold

Lower Limit

Rising Edge Count

It is specified as the number of rising edges that rise from under the threshold lower

limit to above the threshold upper limit.

1 n2

Rising Edge Count = n

Threshold

Upper Limit

Threshold

Lower Limit

Falling Edge Count

It is specified as the number of falling edges that fall from above the threshold

upper limit to below the threshold lower limit.

Measurements

DHO900 User Guide

136
