mode.
4. Stop Bits
The available stop bits include 1 or 2.
Press the Up/Down arrow key to switch the parameter focus to "Stop Bits", and
then press the Left/Right arrow key or use the knob to select the desired stop
bits.
5. Flow
The load adopts RTS/CTS hardware flow control mode, and monitors the state
of CTS pin. If the state is true, the load sends data; if false, the load stops
sending data. When input cache is nearly full, set CTS pin to be "false"; when
the input cache is available again, set CTS pin to be "true".
Press the Up/Down arrow key to switch the parameter focus to "Flow", and then
press the Left/Right arrow key or use the knob to enable or disable the flow
control function.
Set the parameters for the LAN interface
Before using the LAN interface, connect the load to the PC or the local area network
(LAN) where the PC resides.
Press Interface to enter the communication interface tab, and then press the LAN
key to select the "LAN" tab to enter the network parameter setting interface, as
shown in
Figure 2-57.

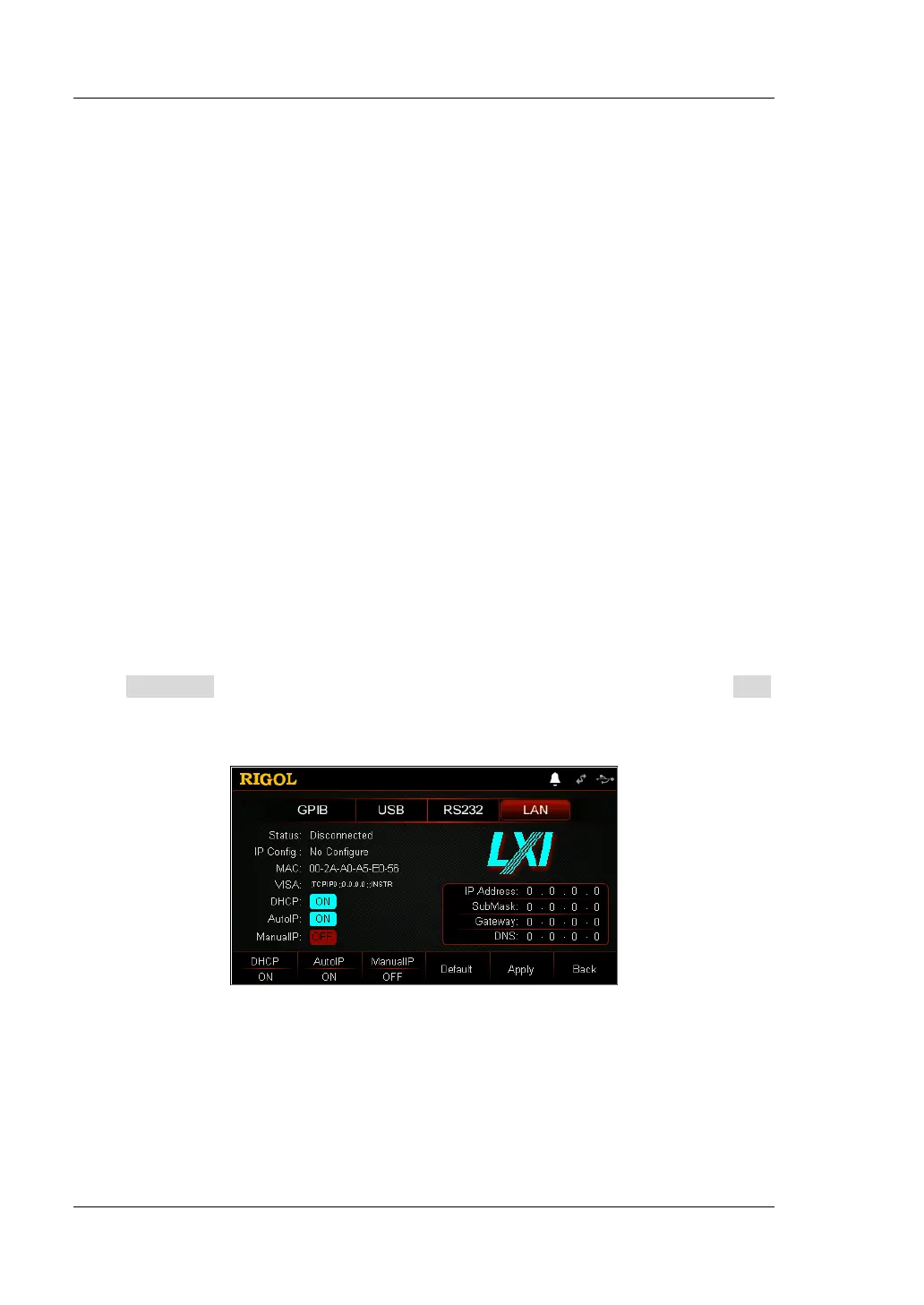

Figure 2-57 "LAN" Tab Interface
In this interface, you can view the network connection status and configure the
network parameters such as IP configuration, IP address, subnet mask, and default
gateway. The setting is stored in the non-volatile memory, which will not be affected
even if you restore the load to its factory defaults.
