User‟s Guide for DS1000 Series
2-90

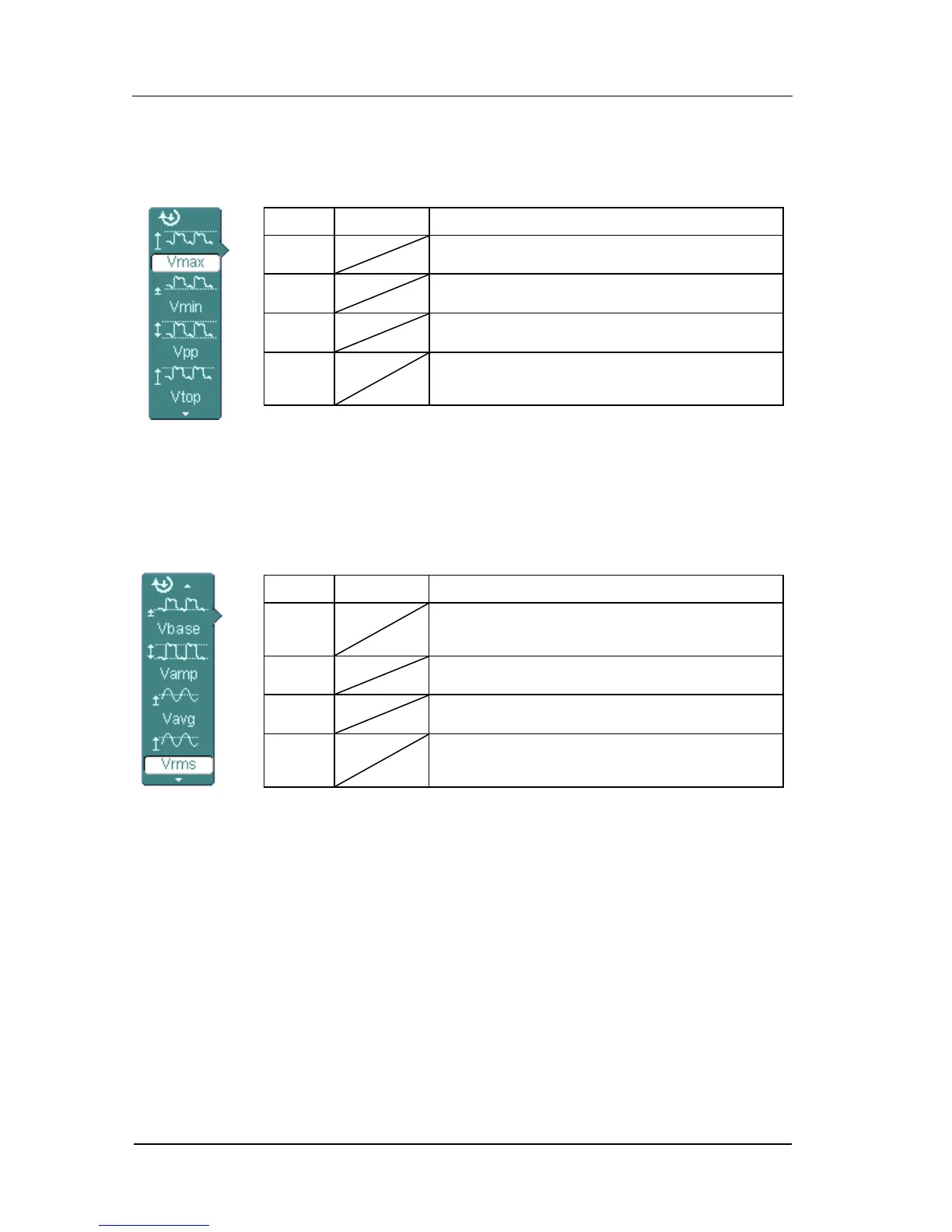

Page 1 for Voltage Measurements
Figure 2-110 Table 2-73
Menu
Settings
Comments
Vmax
Measure maximum voltage of a waveform
Vmin
Measure minimum voltage of a waveform
Vpp
Measure Peak-to-Peak Voltage
Vtop
Measure a flat top voltage of a square
waveform
Page 2 for voltage measurements
Table 2-74
Menu
Settings
Comments
Vbase
Measure a flat base voltage of a square
waveform
Vamp
Measure voltage between Vtop and Vbase
Vavg
Measure average voltage of a waveform
Vrms
Measure Root Mean Square Voltage of a
waveform
Figure 2-111
