Page 3 for Time Measurements

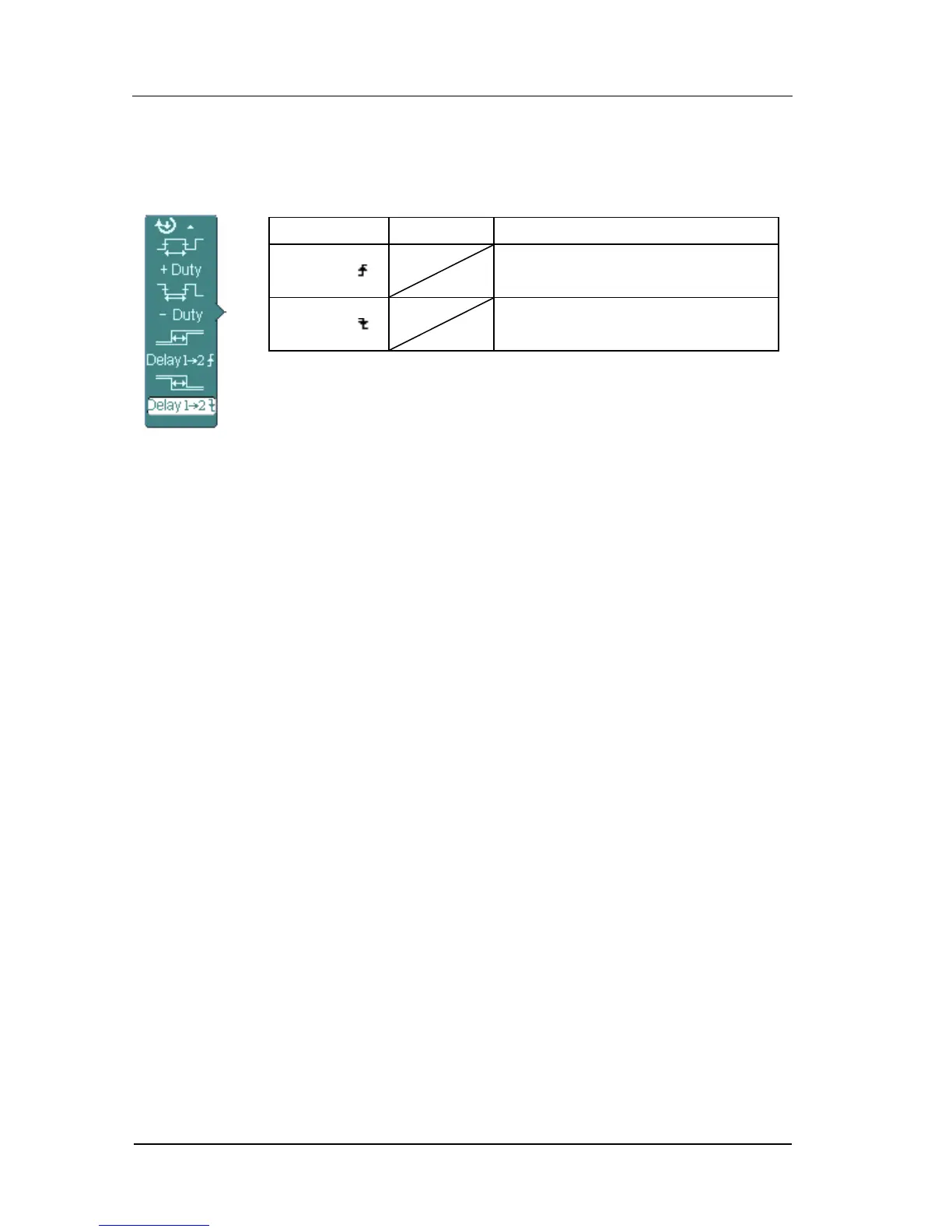

Figure 2-115 Table 2-78
Menu
Settings
Comments
Delay1→2
Measure the signals delay between
two channels at the rising edge
Delay1→2
Measure the signals delay between
two channels at the falling edge
Note:
The results of the automatic measurements will be displayed on the bottom of the
screen. Maximum 3 results could be displayed at the same time. When there is no
room, the next new measurement result will make the previous results moving left out
of screen.
