Rigol DS1000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
2-97
Menus and operations of Cursor Measurements
1. Manual Mode

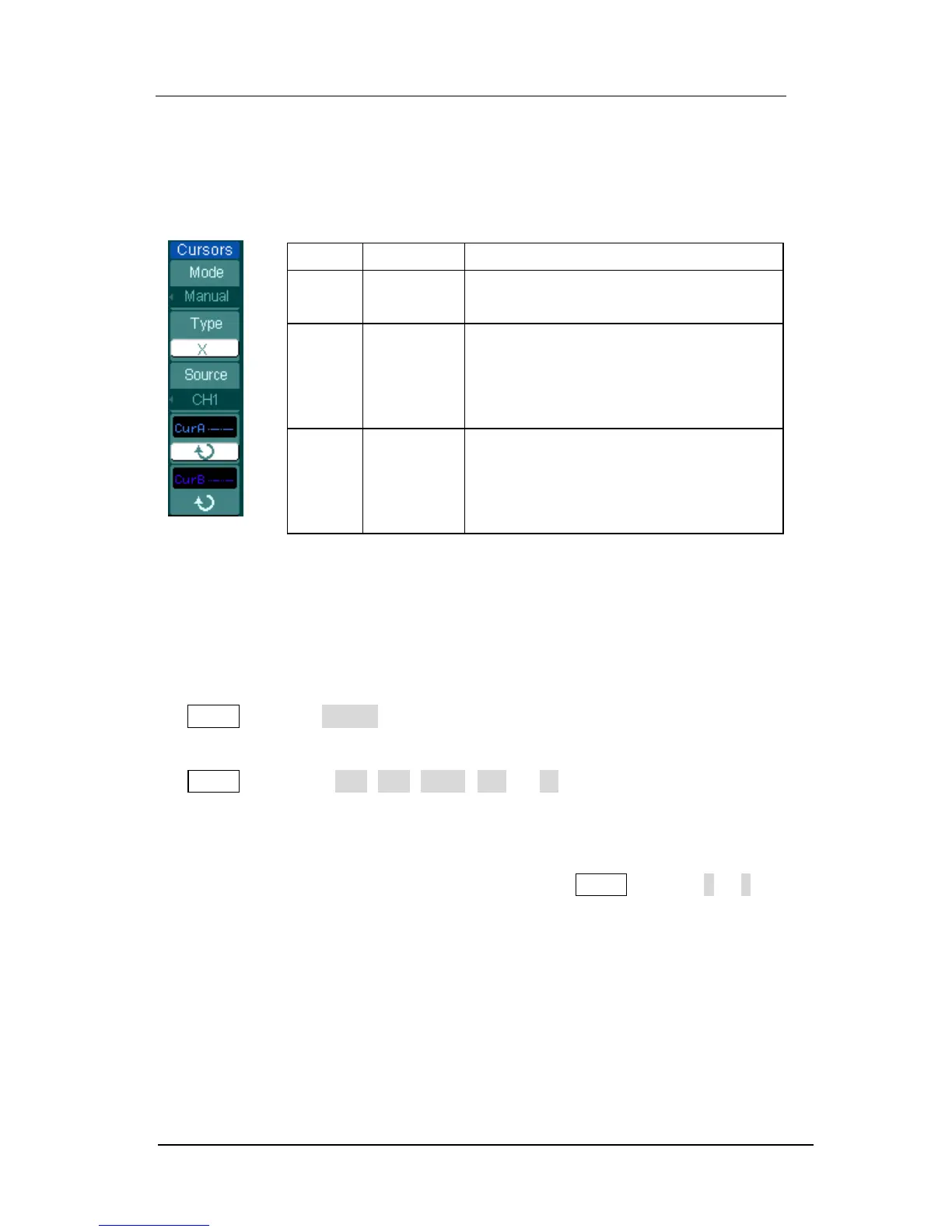

Figure 2-120 Table 2-79
Menu
Settings
Comments
Mode
Manual
Adjust the cursor to measure X/Y
parameters manually
Type
X
Y
Shown as vertical line to measure the
horizontal parameters
Shown as horizontal line to measure
the vertical parameters
Source
CH1
CH2
FFT
LA
Select the measurement signal source.
(LA is only applicable in DS1000xD)
In this mode, the oscilloscope measures the Y or X coordinate values of the cursors,
and the increments between the two cursors.
To do manual Cursor Measurements, please do as the following steps:
1. Select the Manual mode for cursor measurement by pressing soft button as:
Cursor→Mode→Manual.
2. Select channel Source for measurements by pressing soft button as:
Cursor→Source→CH1, CH2, MATH (FFT) or LA (DS1000xD)
NOTE: While measuring the channel of MATH, the results are valued with “d”
(division) as units.
3. Select the cursors type by pressing soft button as Cursor→Type→X or Y.
4. Move the cursors to adjust the increment between the cursors: (Details in the
following Table)
