User‟s Guide for DS1000 Series
1-4
Figure1-3

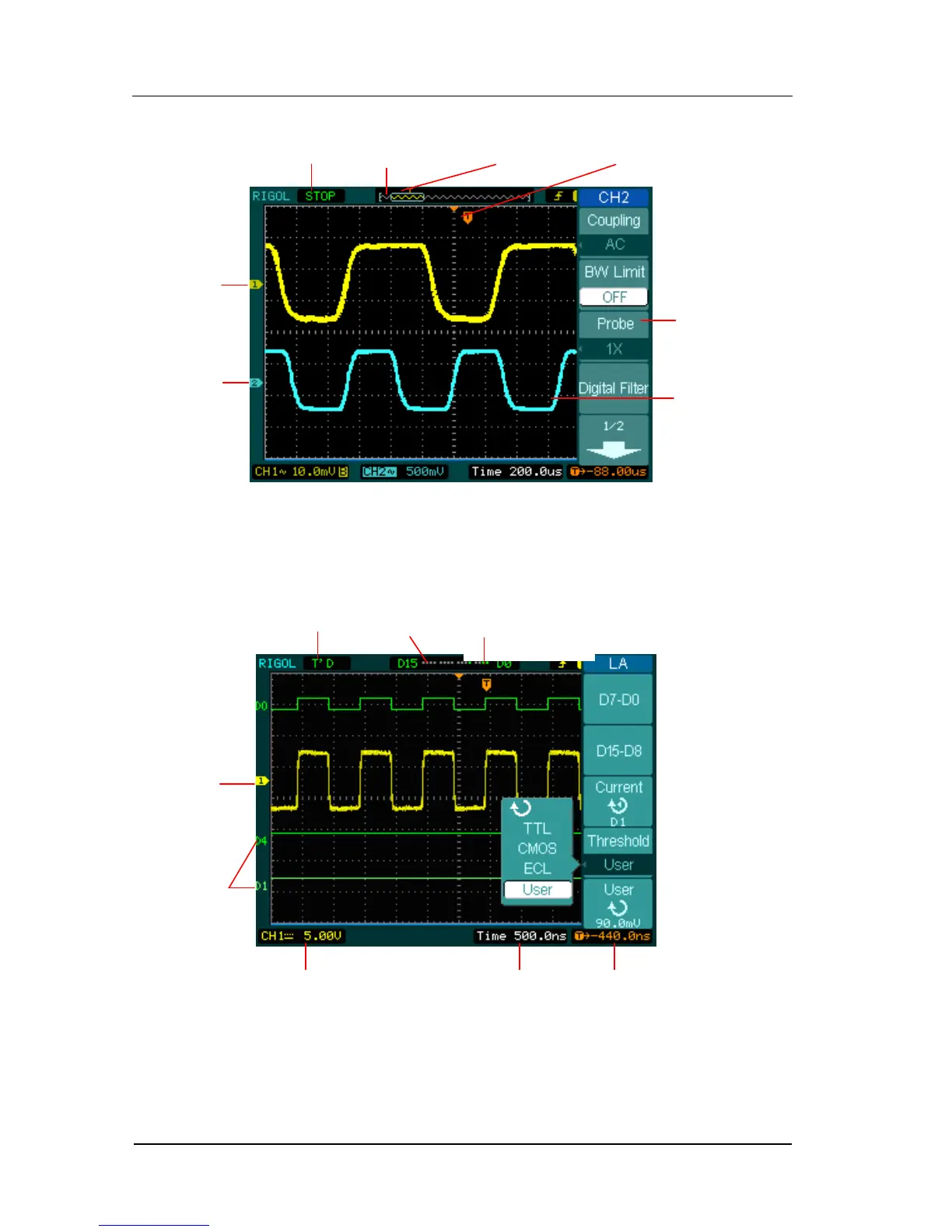

Display screen (Analog channels only)
Figure 1-4
User Interface (Analog and Digital channels)
Waveform
display window
Menu
Channel 1
Channel 2
Running status
Location of
waveform window
in memory
Trigger point in
waveform window
Digital channels
turned on
Digital channel
turned off
Running status
Channel 1
Digital
channels
Channel coupling
and vertical div.
Horizontal
time base div.
Trigger
offset
Trigger point in
memory
