RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
3. Probe Attenuation Setting
The oscilloscope allows selecting the attenuation factor for the probe. The attenuation
factor changes the vertical scaling of the oscilloscope so that the measurement results
reflect the actual voltage levels at the probe tip.
To change (or check) the probe attenuation setting, press the CH1 or CH2 button
(according to which channel in using). Toggle the Probe soft button to match the
attenuation factor of the probe.
This setting remains in effect until changed again.

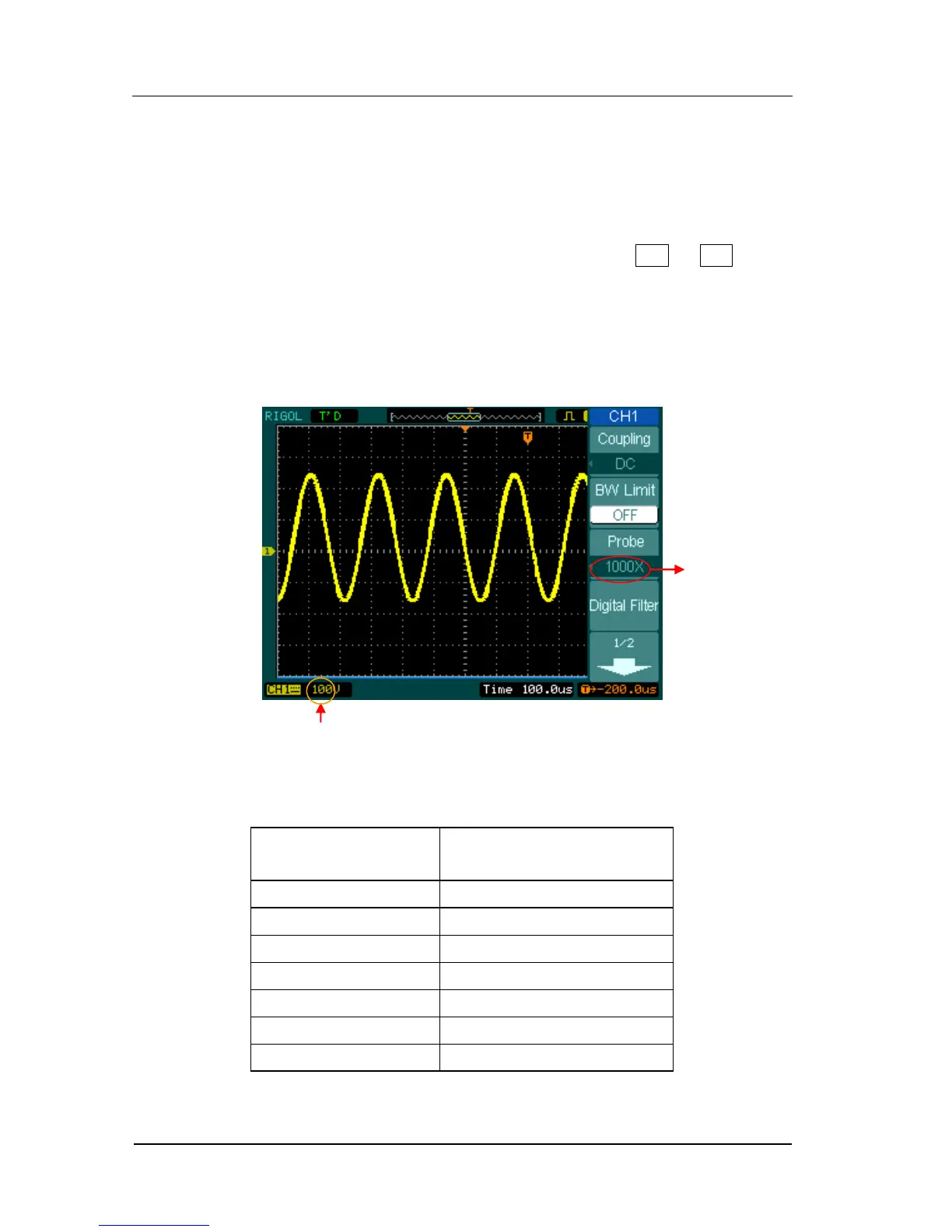

Figure 2-8 show an example for using a 1000:1 probe and its attenuation factor.
Figure 2-8
Using a 1000:1 probe
Table 2-3 Probe setting
