RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
Displaying a Reference Waveform

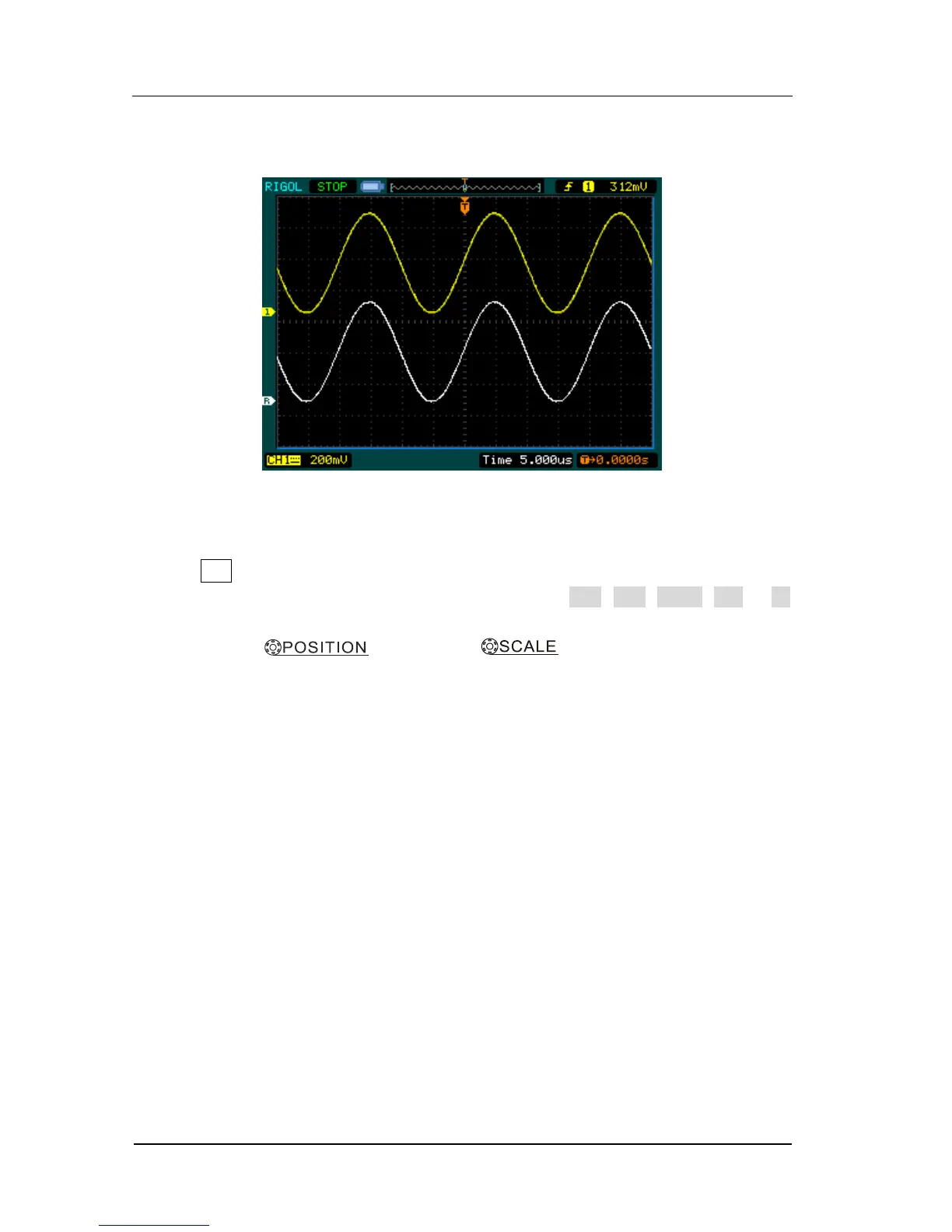

Figure 2-30
Reference waveform display
1. Push REF button to show the reference waveform menu.
2. Press soft button 1 to select the reference channel: CH1, CH2, MATH, FFT or LA
(DS1000xD).
3. Turn vertical and vertical to adjust the REF waveform
to a suitable position.
4. Press soft button No.2 to select the save location of REF waveform.
5. Press soft button No.3 to save the waveform as REF.
NOTE:
The reference function is not available in X-Y mode.
