RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
Set up LA channel (DS1000xD)
Single channel or group channels can be chosen ON or OFF, and also can set the size
of waveform. Change display location of digital channel on screen and select threshold
style.
Press LA function button and go to the following menu.

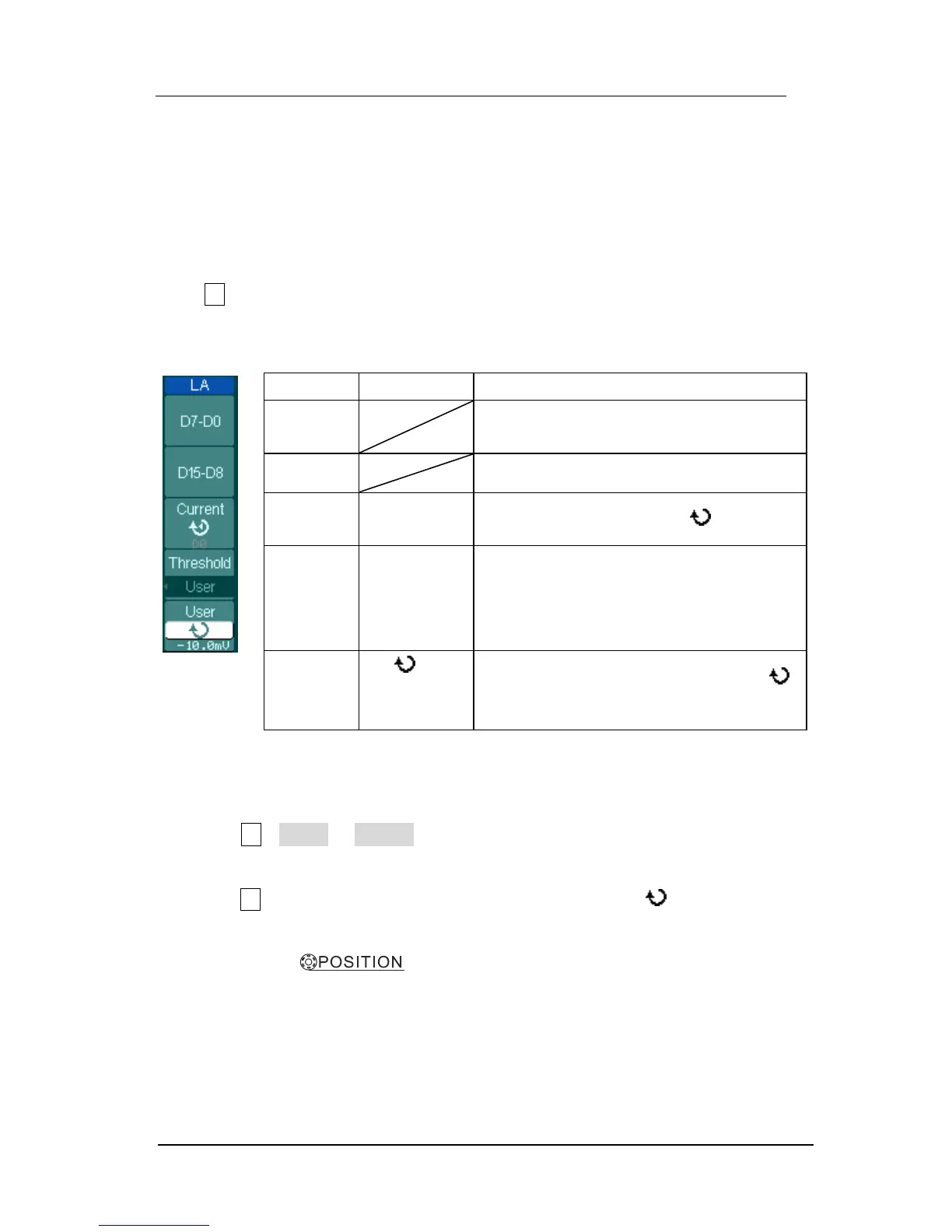

Figure 2-31 Table 2-15
Set up channel group D7-D0 (see table
2-16)
set up channel group D15-D8 (see 2-17)
Select channel by turning ( ) knob
Select mode of whole digital channels.
The threshold voltage can set by user
when in user-defined style.
Set threshold voltage by turning ( )
knob.
1. Display and re-line up the digital channels
(1) Press LA→D7-D0 or D15-D8 and go to the group channel setting menu. Turn on
or turn off the display of the digital channels.
(2) Press LA→current and choose digital channel by turning ( ) knob. The chosen
channel will be shown in red (Color LCD).
(3) Turn vertical knob to re-position the channel in screen.
The figure of menu shows as follow.
