User‟s Guide for DS1000 Series
2-24
Figure 2-32
LA Channel menu
2. Set threshold mode of digital channels
Press LA→Threshold, select logic standard or User to define your own threshold
voltage.
The figure of menu shows as follow.

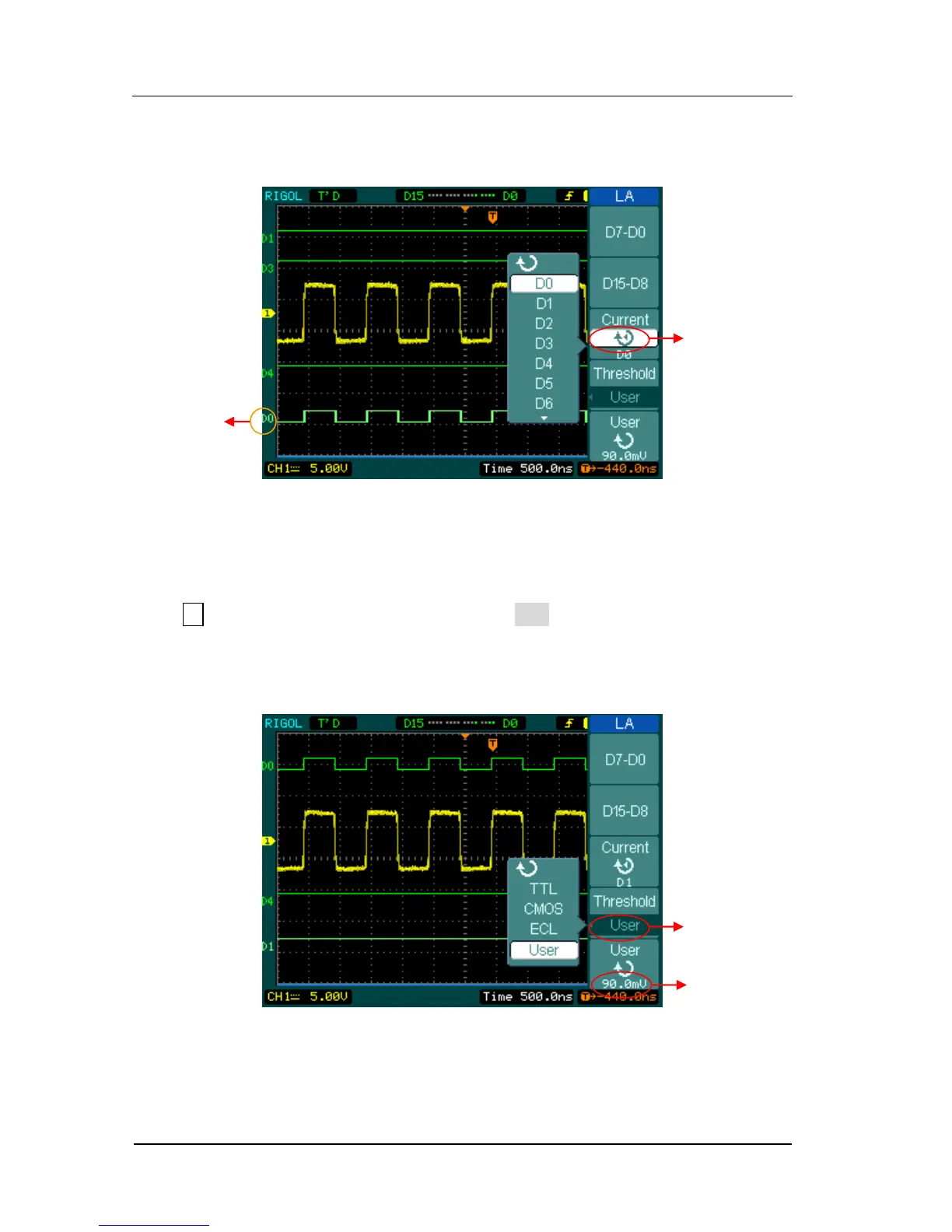

Figure 2-33
Threshold Mode Menu
Select
running
channel
Running
channel
Setup threshold
Setup data of
threshold by user
