User‟s Guide for DS1000 Series
2-35
X-Y Format
This format is useful for studying phase relationships between two signals.
Channel 1 in the horizontal axis(X) and channel 2 in the vertical axis(Y), the
oscilloscope uses a none-trigger acquisition mode, data is displayed as dots.

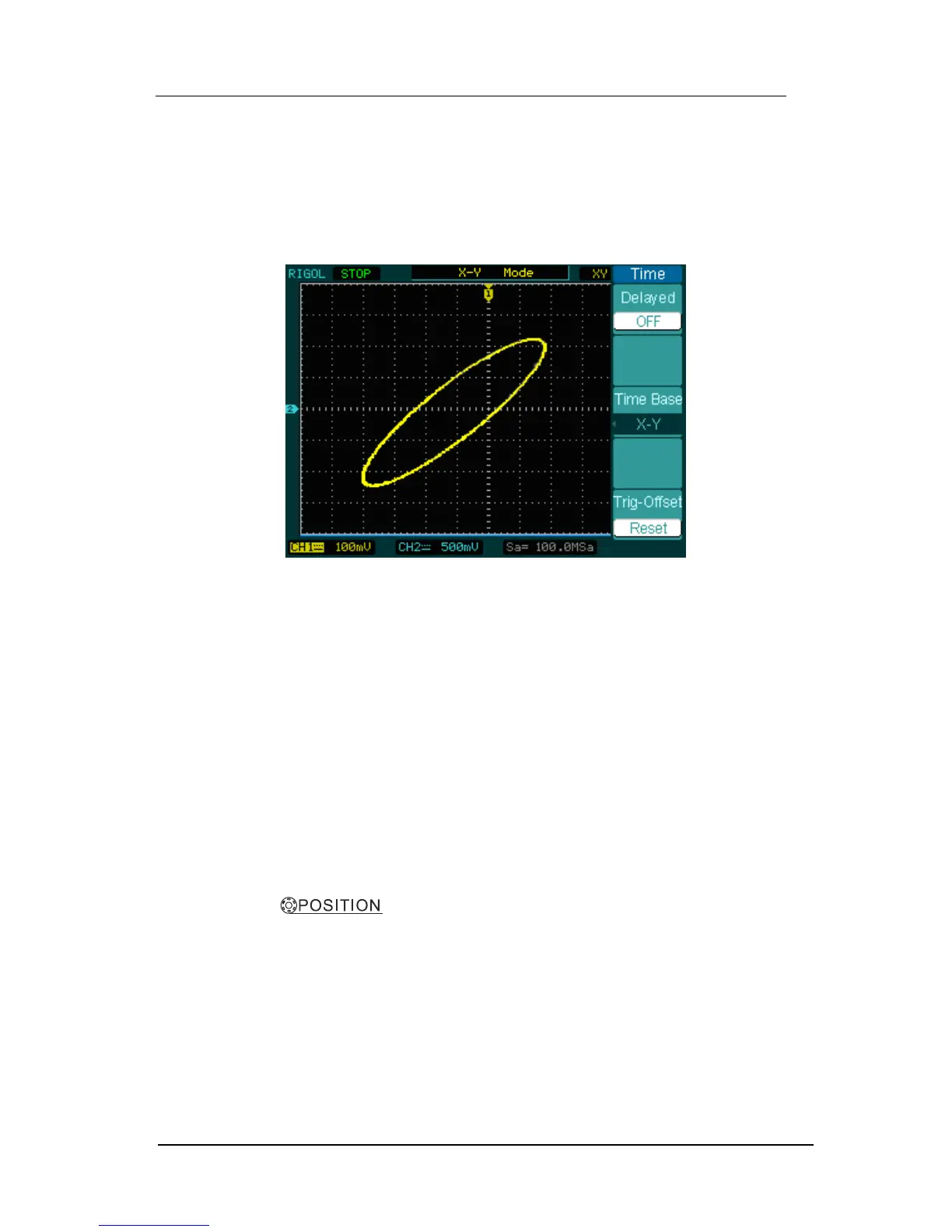

Figure 2-40
X-Y display format
The following modes or functions will not work in X-Y format.
 LA Function (DS1000xD)
 Automatic Measurements
 Cursor Measurements
 REF and MATH Operations
 Delayed Scan Mode
 Vector Display Mode
 Horizontal knob
 Trigger Controls
