User‟s Guide for DS1000 Series
2-46

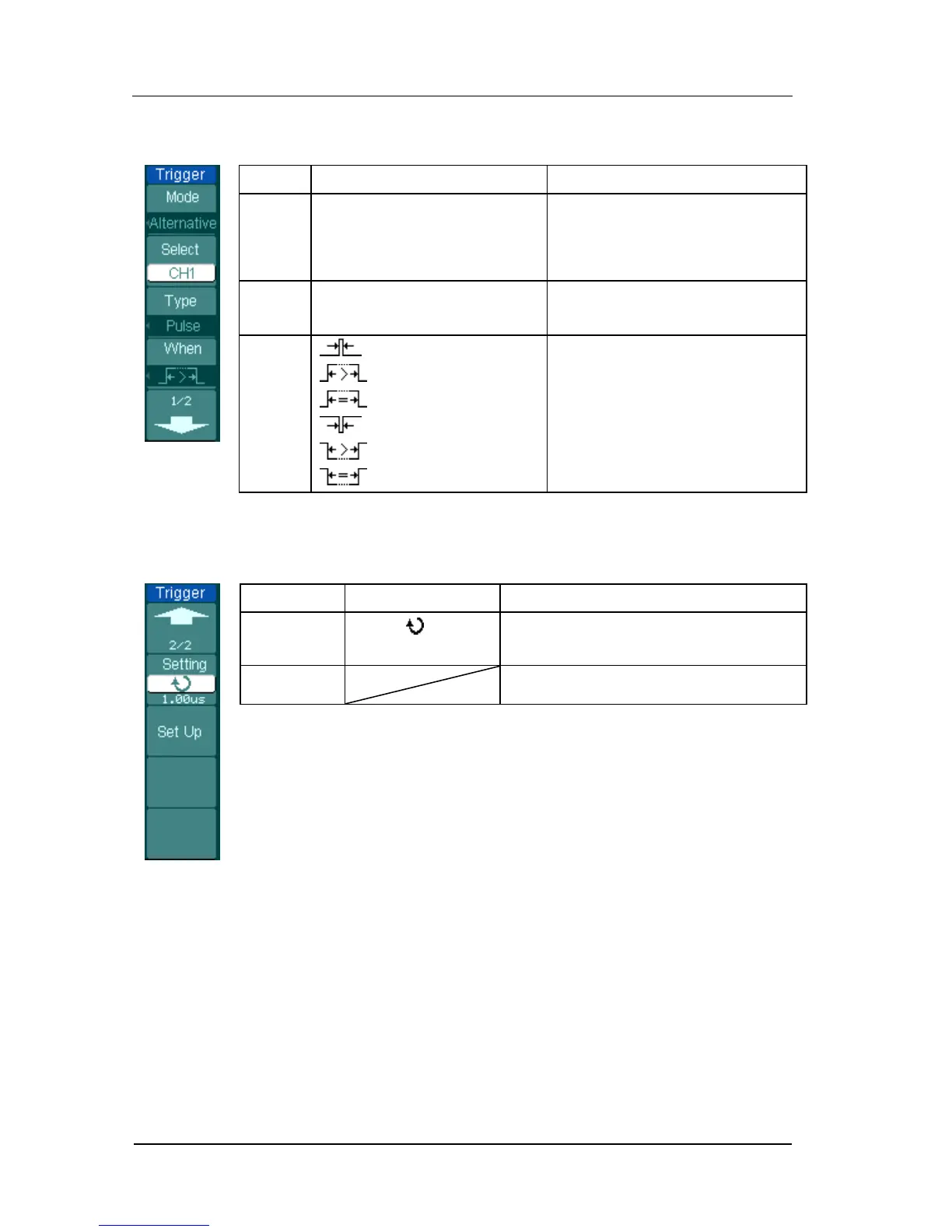

Figure 2-53 Table 2-29 (Trigger Type: Pulse Page One )
Menu
Settings
Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type
Pulse
Set Pulse Trigger for the
channel
When
(+Pulse width less than)
(+Pulse width more than)
(+Pulse width equal to)
(-Pulse width less than)
(-Pulse width more than)
(-Pulse width equal to)
To select pulse condition
Figure 2-54 Table 2-30 The Alternative menu (Trigger Type: Pulse Page 2/2)
Menu
Settings
Comments
Setting
<pulse width>
Set the width of the pulse
Set Up
To go to set up menu. See table 2-38
