User‟s Guide for DS1000 Series
2-47

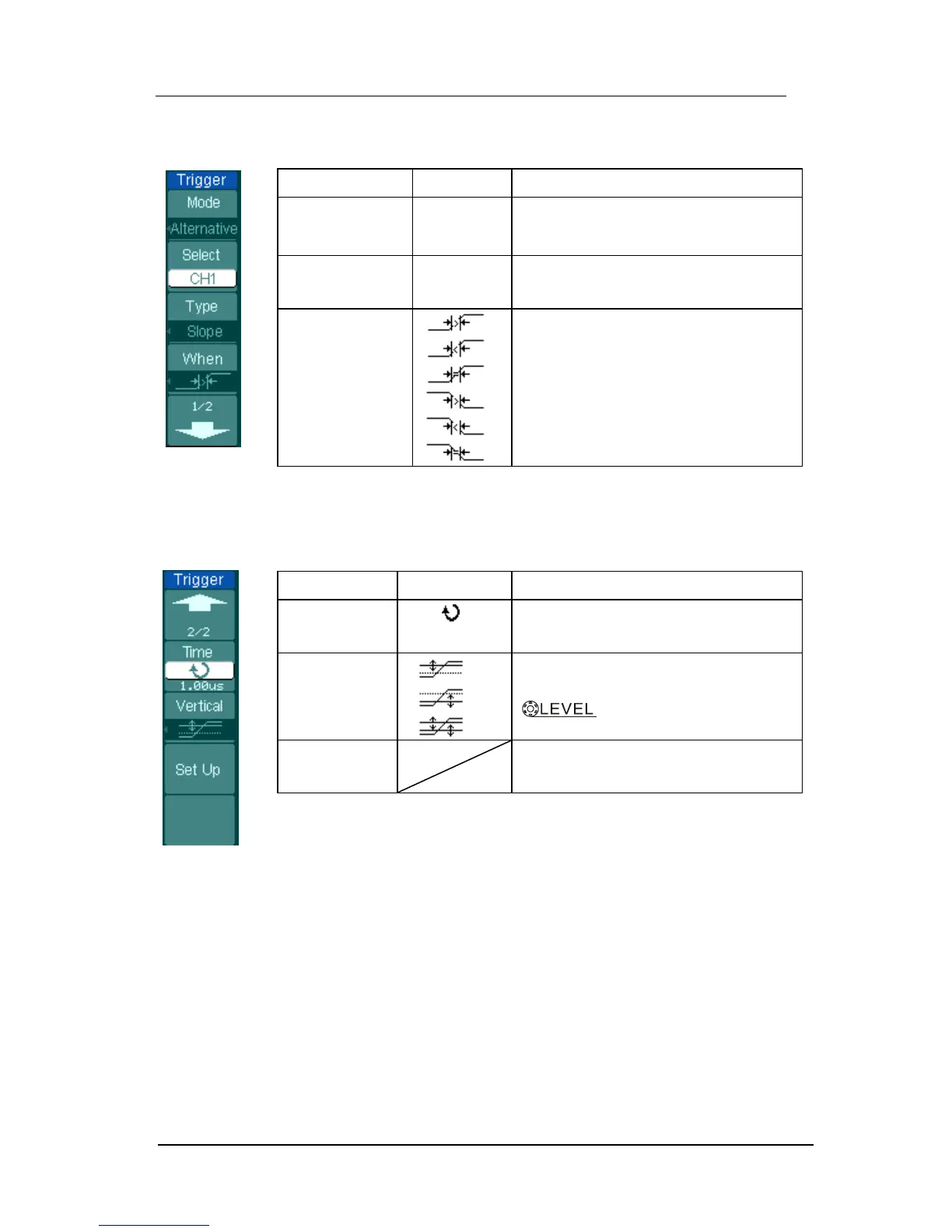

Figure 2-55 Table 2-31 The Alternative menu (Trigger Type: Slope Page 1/2)
Menu
Settings
Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type
Slope
Set Slope Trigger for the vertical
channel
When
Set trigger condition
Figure 2-56 Table 2-32 The Alternative menu (Trigger Type: Slope Page 2/2)
Menu
Settings
Comments
Time
<Time Set >
Set slope time
Vertical
Select the level to be adjusted by
Set Up
To go to set up menu. See table
2-38
