Chapter 7 Protocol Decoding RIGOL
DS1000Z-E User Guide 7-5
Order: select the display type of decoding result in the event table to "Ascend"
or "Descend".
Export: if a USB storage device (FAT32 format, flash memory) is currently
connected to the instrument, press this softkey to export the data table to the
external USB storage device in CSV format ("Packets" is selected) or HEX format
("Payload" or "Details" is selected).

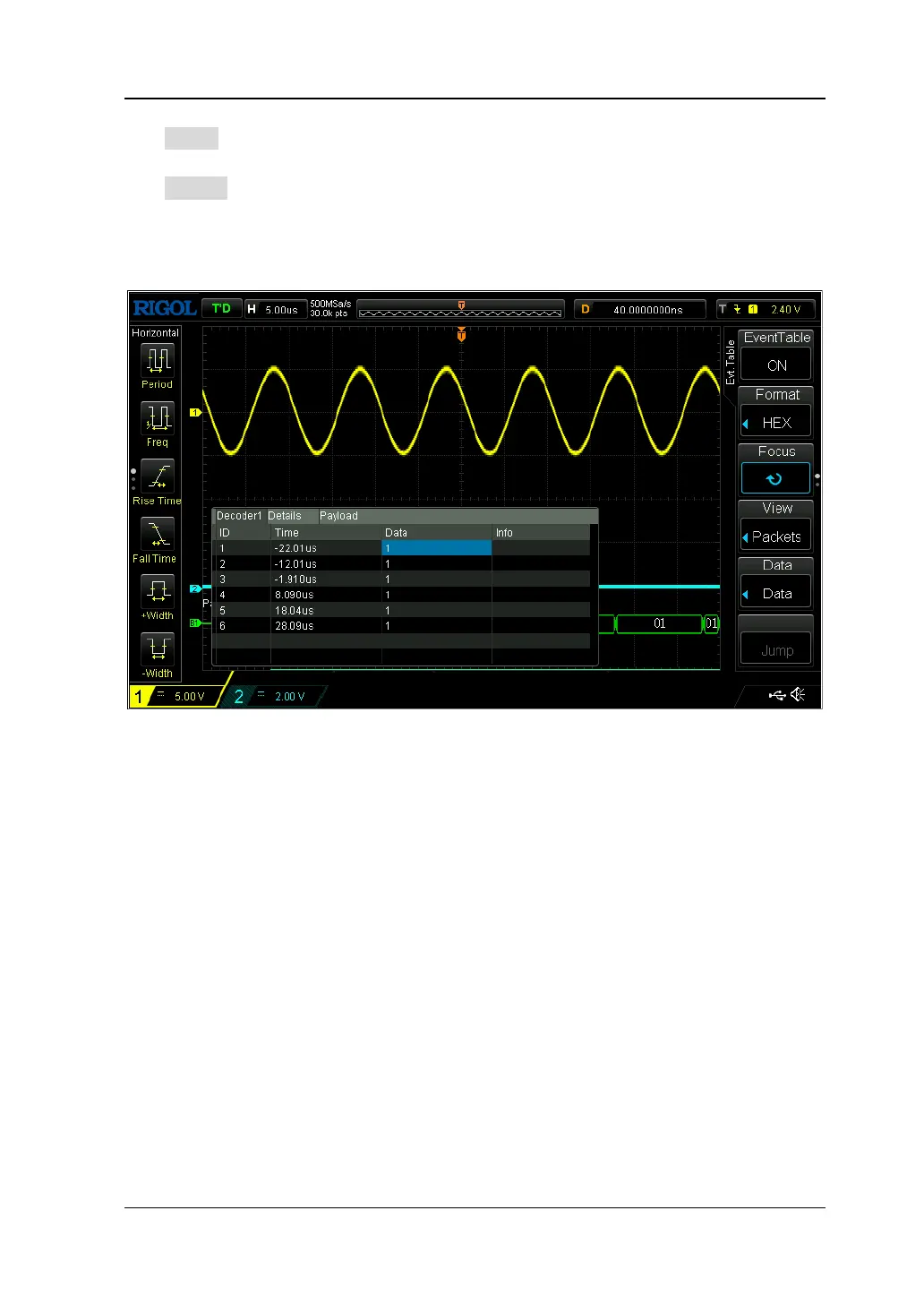

Figure 7-2 Parallel Decoding Event Table
