Rigol DS1054 User Manual

RIGOL
DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test. RIGOL
provides DS1000Z Plus with the RPL1116 logic probe option. To realize
convenient and flexible detection of signals, two connection methods for the
signal under test are available. For the details, please refer to the
RPL1116 Logic
Probe User Guide
.

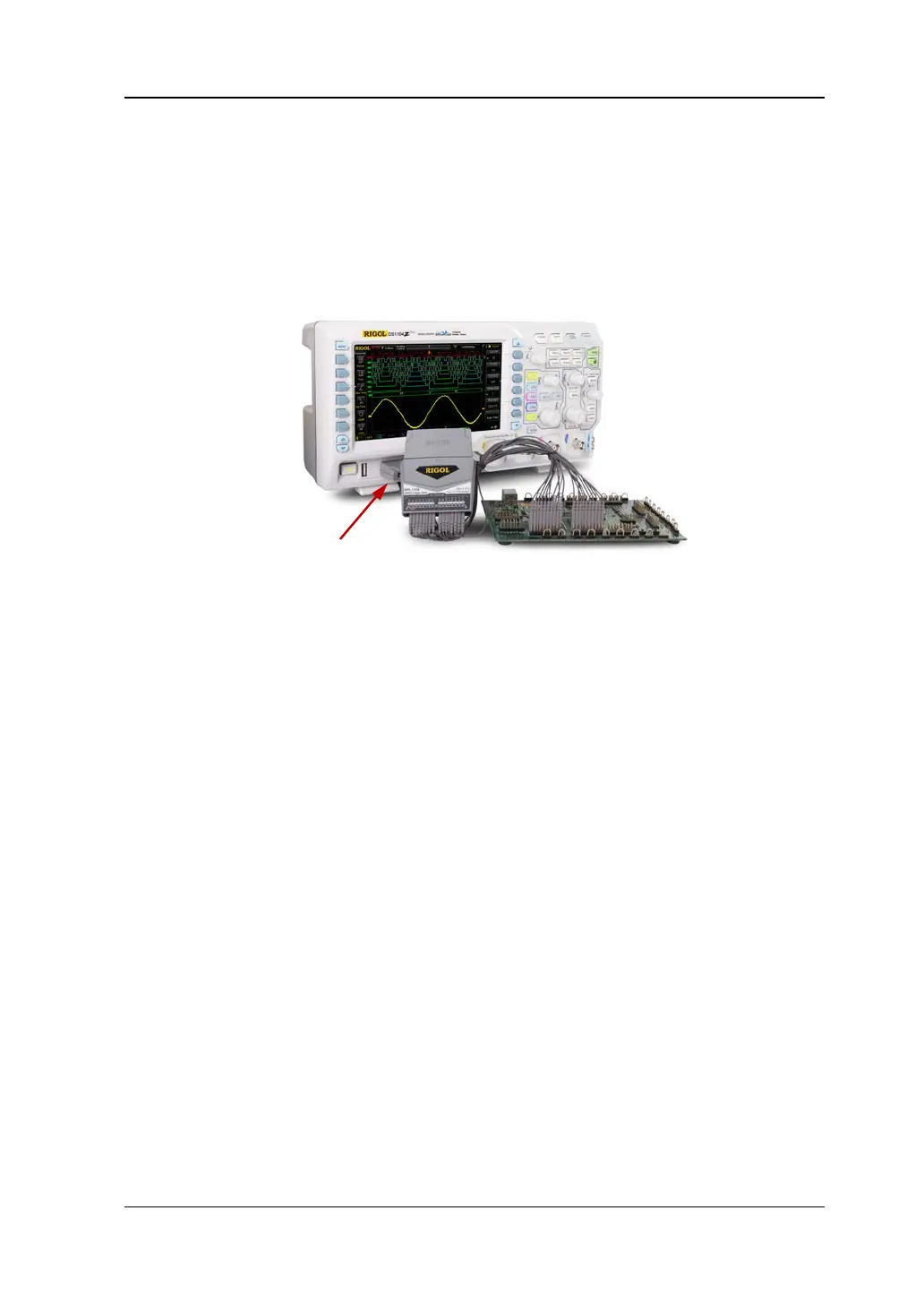

Figure 6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plugging. Please do
not insert or pull out the logic probe when the instrument is in power-on state.
Digital Channel Input Terminal

Rigol DS1054 Specifications

General

Bandwidth	50 MHz
Channels	4
Sample Rate	1 GSa/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Display Resolution	800x480 pixels
Interfaces	USB Host, USB Device, LAN
Input Coupling	DC, AC, GND
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Waveform Capture Rate	30, 000 wfms/s
Input Impedance	1 MΩ ± 2%
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
