Rigol DS1054 User Manual

RIGOL
DS1000Z Quick Guide
7
Probe Compensation
When the probes are used for the first time, you should compensate the probes to
match the input channels of the oscilloscope. Non-compensated or poorly
compensated probes may cause measurement inaccuracy or errors. The probe
compensation procedures are as follows:
1. Perform Step 1, 2, 3 and 4 specified in "Function Inspection".
2. Check the displayed waveforms and compare them with the waveforms in the
following figure.

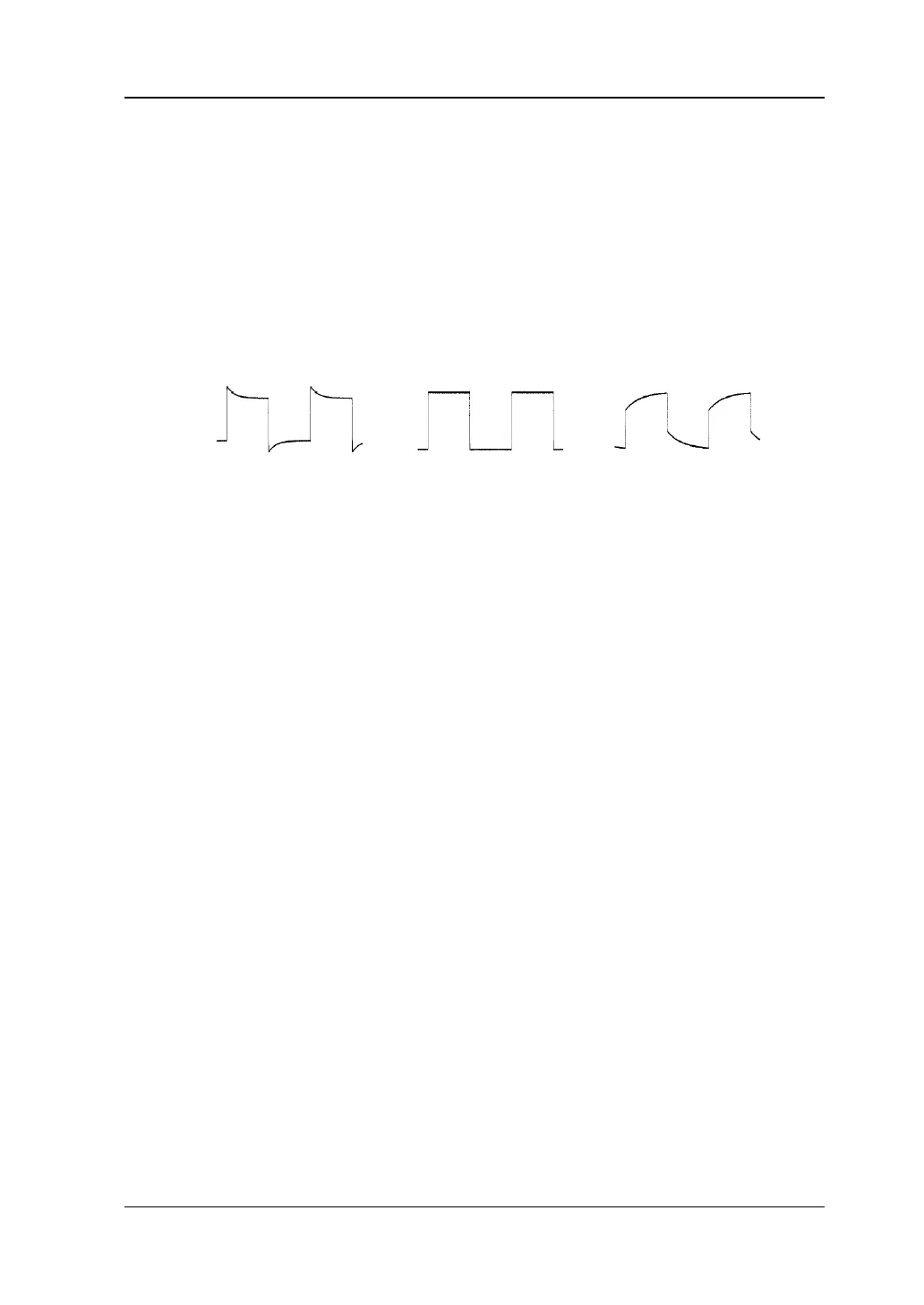

Figure 9 Probe Compensation
3. Use a nonmetallic driver to adjust the low-frequency compensation adjustment
hole on the probe until the displayed waveform is displayed as "Perfectly
compensated" in the figure above.
Over compensated Perfectly compensated Under compensated

Rigol DS1054 Specifications

General

Bandwidth	50 MHz
Channels	4
Sample Rate	1 GSa/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Display Resolution	800x480 pixels
Interfaces	USB Host, USB Device, LAN
Input Coupling	DC, AC, GND
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Waveform Capture Rate	30, 000 wfms/s
Input Impedance	1 MΩ ± 2%
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
