Rigol DS1054 User Manual

RIGOL
8 DS1000Z Quick Guide
Front Panel Overview

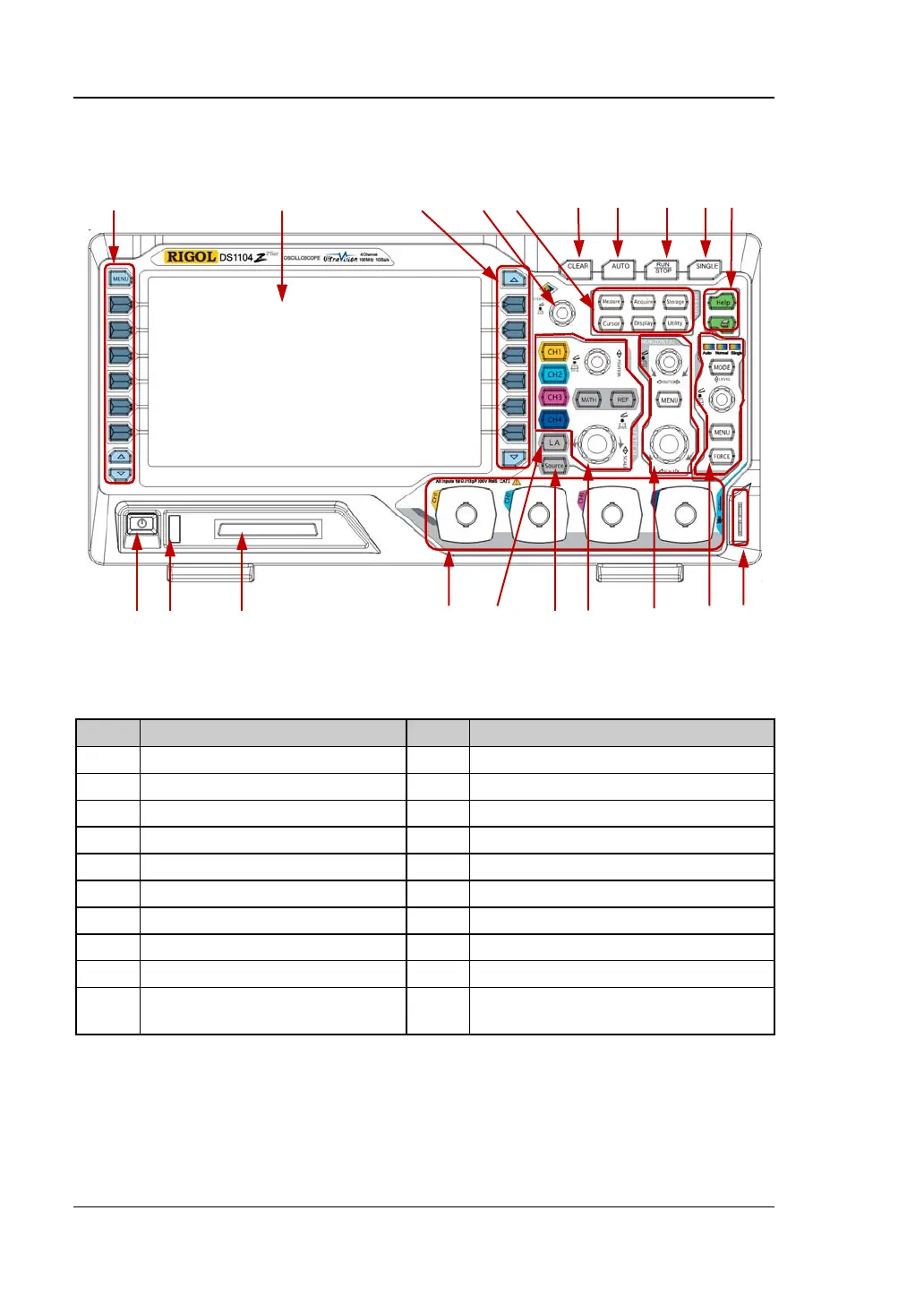

Figure 10 Front Panel Overview
Table 1 Front Panel Description
No.
Description
No.
Description
1
Measurement Menu Softkeys
11
Power Key
2
LCD
12
USB Host Interface
3
Function Menu Softkeys
13
Digital Channel Input Interface
[1]
4
Multifunction Knob
14
Analog Channel Input Interface
5
Common Operation Keys
15
Logic Analysis Control Key
[1]
6
CLEAR
16
Signal Source
[2]
7
AUTO
17
VERTICAL Control
8
RUN/STOP
18
HORIZONTAL Control
9
SINGLE
19
TRIGGER Control
10 Help/Print 20
Probe Compensation Signal
Output Terminal/Ground Terminal
Note
[1]
: Only applicable to DS1000Z Plus.
Note
[2]
: Only applicable to digital oscilloscopes with source channels.
3 4 5 6 7 8 9 10
1 2
11 12 13 14 15 16 17 18 19 20

Rigol DS1054 Specifications

General

Bandwidth	50 MHz
Channels	4
Sample Rate	1 GSa/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Display Resolution	800x480 pixels
Interfaces	USB Host, USB Device, LAN
Input Coupling	DC, AC, GND
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Waveform Capture Rate	30, 000 wfms/s
Input Impedance	1 MΩ ± 2%
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
