6 DS1000Z Quick Guide

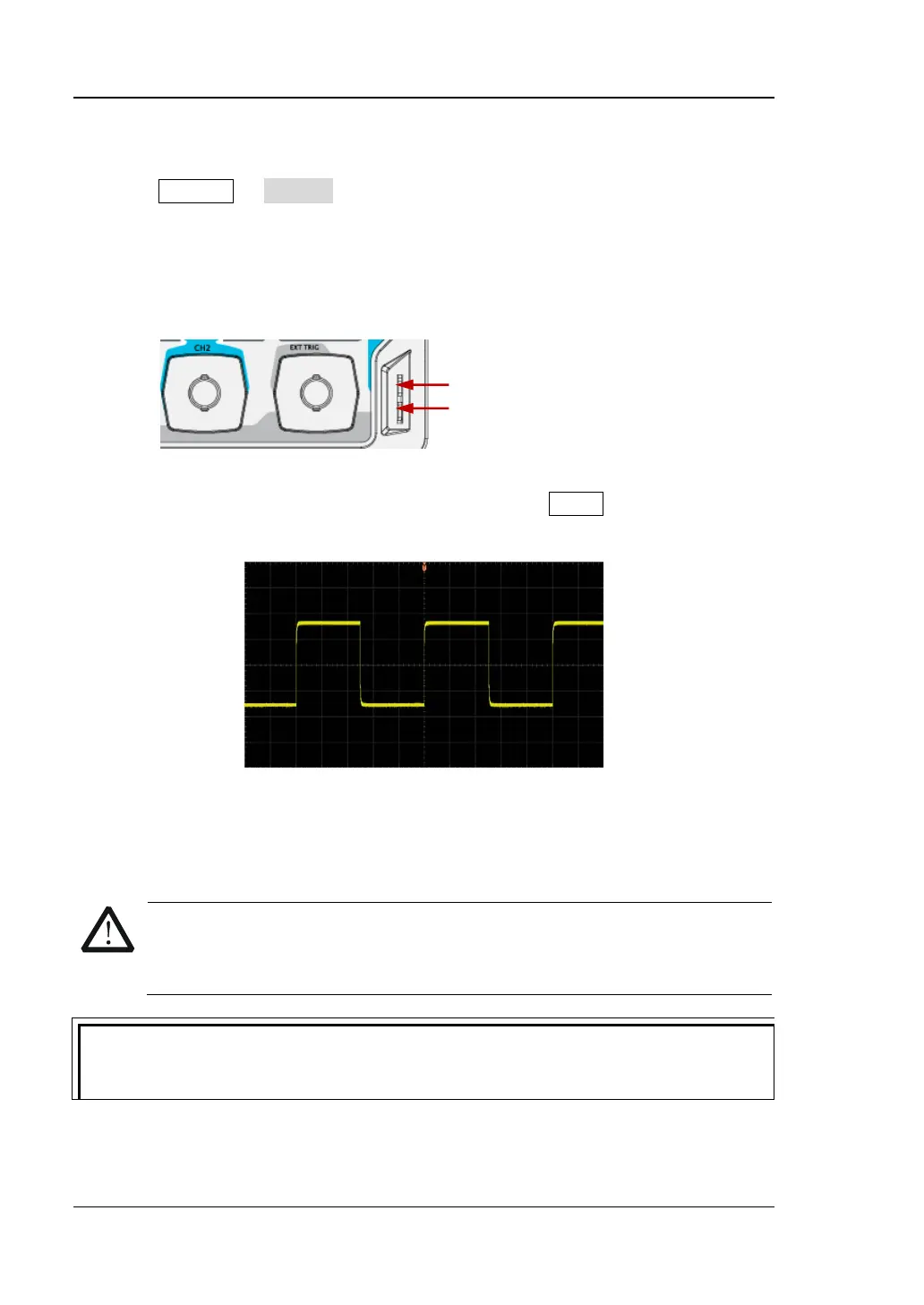

Function Inspection
1. Press Storage  Default to restore the oscilloscope to its default
configuration.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as shown
in the figure below.
3. Use the probe to connect the input terminal of CH1 and the "Compensation
Signal Output Terminal" of the oscilloscope.
Figure 7 To Use the Compensation Signal
4. Set the attenuation on the probe to 10X. Then press AUTO.
5. Observe the waveform on the display. In normal condition, the display should be
a square waveform as shown in the figure below:
Figure 8 Square Waveform
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform "Probe
Compensation".
WARNING
To avoid
electric shock during the use of probe, please make sure that the
insulated wire of the probe is in good condition. Do not touch the metallic
part of the probe when the probe is connected to high voltage source.
Tip
The signal output from the probe compensation connector can only be used for
probe compensation adjustment and cannot be used for calibration.
Compensation Signal Output Terminal
Ground Terminal

Rigol DS1054 Specifications

General

Bandwidth	50 MHz
Channels	4
Sample Rate	1 GSa/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Display Resolution	800x480 pixels
Interfaces	USB Host, USB Device, LAN
Input Coupling	DC, AC, GND
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Waveform Capture Rate	30, 000 wfms/s
Input Impedance	1 MΩ ± 2%
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
