Chapter 14 Store and Recall RIGOL
MSO1000Z/DS1000Z User’s Guide 14-7
Disk Management
Press Storage  DiskManage to turn on the disk management interface as shown
in Figure 14-1 and use to select the desired disk. The disk currently selected is
displayed in blue shading. Press down
to open the disk selected.
Execute the following operations through the disk management menu:
 To Select File Type
 To Create a New File or Folder
 To Delete a File or Folder
 To Rename a File or Folder
 To Clear the Local Memory

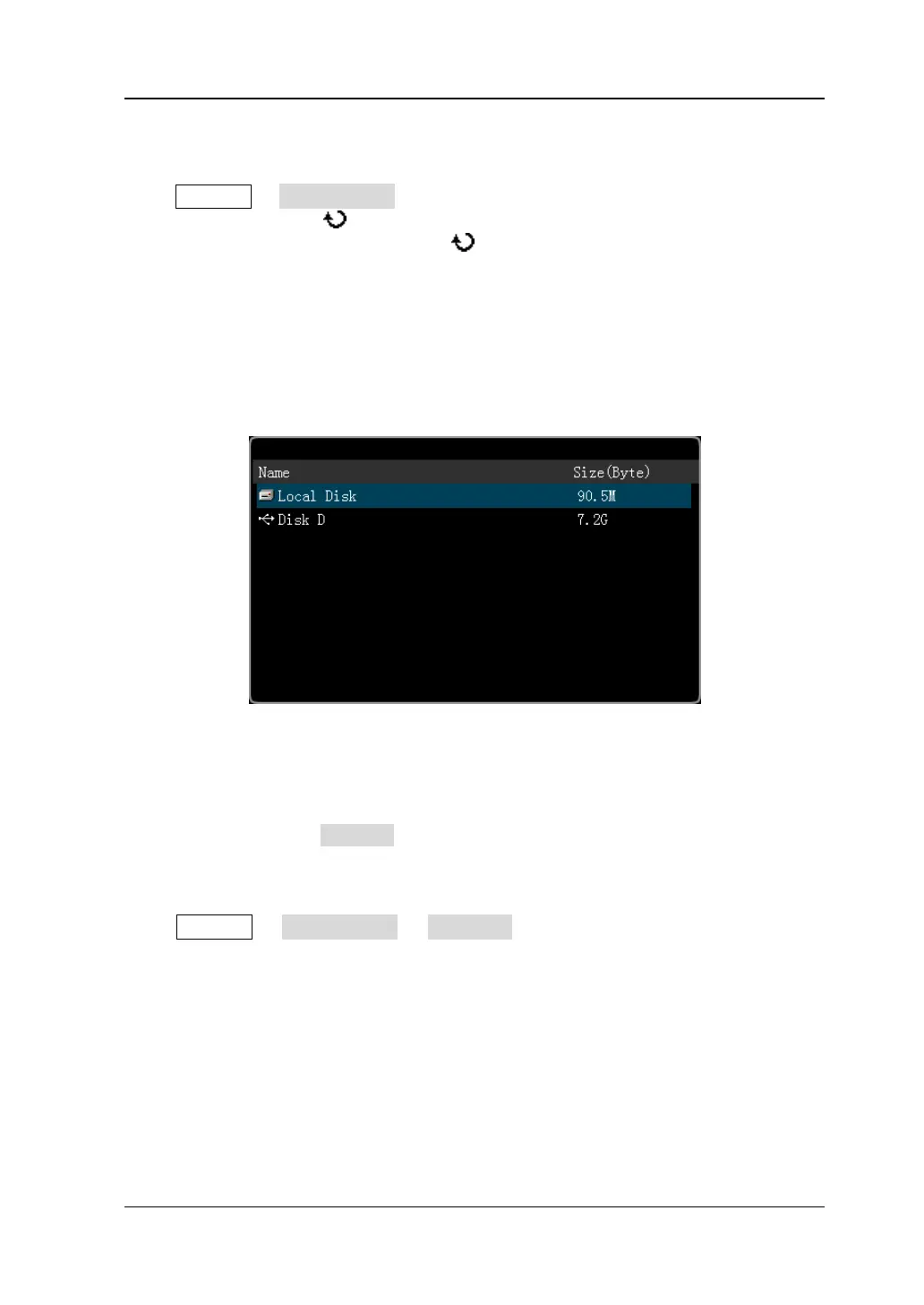

Figure 14-1 Disk Management Interface
To Select File Type
Except the file types in Storage, the oscilloscope can also display files for advanced
applications such as mask file of the Pass/Fail test (*.pf), upgrade file (.gel) and
reference waveform file (*.ref).
Press Storage  DiskManage  File Type to select the desired file type. The
default is "*.*". Under the current directory, only files of which the suffix of the file
name matches with the file type selected will be displayed in the current disk.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1104Z Plus Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Connectivity	USB Host, USB Device, LAN, AUX
Vertical Resolution	8 bits
Power Supply	100-240 V AC, 45-440 Hz
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope
Input Impedance	1 MΩ ± 2%
