RIGOL Chapter 1 Disassemble and Assemble
1-2 MSO1000Z/DS1000Z Service Guide
Exploded View of the Device
You need to get a basic understanding of the main parts of the instrument before
disassembling and assembling the instrument. When disassembling or assembling
the instrument, please follow the procedures and avoid scratching the part surface.
This manual mainly introduces the disassemble and assemble methods of
MSO1000Z/DS1000Z series digital oscilloscope. The exploded view of
MSO1000Z/DS1000Z (take MSO1000Z-S as an example) is as shown in Figure 1-1.

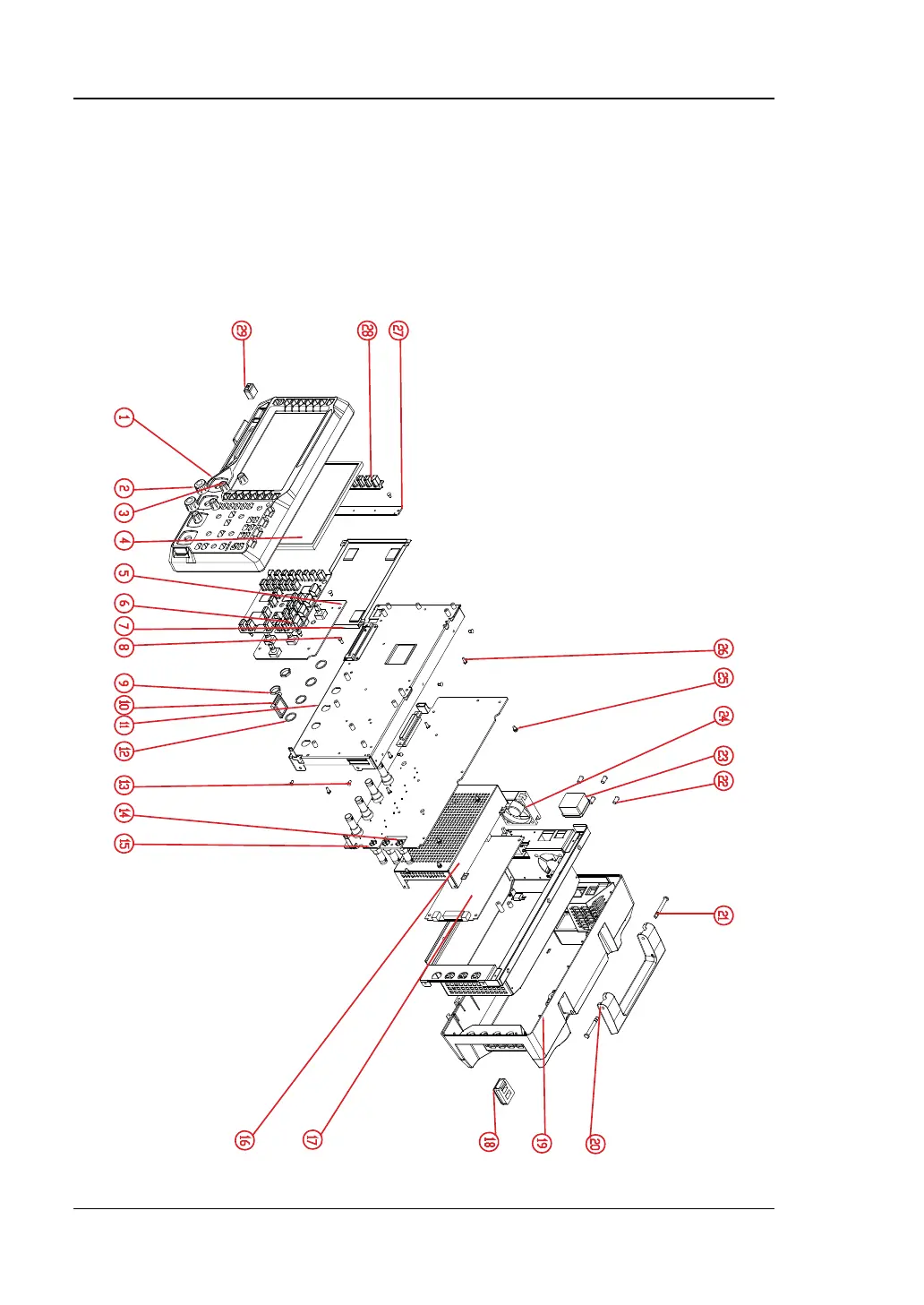

Figure 1-1 Exploded View of MSO1000Z/DS1000Z
