Chapter 1 Disassemble and Assemble RIGOL
MSO1000Z/DS1000Z Service Guide 1-5
To Disassemble the Rear Metal Cover

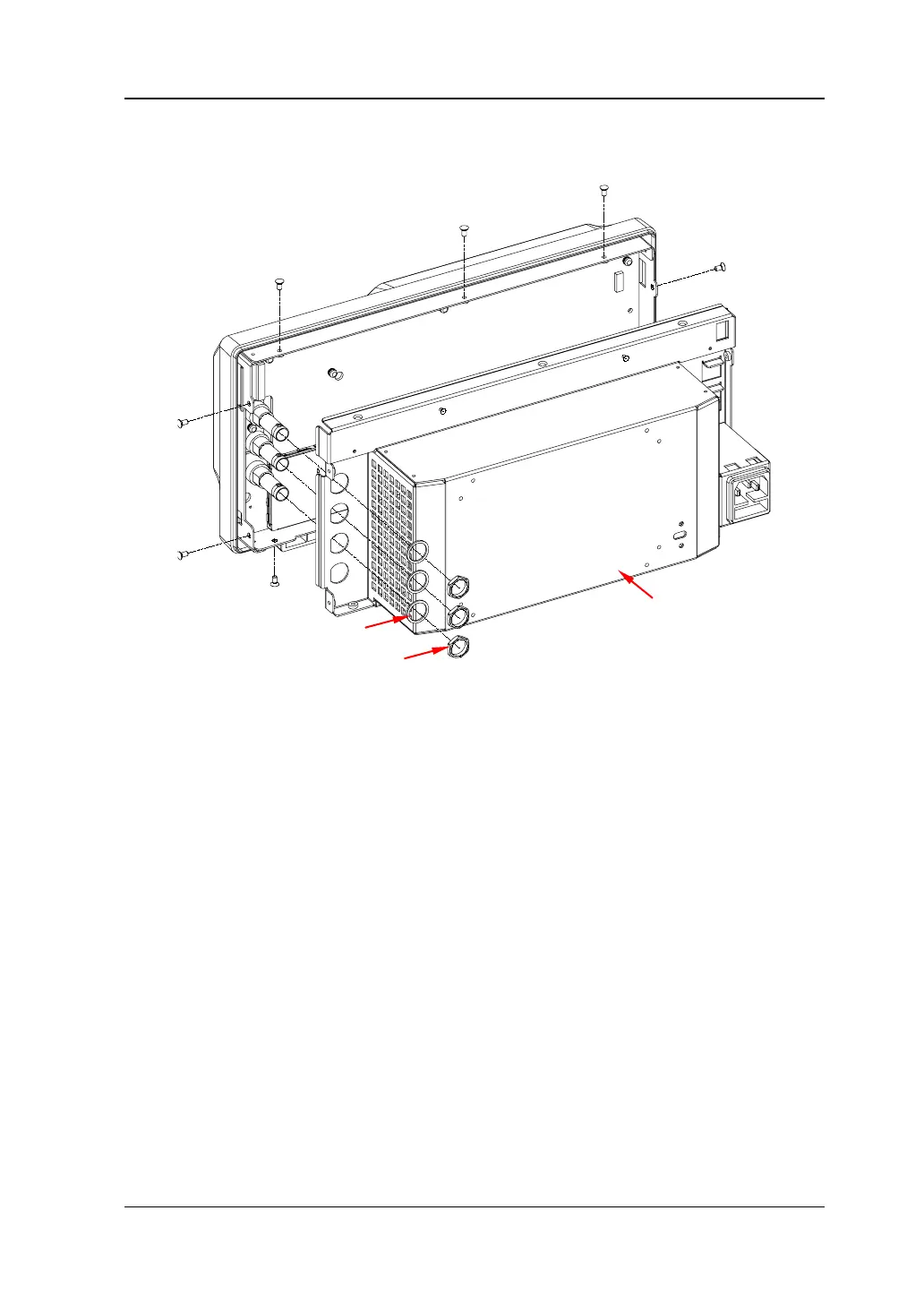

Figure 1-3 To Disassemble the Rear Metal Cover
Part Explanation:
① 11 screws (torx countersunk head screw M3*6) fixing the front metal plate and
rear metal cover (the positions of some of the screws are not marked out in the
figure above and please disassemble them according to their actual positions).
Disassemble Steps:
1. Remove the 3 (for MSO1000Z-S/DS1000Z-S) nuts and washers at the BNC ports
on the rear metal cover using the BNC socket. Note that for
MSO1000Z/DS1000Z, there are only one BNC nut and washer.
2. Remove the 11 screws (①) fixing the front metal plate and rear metal cover
using the screwdriver (T10).
3. Remove the power cord and fan cable connected to the main board and take off
the rear metal cover gently.
Rear Metal Cover
①
①
①
①
①
①
①
BNC Washer
BNC Nut

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
