RIGOL Chapter 1 Disassemble and Assemble
1-8 MSO1000Z/DS1000Z Service Guide
To Disassemble the Front Panel

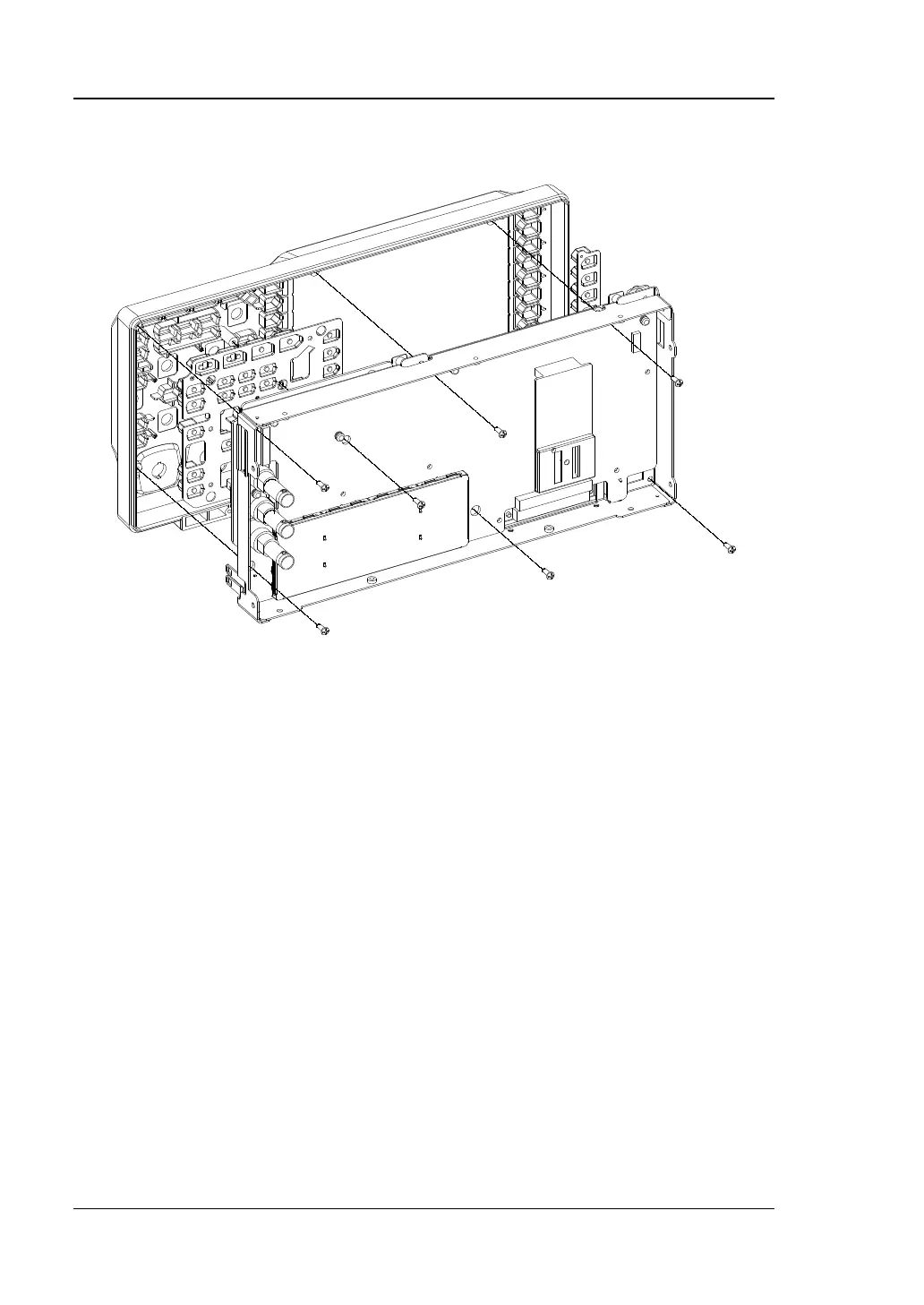

Figure 1-5 To Disassemble the Front Panel
Part Explanation:
① 7 screws (torx countersunk head self tapping screw M3*8) fixing the front panel.
Disassemble Steps:
1. Remove the 7 screws (①) fixing the front panel using the screwdriver (T10).
2. Take off the front panel gently.
①
①
①
①
①
①
①

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
