RIGOL Chapter 1 Disassemble and Assemble
1-4 MSO1000Z/DS1000Z Service Guide
To Disassemble the Rear Cover

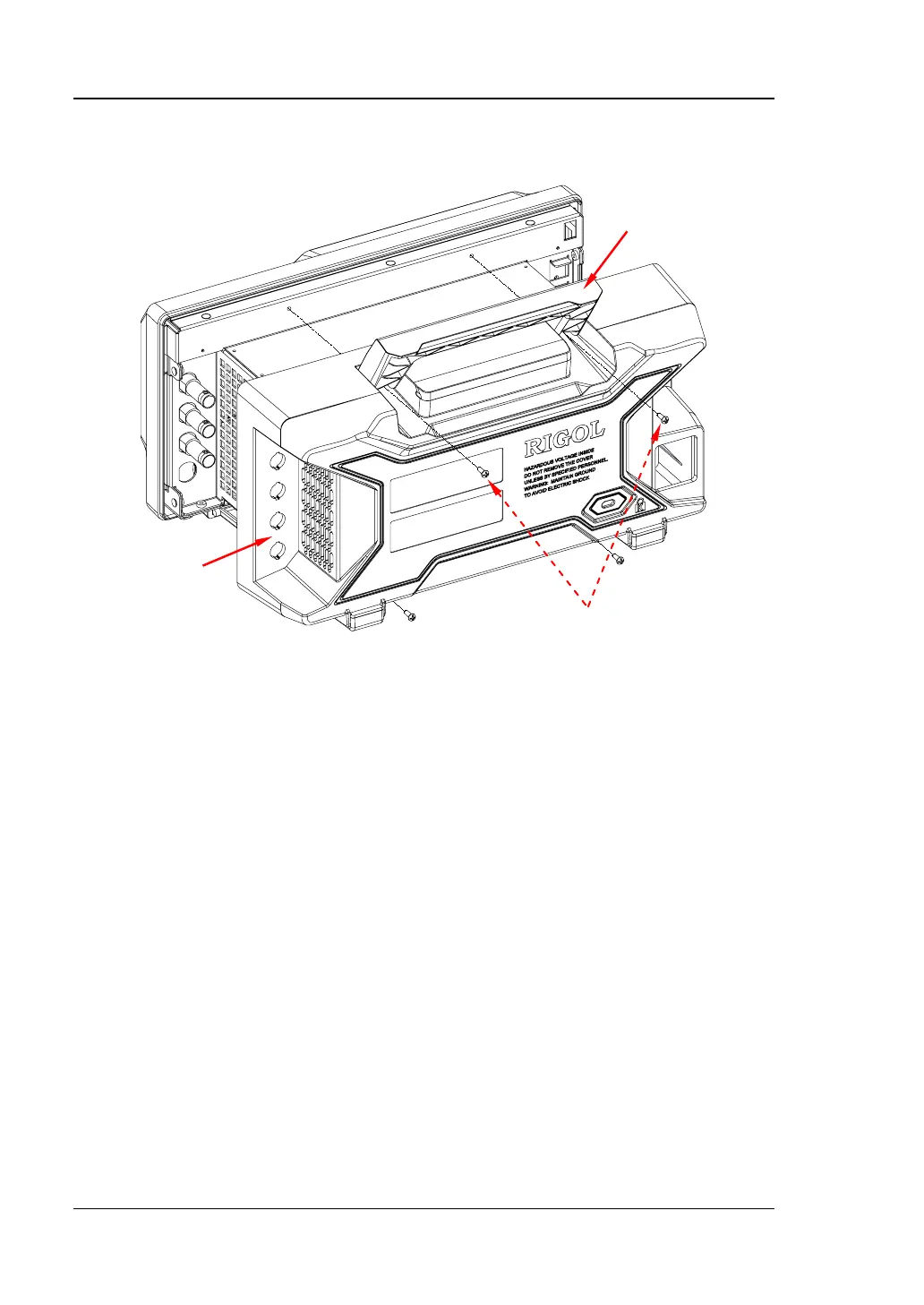

Figure 1-2 To Disassemble the Rear Cover
Part Explanations:
① 2 screws (one on each side, torx pan head screw M3*10) at the handle groove.
② 2 screws (one on the inner side of the left/right supporting foot, torx pan head
self tapping screw M3*8) at the front supporting feet at the bottom of the cover.
Disassemble Steps:
1. Remove the 2 screws (①) at the handle groove using the screwdriver (T10).
2. Remove the 2 screws (②) at the front supporting feet at the bottom of the cover
using the screwdriver (T10).
3. Take off the rear cover gently.
Rear Cover
①
②
②
Handle

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
