Chapter 1 Disassemble and Assemble RIGOL
MSO1000Z/DS1000Z Service Guide 1-7
To Disassemble the Knobs

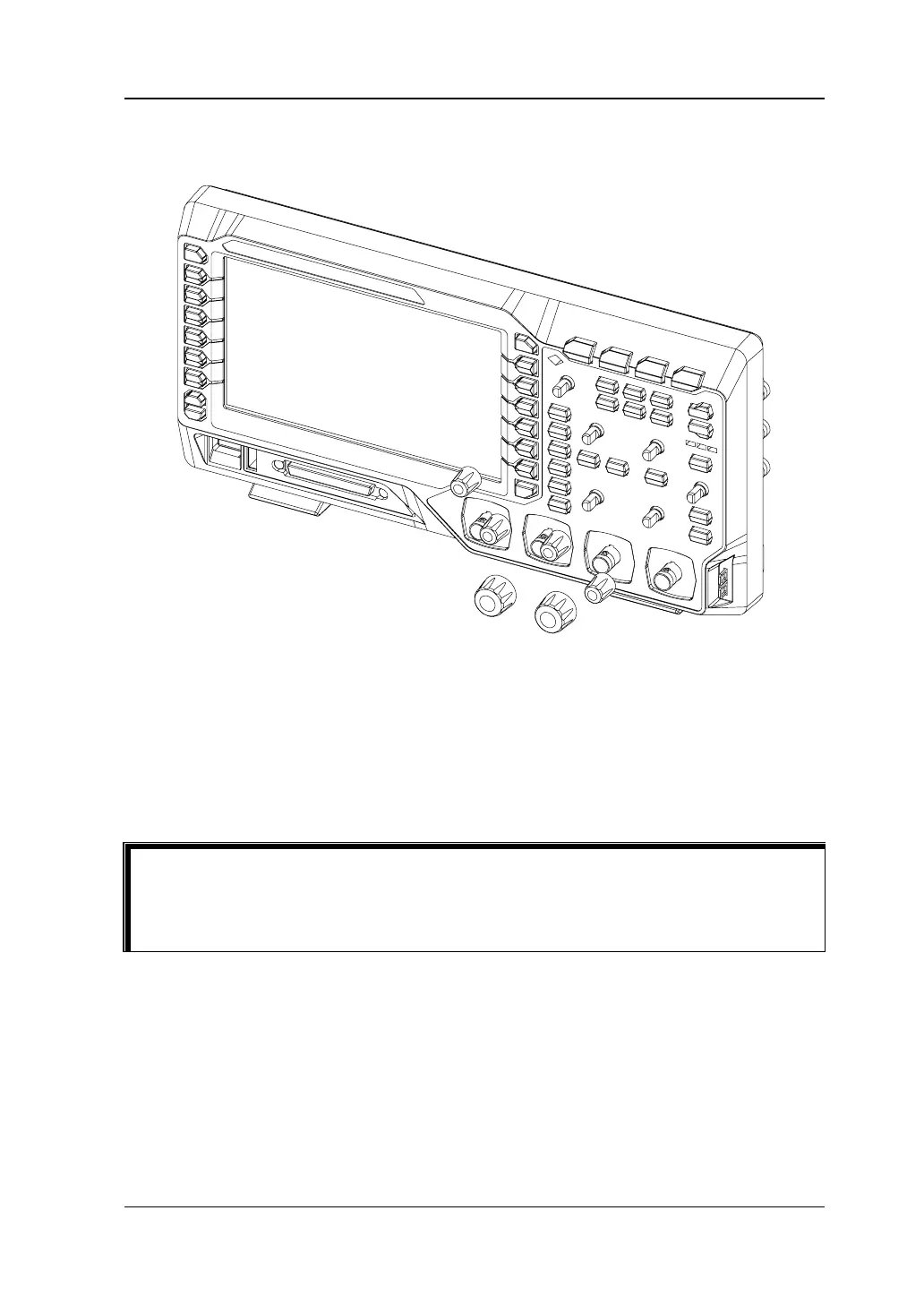

Figure 1-4 To Disassemble the Knobs
Part Explanation:
① 6 knobs
Disassemble Step:
Disassemble the 6 knobs (①).
Tip:
It is recommended that you use a lever-like tool to pry out the knob when
disassembling the knob and place a soft pad at the force bearing point to avoid
damaging the key film and knob.
①
①
①
①
①
①
