14

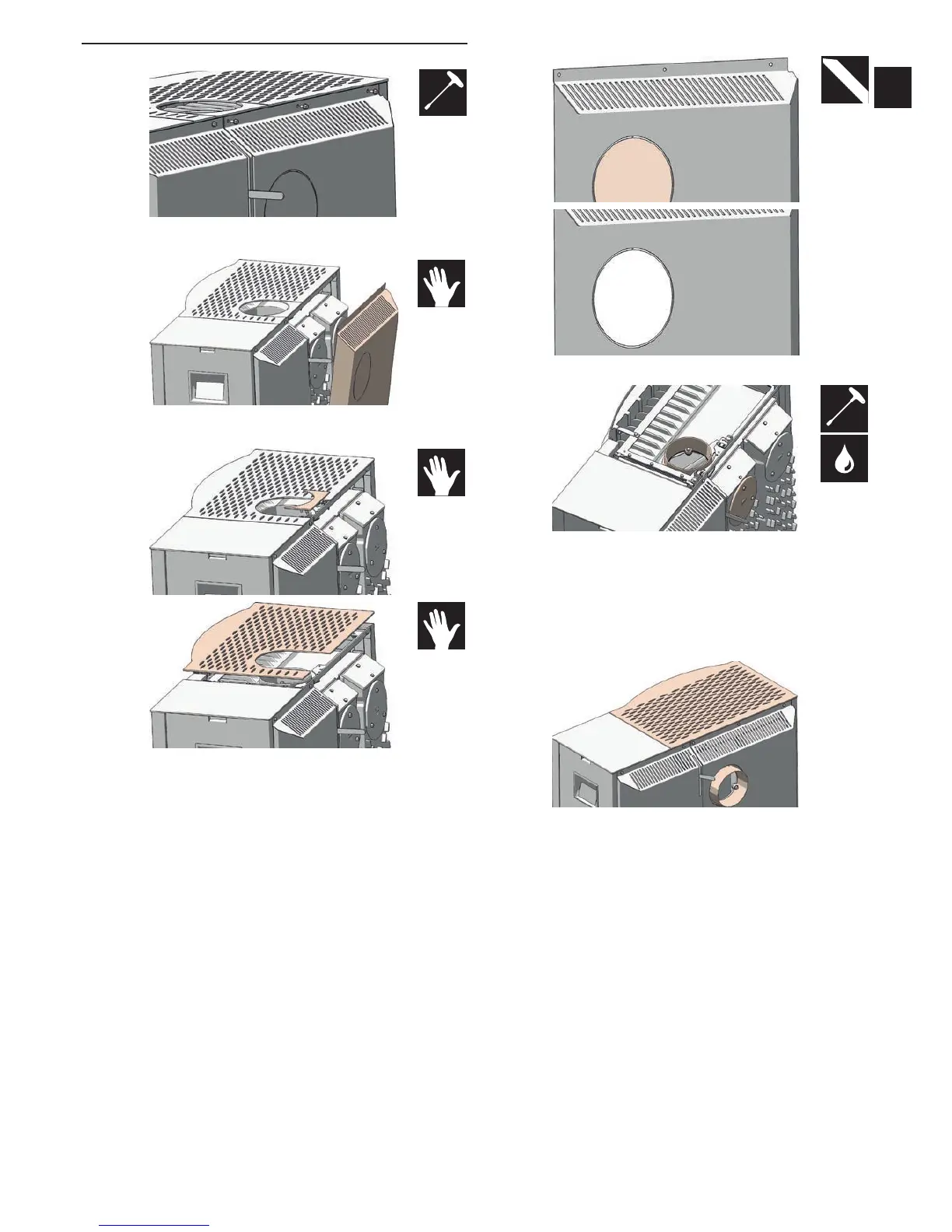

Conversion to flue pipe connection rear
Remove the left rear wall by opening the 3 top hex head bolts.
The rear wall is mounted at the floor, it is removed by pressing it back slightly
and lifting.
Lift the two covers of the stove by carefully pressing upwards and place them
on a clean base.
Cut the perforated opening in the left rear wall with a hacksaw and deburr the
edges with a round file.
Swap the flue connections and the cooking cover.
Re-assemble the parts in reverse order.
The flue pipe connection rear option permits use of a closed cover (without flue
pipe recess). The closed cover must be ordered separately. You dealer can
provide further information.
With the option for rear flue connection you have the possibility to set up a
closed lid. The closed lid must be ordered separately. More detailed information
can be obtained from your dealer.
