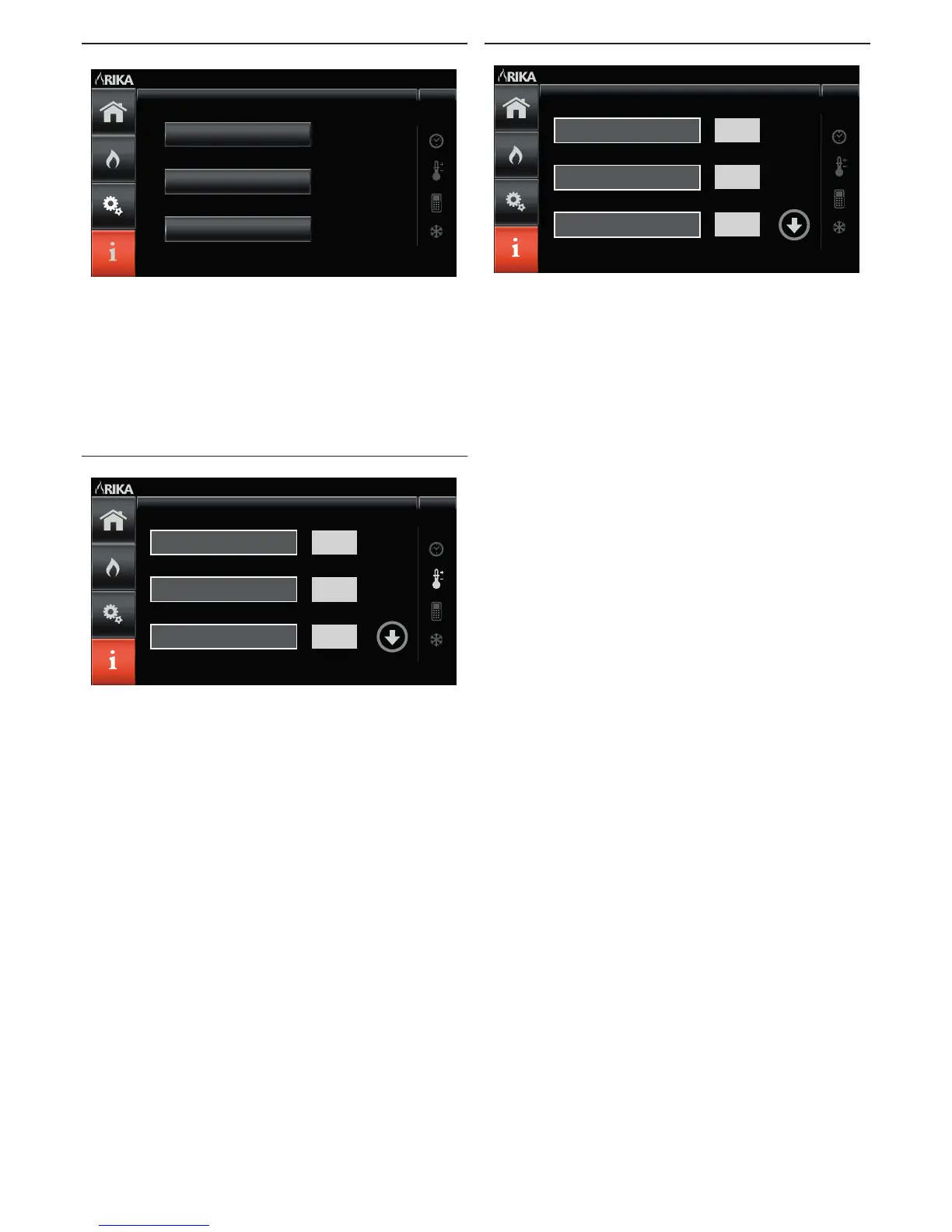

INFO - Main Menu
The most important current parameters can be viewed in INFO – main menu.
Parameters
Info Su 15.03.2015
15:55
Input
Output
SUBMENU ITEMS
Inputs
All available sensor data and switch statuses are shown.
Outputs
All components controlled by the microprocessor are shown.
Parameters
All operating parameters are shown
INFO – Inputs
328
22
ON
Input Su 15.03.2015
15:55
Flame Temp [°C]
Room Temp [°C]
External Request
Flame Temp [°C] (Flame Temperature)
Display of the current temperature of the combustion chamber [°C]
Room Temp [°C] (Room Temperature)
(only with connected room sensor)
Display of the current ACTUAL temperature in the room in degree celsius.
External Request
Displays whether an external demand is active (ON) or inactive (OFF).
Grid Contact
Displays whether the dump grate is in the horizontal position (ON).
INFO – Outputs
404
64
0
Output Su 15.03.2015
15:55
Discharge Motor [‰]
Discharge Current
Dischargem. Error
Discharge Motor [‰]
Current output of screw motor conveying pellets out of the container
(range: 0…1000)
Discharge Current
The current consumption of the discharge motor, shown in milliampere
(range 0-120)
Dischargem. Error (Discharge Motor Error)
The current consumption of the discharge motor was exceeding the maximum
value for normal operation, each second is counted. Reaching 10 seconds the
error „Dischargemotor jammed“ is applicated.
Insertion Motor [‰]
Current output of screw motor conveying pellets to the fire trough
(range: 0…1000)
Insertion Current
The current consumption of the insertion motor, shown in milliampere
(range 0-120)
Insertionm. Error (Insertion Motor Error)
The current consumption of the insertion motor was exceeding the maximum
value for normal operation, each second is counted. Reaching 10 seconds the
error „Insertion motor jammed“ is applicated.
ID Fan [1/s] (Induced Draft Fan)
Current speed of the flue gas blower. (Range: 0…2500)
Grid motor
Shows whether the turning grid motor is actuated (ON) or not (OFF).
Ignition
Shows whether the ignition is actuated (ON) or not (OFF).
Air flaps [‰]
Current air flap position (range: 0…1000)
