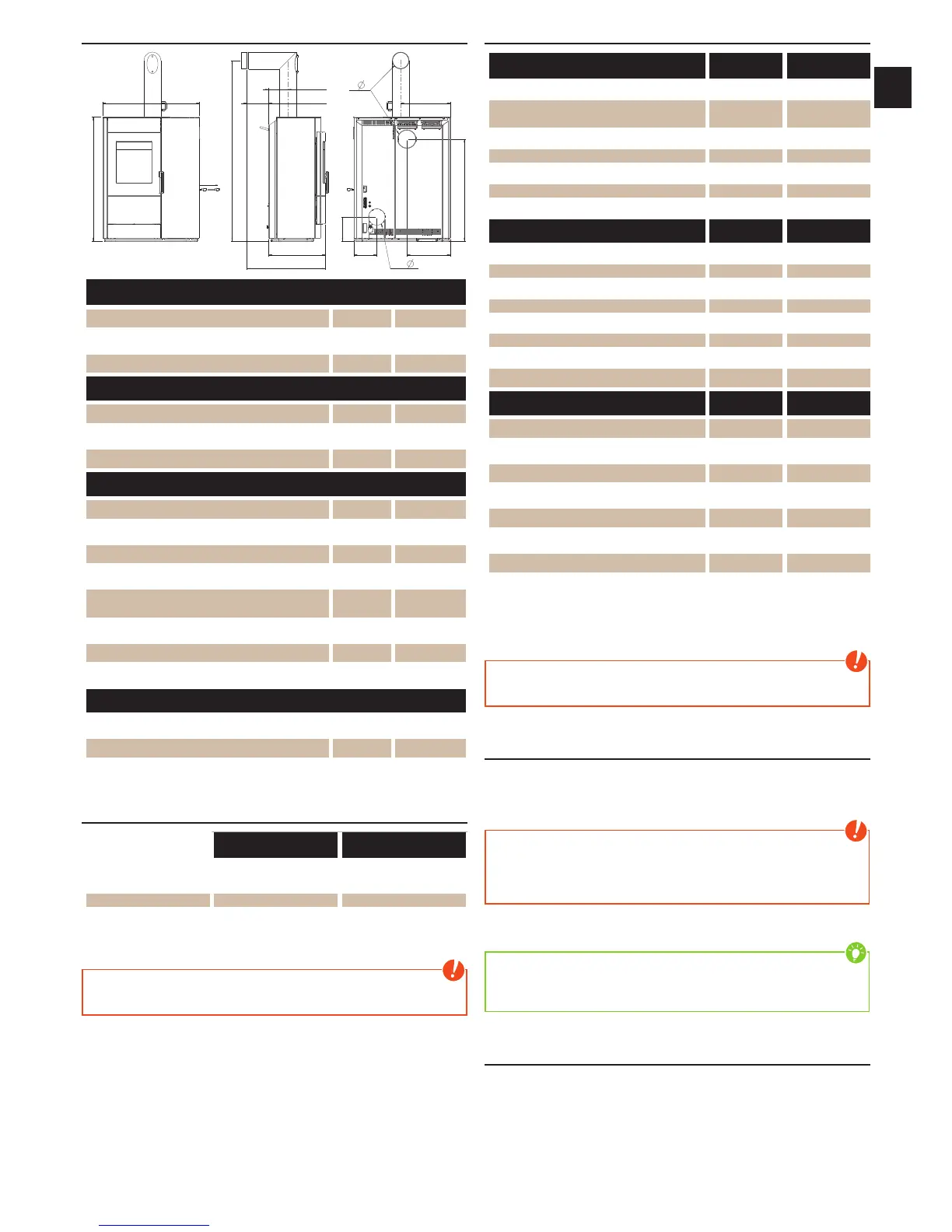

Dimensions
R-H
F-S R-S
RO-S
H
B
T
RO-H
RO-T1
F-H
RO-T2
RO-T3
F-
R-
~20cm
Dimensions
Height [mm] 1132
Width [mm] 882
Corpus depth [mm] 515
Weight
Weight without shell [kg] 305
Weight with shell [kg] 345
Weight with soap stone sideways (optional) [kg] 385
Flue Pipe Connection
R - Ø Flue pipe outlet [mm] 150
RO - H Original angle pipe connection height [cm] 165
RO - T1 Original angle pipe total depth [cm] 71
RO - T2 Original angle pipe distance to rear wall [cm] 20
RO - T3 Deapth from rear wall to middle of flue
pipe
[cm] 18
RO - S Original angle pipe side distance [cm] 45
R - H Rear connection height [cm] 93
R - S Rear connection side distance [cm] 40
Fresh Air Connection
F - Ø Diameter [mm] 125
F - H Connection height [cm] 22
F - S Side distance [cm] 21
Amount of fuel
Nominal Load Part Load
Log operation
2 logs á ~1,4kg
max. 25cm lenght
2 logs á ~0,7kg
max. 25cm lenght
Pellet operation ~2,4kg ~0,8kg
Burn time at full pellet
hopper
~ 14h ~ 43h
*Practical values may vary depending on pellet quality.
Note
Pellet consumption depends on the size of the pellets. The larger the pellet,
the slower the feed and vice versa.
Technical data
Description Measure Data
Heating capacity range [kW] 3 - 10
Room heating capacity depending on house
coating
[m³] 70 - 260
Fuel consumption [kg/h] bis 2,4
Pellet container lid capacity [l/kg] -/~34
Electric supply [V] 230V/50Hz
Average electrical input [W] ~ 20
Fuse [A] 2,5 T
Pellet Operation Measure Data
Heating capacity range [kW] 3 - 10
Efficiency in pellet mode [%] 91
CO
2
[%] 13,3
CO-emission on 13% O [mg/m
N
3
] 30
Dust emission [mg/m
N
3
] 10
Exhaust [g/s] 5,4
Exhaust temperature [°C] 178,9
Chimney draft requirement [Pa] 3
Log Operation Measure Data
Heating capacity range [kW] 5 - 10
Efficiency in log mode [%] 86
CO
2
[%] 9,7
CO-emission on 13% O [mg/m
N
3
] 792
Dust emission [mg/m
N
3
] 27
Exhaust [g/s] 10,1
Exhaust temperature [°C] 180,2
Chimney draft requirement [Pa] 12
The owner of small firing systems or the person authorised for the small
firing system is to keep the technical documentation and is to submit it to the
authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local
regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage.
However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness!
Report any deficiencies to your dealer immediately! Pay particular attention
during unpacking that the stone panels remain intact. Scratches to the
material can easily occur. Stone panels are excluded from the warranty
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated and may
therefore be burnt in your stove. The cardboard and film (PE) can be disposed
of via the municipal waste collection for recycling.
Electrical connection
The stove is supplied with an approx. 2m long connecting cable with a Euro-plug.
This cable is to be connected to a 230Volt/50Hz socket. The average electrical
power consumption is about 20 Watt in heating operation. And approx. 150
Watt during automatic ignition. The connection cable must be laid so that there
is no contact to any sharp edges or hot surfaces of the stove.
