Rinnai SPLIT SOLAR User Manual

Rinnai Australia - 13 - Solar Split Systems Operating / Installation Manual - Version 9 - 21/11/12
GLASS LINED ELECTRIC BOOSTED SYSTEMS

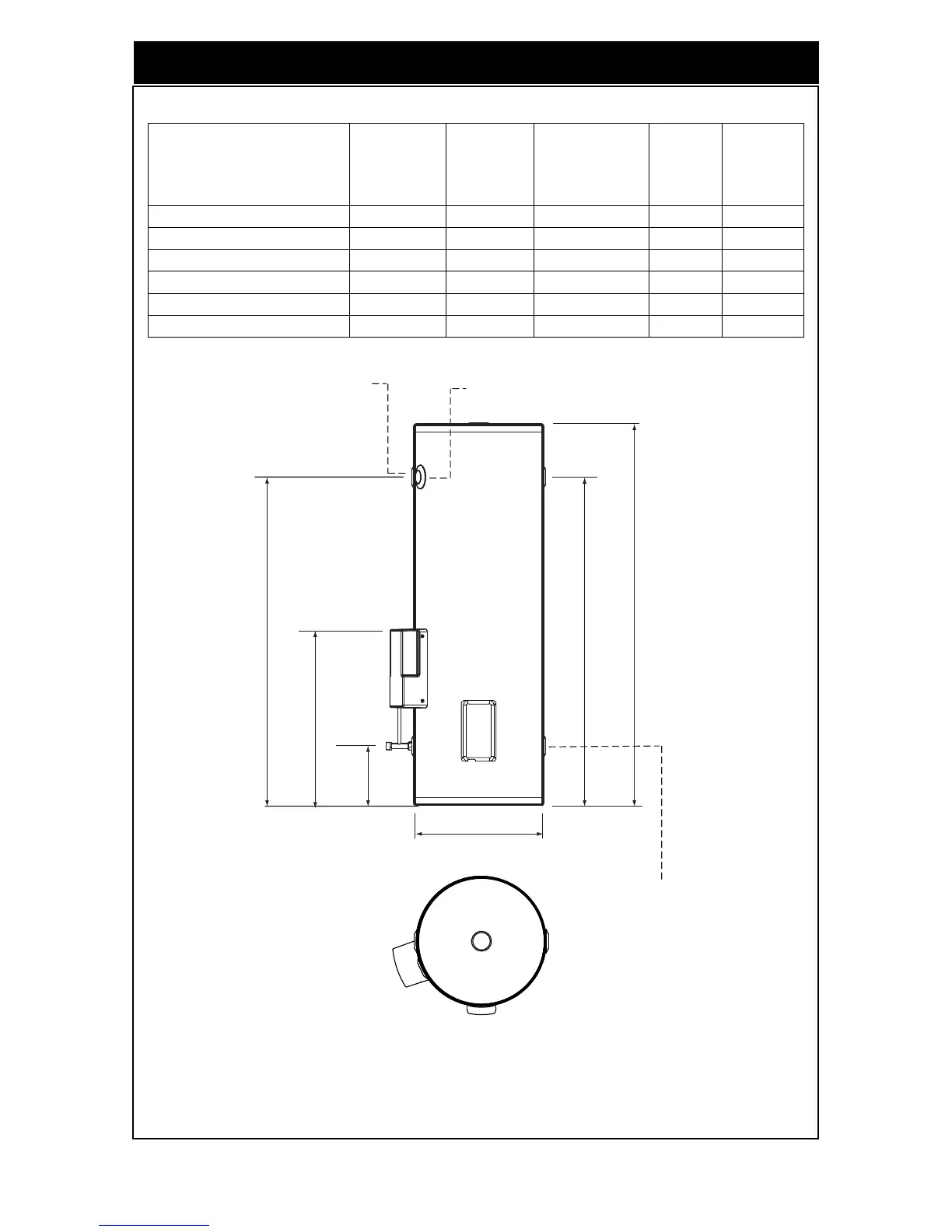

Figure 6 - Dimensional Drawing - Glass Lined Electric Boosted Split Systems
SE160
ESE160
SE200
ESE200
SE250SL
ESE250SL
SM250SL
ESM250SL
SE315
ESE315
SE315SL
ESE315SL
SM315SL
ESM315SL
PTR / Solar Return / Hot Water Outlet 1310 1605 1215 1200 1430
Flow line to Collectors 665 665 540 700 540
Cold Water Inlet 225 225 90 225 90
Cylinder Height 1530 1825 1475 1510 1695
Diameter 515 515 625 685 625
Weight Empty (kg) 71 83 93 100 109
PTR / SOLAR RETURN
COLD WATER INLET
CYLINDER DIAMETER
HOT WATER OUTLET
CYLINDER HEIGHT
P&TR VALVE
SOLAR
RETURN
FLOW LINE TO COLLECTORS
TEMPERATURE
SENSOR
DRY WELL
SPECIFICATIONS FOR STORAGE CYLINDERS
