Rinnai Australia - 27 - Solar Split Systems Operating / Installation Manual - Version 9 - 21/11/12
These frames are not suitable for use in cyclonic areas. For the correct frame for
use in cyclone areas, contact your local Rinnai Solar distributor.

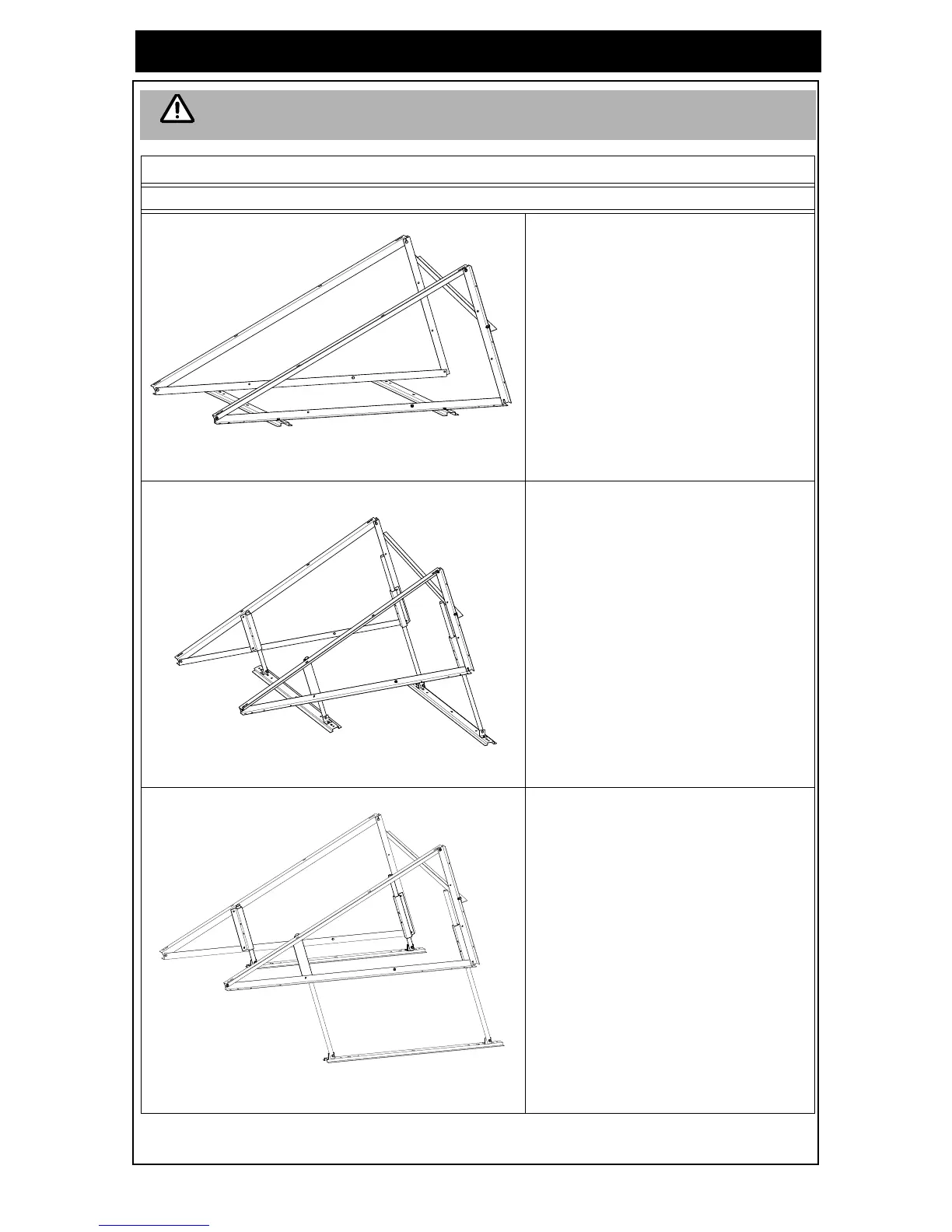

FRAMED INSTALLATIONS - FLAT, REVERSE & SIDE PITCH
Table 8 - Framed Installations
Figure 26 - Flat Roof Frames
• For use on a flat roof or where the roof
pitch is too low.
• This frame allows the Collectors to be
installed at a suitable inclination.
• Installation instructions are provided in
the Rinnai Frame Installation Manual.
Figure 27 - Reverse Pitch Roof Frames
• These comprise a split system flat roof
frame and a side/reverse pitch kit.
• They can be used when the Collectors
need to be installed in the reverse
direction to the direction the roof is facing.
• For example, using a reverse pitch frame
on a South facing roof enables the
system to be oriented to the North.
• Installation instructions are provided in
the Rinnai Frame Installation Manual.
Figure 28 - Side Pitch Roof Frames
• These comprise a split system flat roof
frame and a side/reverse pitch kit.
• They can be used when the Collectors
need to be installed side on to the
direction the roof is facing.
• For example, using a side pitch frame on
an East or West facing roof to enables
the system to be oriented to the North.
• Installation instructions are provided in
the Rinnai Frame Installation Manual.
