Rinnai Australia - 12 - Solar Split Systems Operating / Installation Manual - Version 9 - 21/11/12
GLASS LINED GAS BOOSTED CYLINDERS

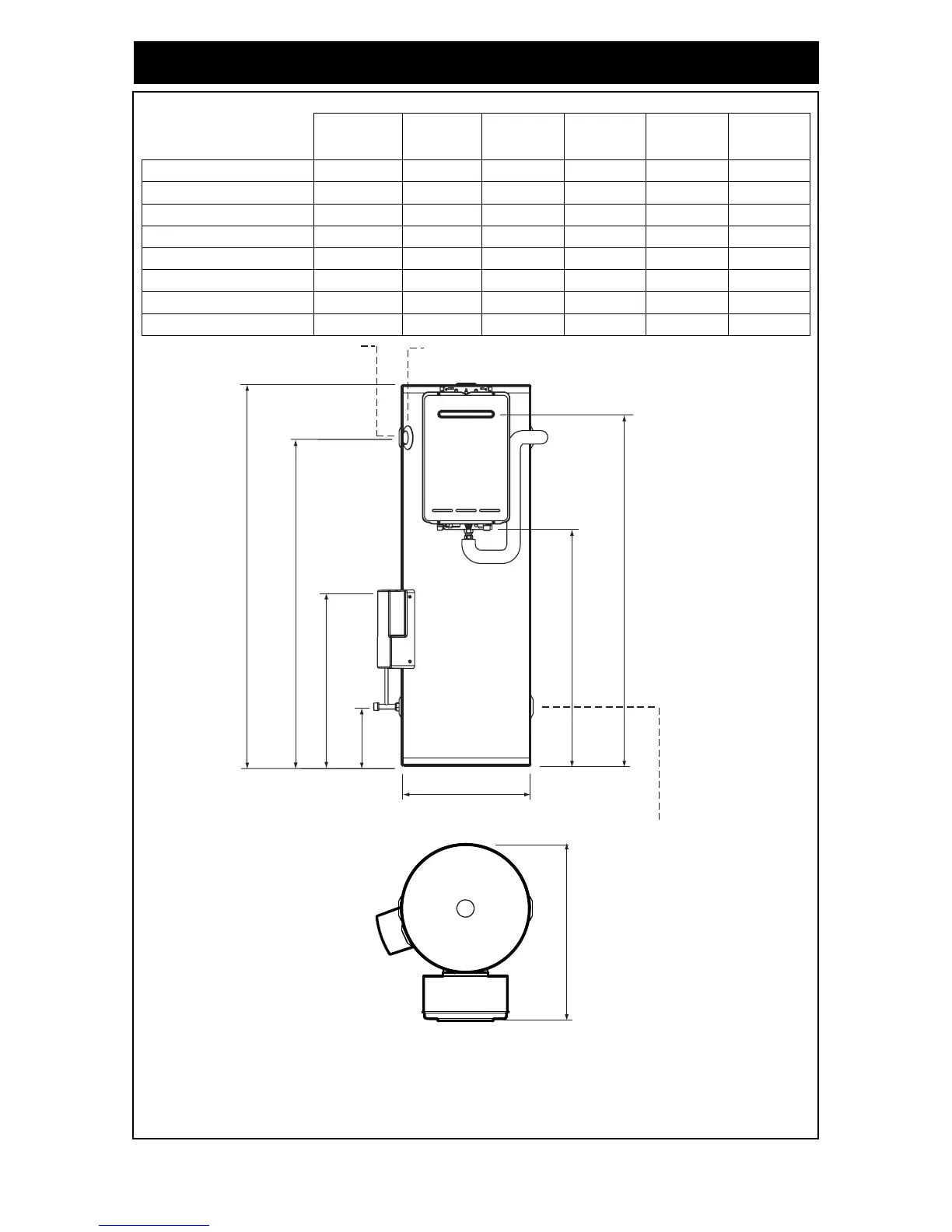

Figure 5 - Dimensional Drawing - Glass Lined Gas Boosted Split Systems
SG175
ESG175
SG215
ESG215
SG270SL
ESG270SL
SG270
ESG270
SG320SL
ESG320SL
SG340
ESG340
Cylinder Height 1530 1825 1475 1265 1695 1510
PTR / Solar Return 1310 1605 1215 985 1430 1200
Flow line to collectors 665 665 540 700 540 700
Cold Water Inlet 225 225 90 225 90 225
Gas Supply & Hot Water Outlet 940 1235 885 675 1105 920
Gas Booster Flue Outlet 1400 1695 1345 1135 1565 1380
Diameter 515 515 625 685 625 685
Weight Empty (kg) 66 88 91 95 107 103
TEMPERATURE SENSOR
DRY WELL
P&TR / SOLAR RETURN
GAS SUPPLY AND
HOT WATER OUTLET
GAS BOOSTER FLUE OUTLET
COLD
WATER
INLET
CYLINDER HEIGHT
P&TR VALVE
SOLAR
RETURN
FLOW LINE TO COLLECTORS
SYSTEM DEPTH
CYLINDER DIAMETER
SPECIFICATIONS FOR STORAGE CYLINDERS
