STANDARD INSTALLATION
Collector Mounting Component Pre Assembly for a Standard Installation
• Assemble the collector rail components as shown in Figure 18 below.
• Only loosely attach the collector retainers to the rails.

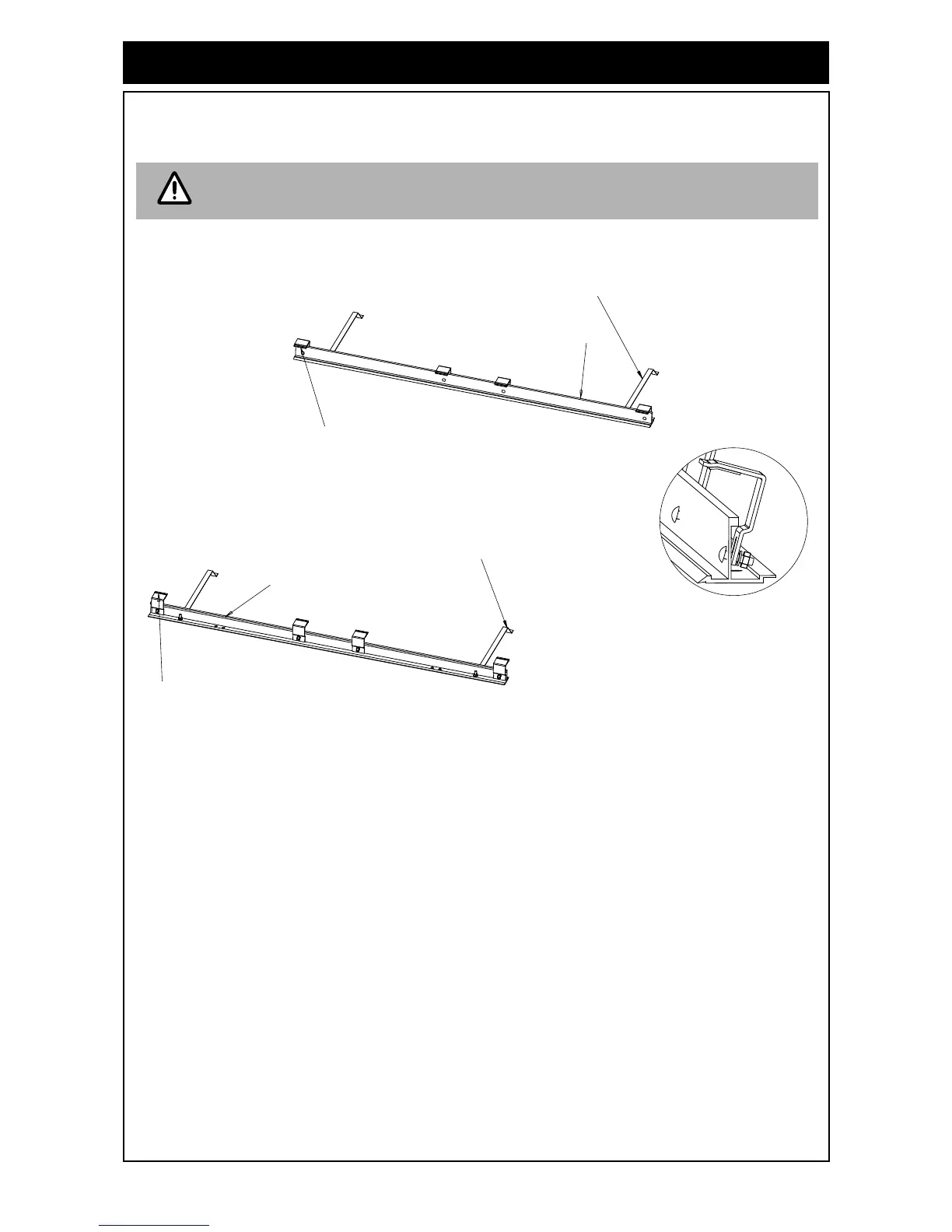

Figure 18 - Collector Mounting Components
This installation is not suitable for use in cyclonic areas. For further details, please
contact your local Rinnai Solar distributor.
