Rinnai Australia - 33 - Solar Split Systems Operating / Installation Manual Version 9 - 21/11/12
If the gas booster is not mounted on the storage cylinder, ensure that the wall or structure on which it
is to be mounted are capable of supporting the weight of the appliance and associated pipe work.
Refer to Table 4 for individual gas booster weights. For gas boosters installed on elevated structures
or under floors specific requirements apply, refer to AS/NZS 5601 for details.
Location of gas booster flue terminal must be in accordance with Figure 6.2 of AS/NZS 5601.

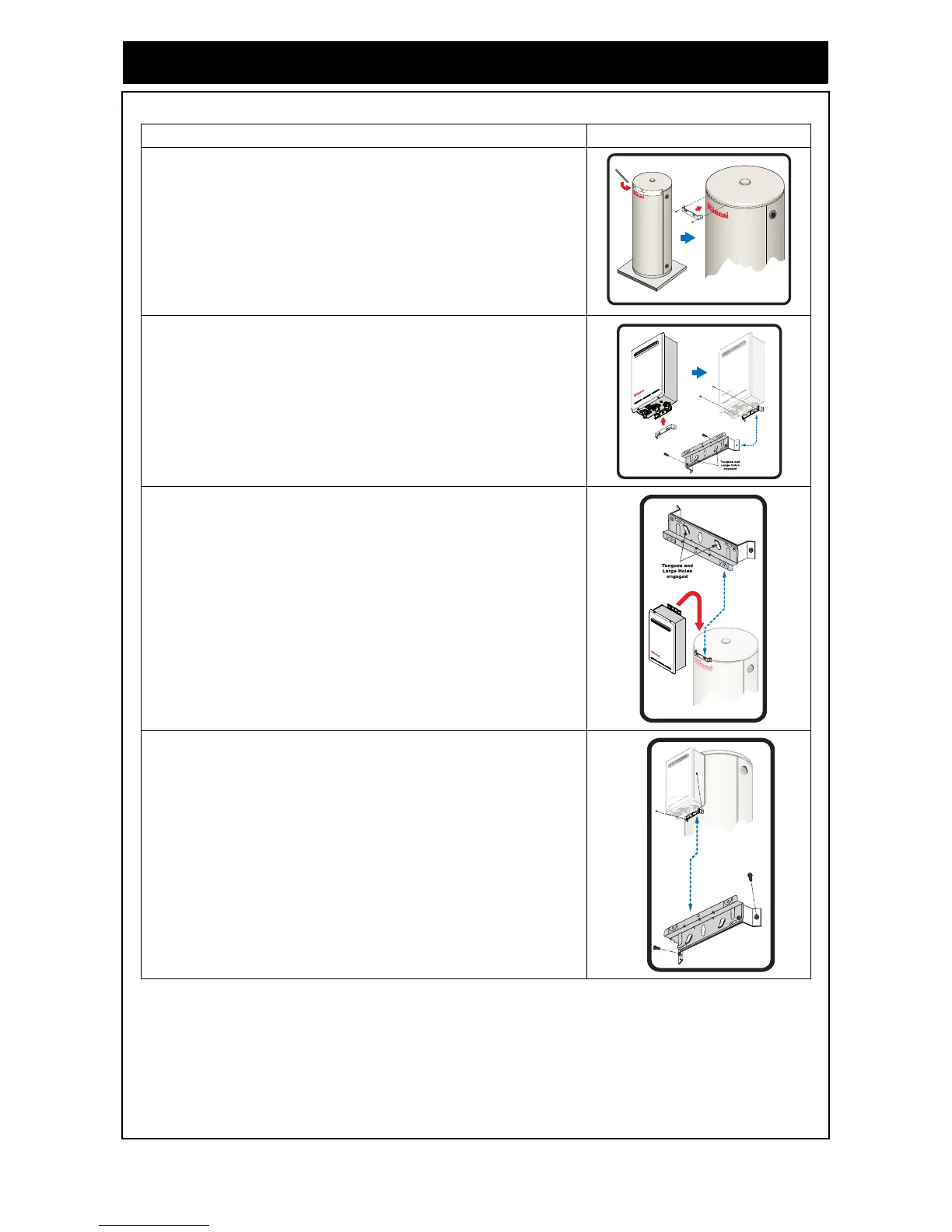

Table 9 - GAS BOOSTER MOUNTING Glass Lined
Step 1. Mount upper mounting bracket using template provided.
(SG175, ESG175 & SG215, ESG215 are factory mounted).
Step 2. Fix lower mounting bracket to Booster using screws
provided.
Step 3. Hang booster on bracket and secure with screws provided.
Step 4. Secure lower mounting bracket to cylinder using screws
provided.
INSTALLATION & MAINTENANCE - GAS BOOSTED SYSTEMS
