Operator Manual Rev 2.00
Page 7 AXLE-612-200
RF System
1.7 RF System
Setting up RF Antenna
To setup the clicker system plug in the 8 pin M12 connector cable to the
controller and RF antenna box. There are a few things to note:
The RF receiver box should be mounted in such a way that the front door of the
antenna enclosure is facing oncoming traffic.
The 9 foot RF cable should not be coiled up as this can reduce the range of the
key fob operation.

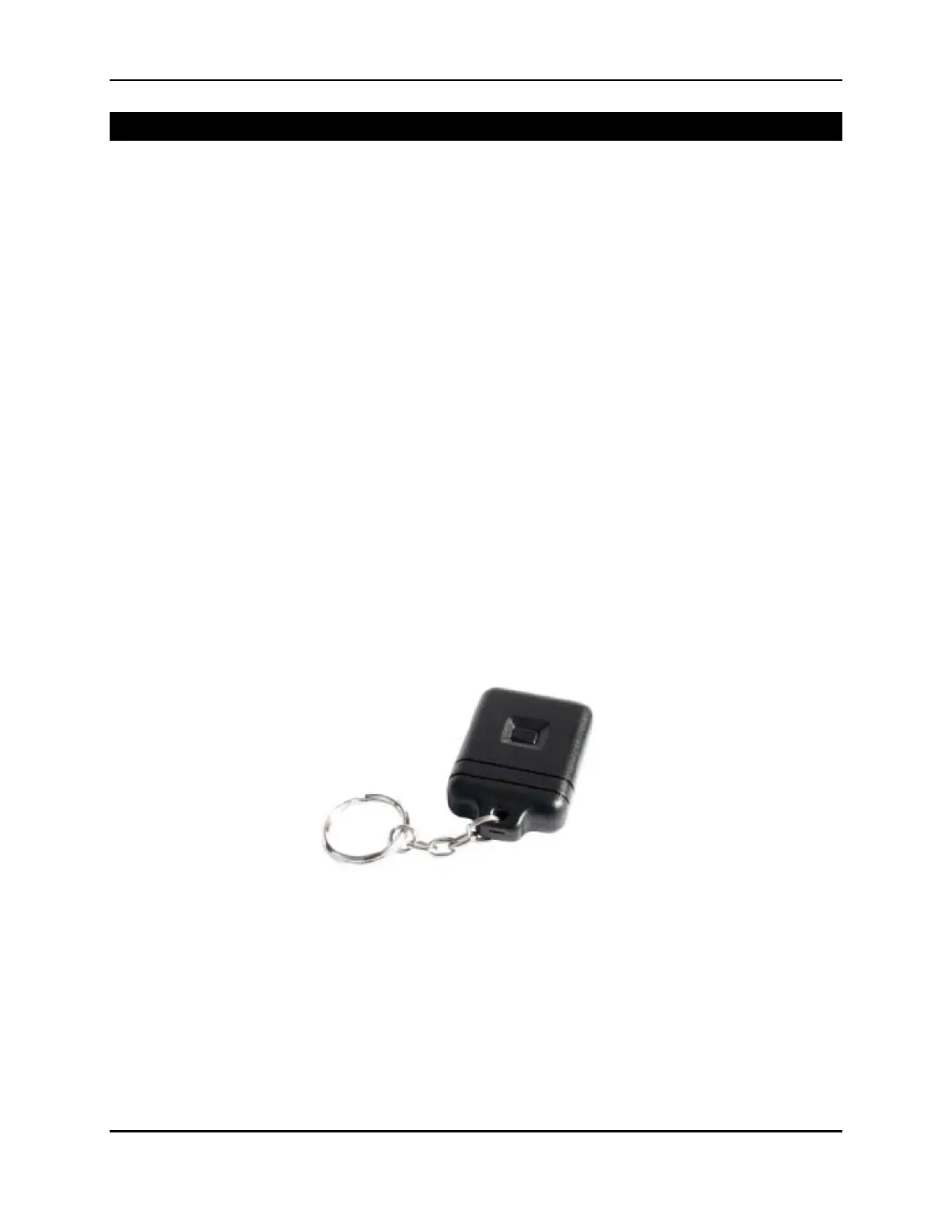

The remote clicker has a small red LED that lights when pressed. When pressing
the key fob you should be somewhere in the range of 75-150 feet from the
antennae system. If the “GREEN” traffic light does not illuminate on the controller
than check to see if the small red light on the key fob lights.
